1994 Northridge-01, Rinaldi Receiving Sta

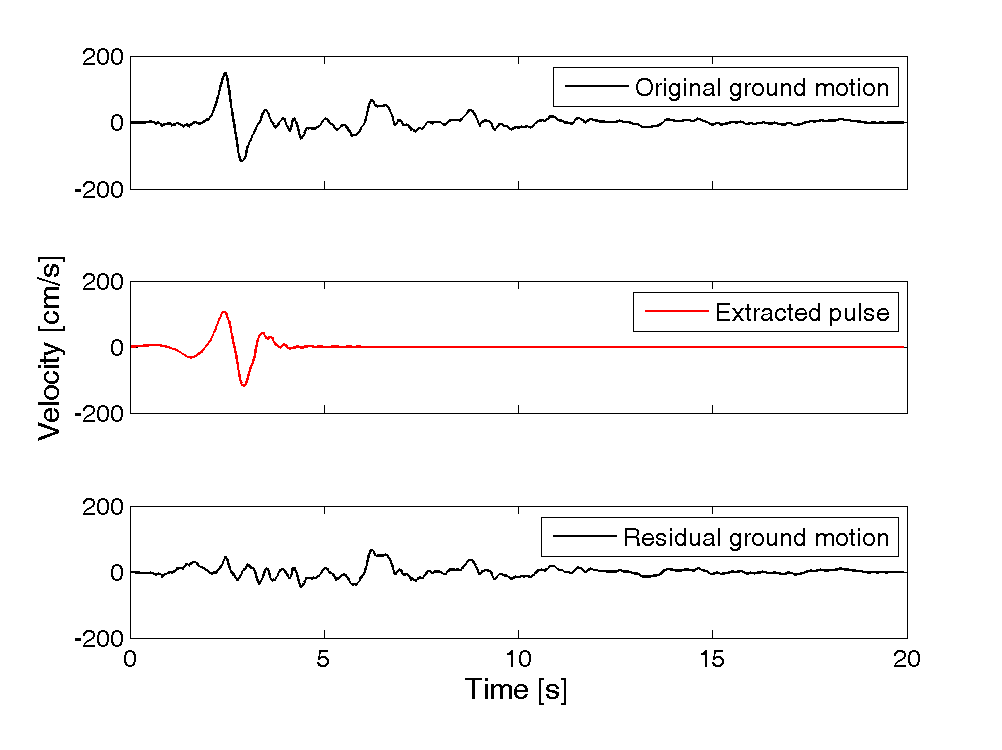

Plots of original ground motion, extracted pulse, and residual ground motion:

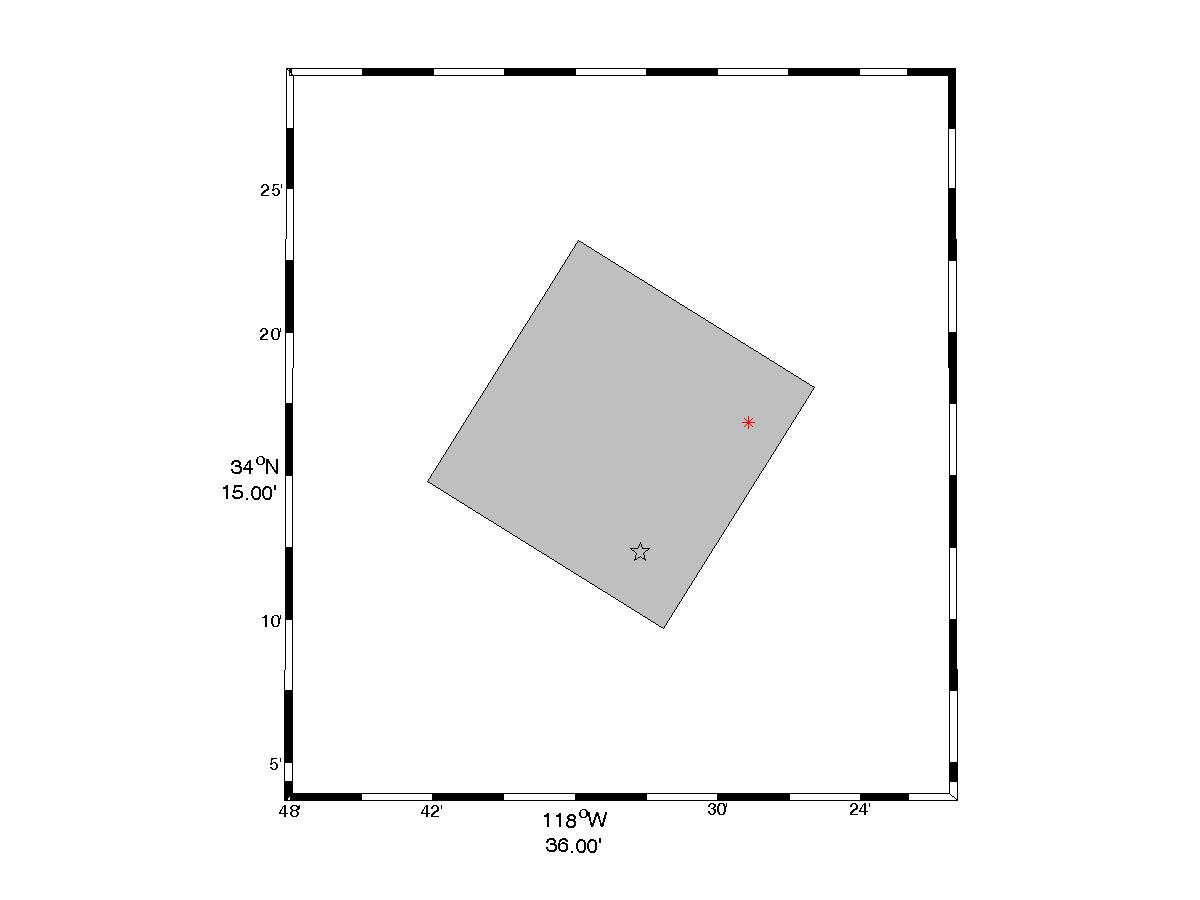

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 1063

Magnitude = 6.7
Closest Distance = 6.5 km
Hypocentral Distance = 20.62 km
Vs30 = 282 m/s
Mechanism = Reverse-oblique

Tp = 1.25 s
PGV = 149.1 cm/s

Orientation of strongest pulse, relative to north = 209 degrees
Orientation of strongest pulse, relative to fault parallel = 87 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.08
s = 1.48 km
θ = 82.2

Y = 0.81
d = 19.5 km
φ = 18.3

IDP = 1.52
Rowshandel parameter = 0.29


Notes:
