1995 Kobe, Japan, Port Island (0 m)

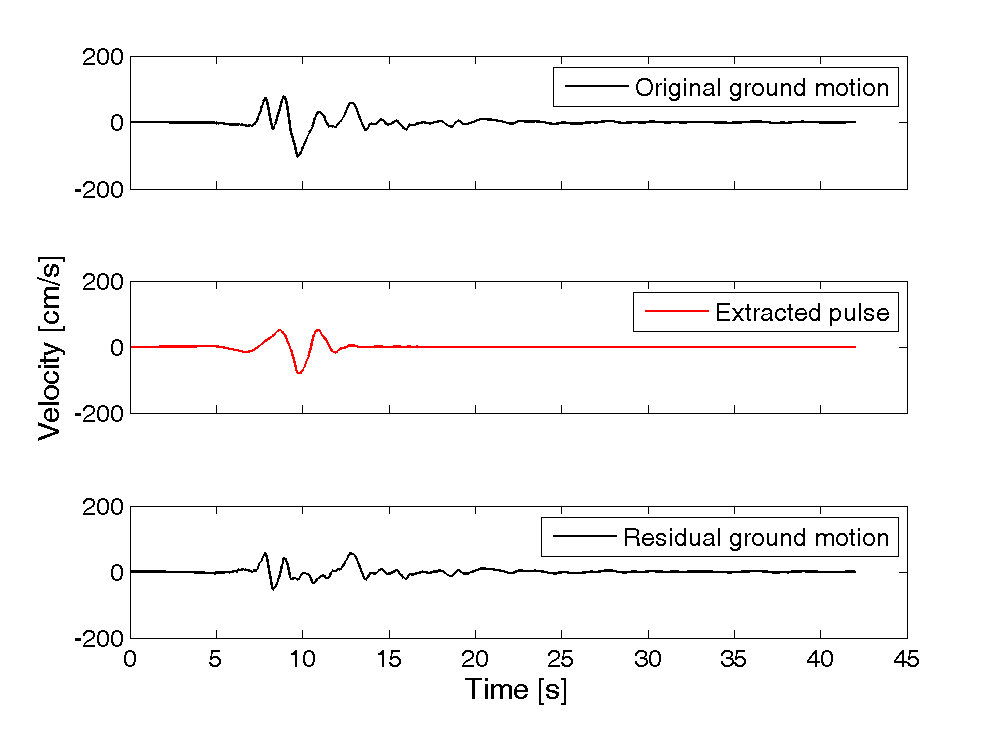

Plots of original ground motion, extracted pulse, and residual ground motion:

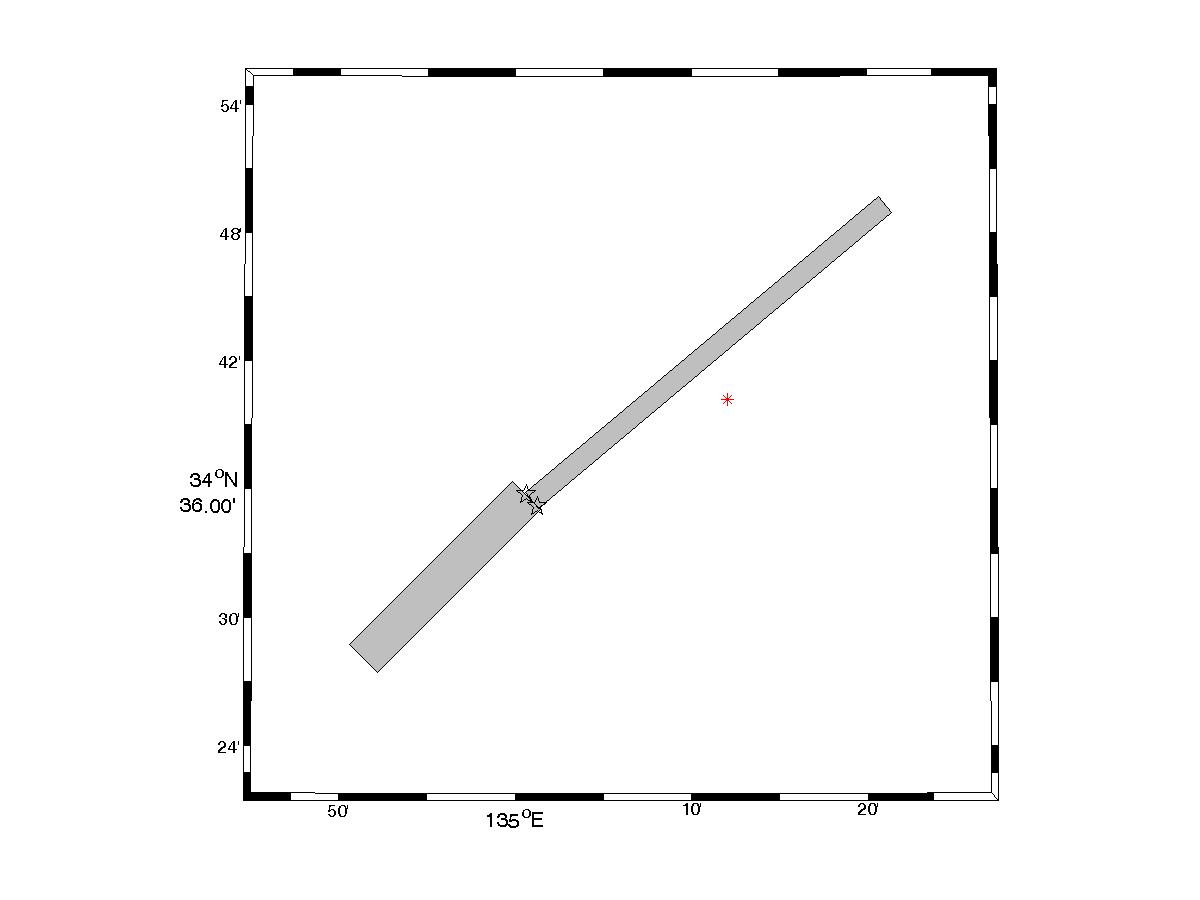

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 1114

Magnitude = 6.9
Closest Distance = 3.3 km
Hypocentral Distance = 26.28 km
Vs30 = 198 m/s
Mechanism = Strike slip

Tp = 2.83 s
PGV = 103 cm/s

Orientation of strongest pulse, relative to north = 332 degrees
Orientation of strongest pulse, relative to fault parallel = 78 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.31
s = 18.66 km
θ = 14.6

Y = 0.86
d = 17.77 km
φ = 19.4

IDP = 2.04
Rowshandel parameter = -0.24


Notes:
