1999 Kocaeli, Turkey, Izmit

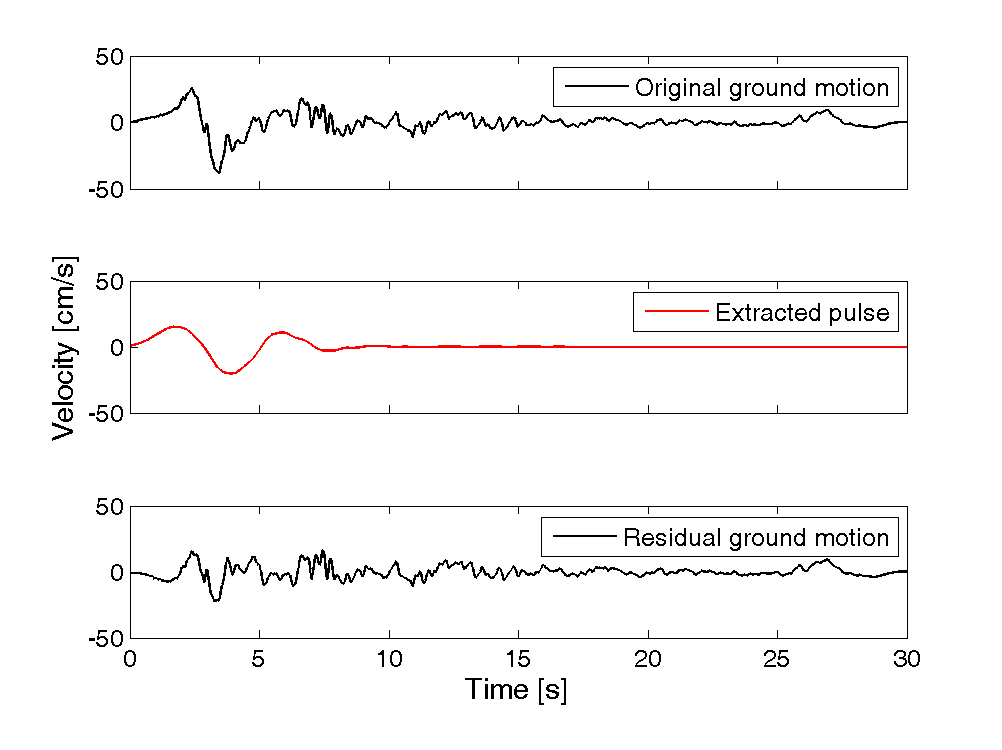

Plots of original ground motion, extracted pulse, and residual ground motion:

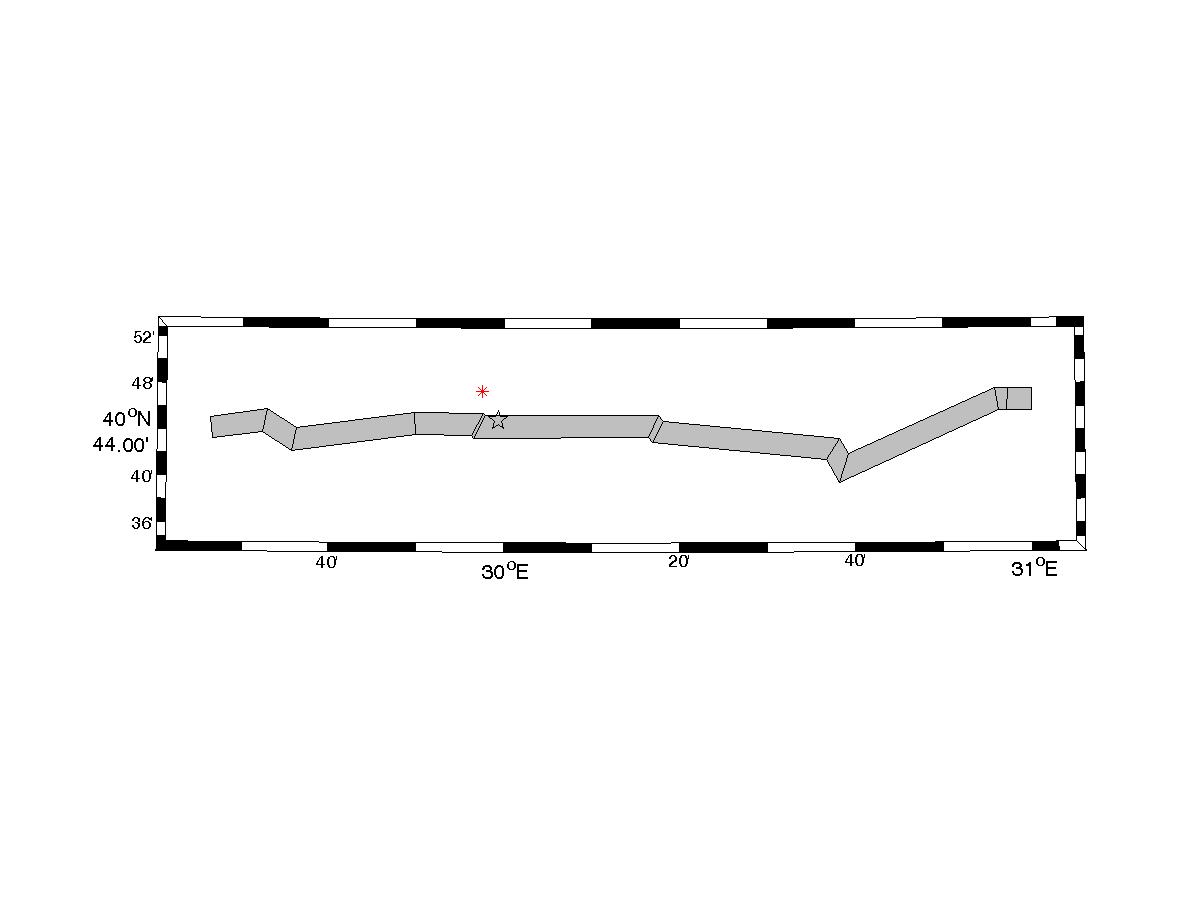

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 1165

Magnitude = 7.5
Closest Distance = 7.2 km
Hypocentral Distance = 16.86 km
Vs30 = 811 m/s
Mechanism = Strike slip

Tp = 5.37 s
PGV = 38.1 cm/s

Orientation of strongest pulse, relative to north = 265 degrees
Orientation of strongest pulse, relative to fault parallel = 5 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.02
s = 2.94 km
θ = 58.1

Y = 0.74
d = 15.05 km
φ = 6.8

IDP = 0.56
Rowshandel parameter = -0.7


Notes:
