1999 Chi-Chi, Taiwan, CHY101

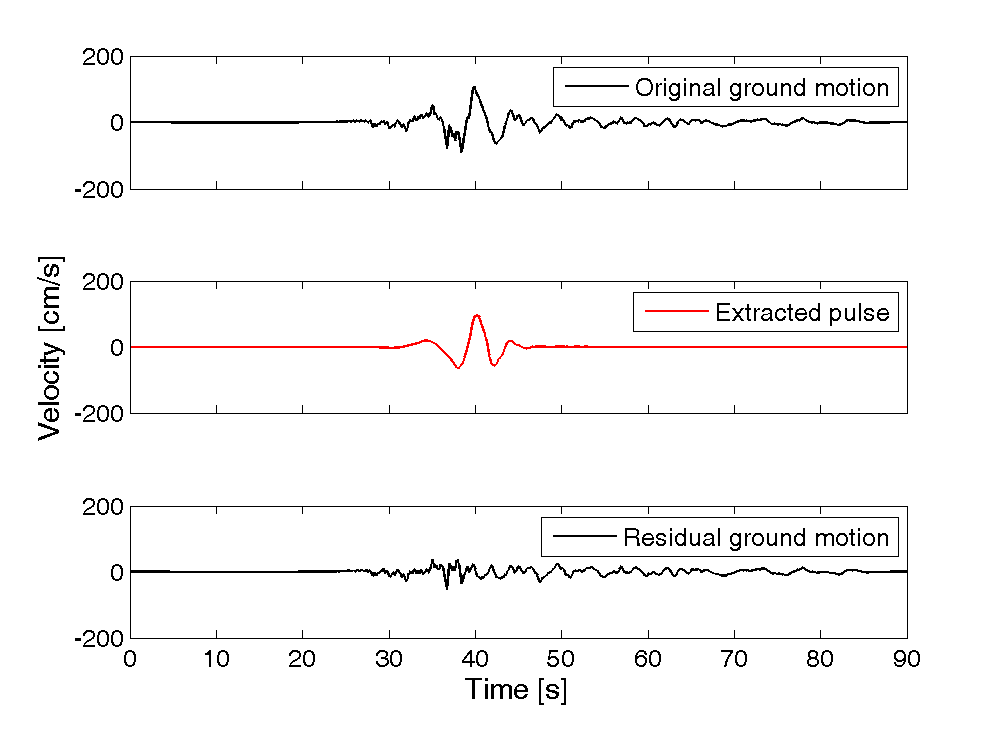

Plots of original ground motion, extracted pulse, and residual ground motion:

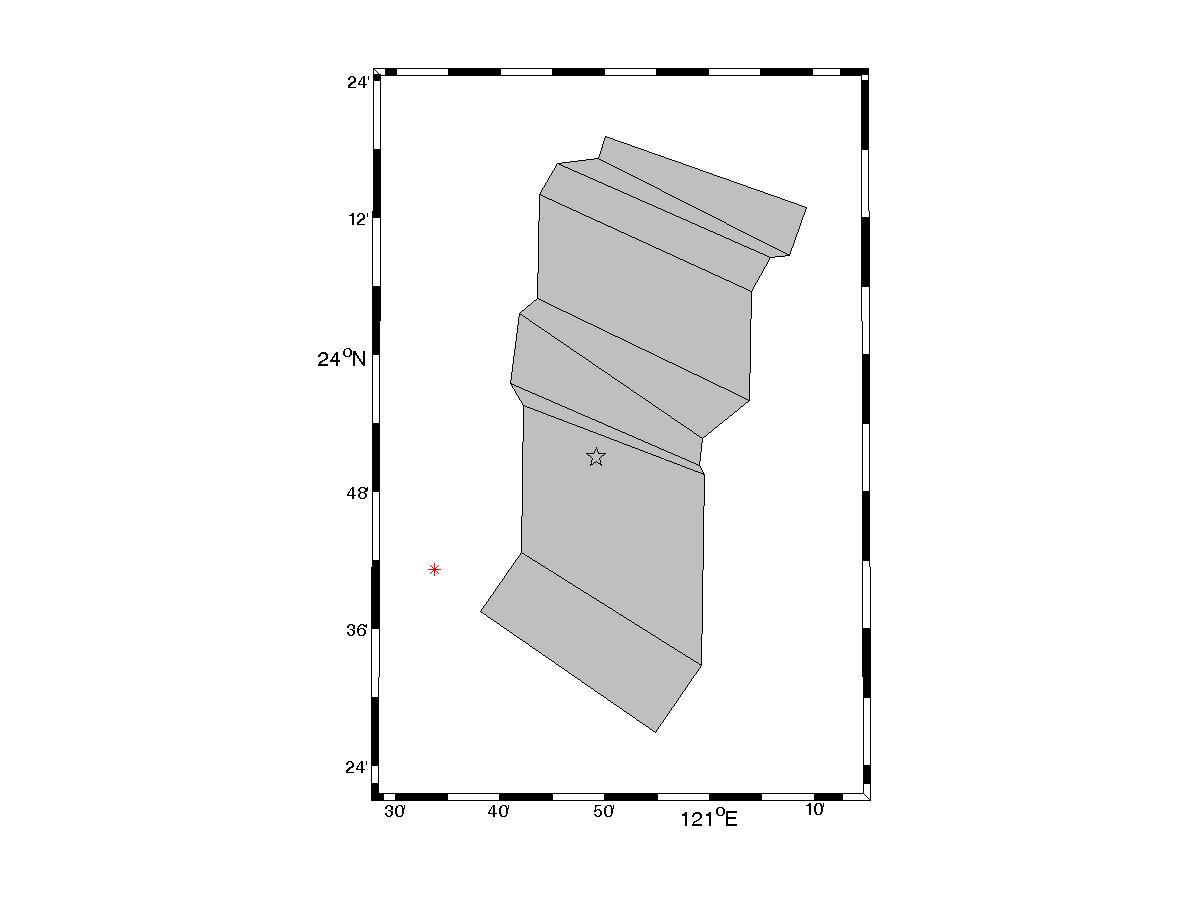

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 1244

Magnitude = 7.6
Closest Distance = 9.9 km
Hypocentral Distance = 32.95 km
Vs30 = 259 m/s
Mechanism = Reverse-oblique

Tp = 5.34 s
PGV = 108.9 cm/s

Orientation of strongest pulse, relative to north = 6 degrees
Orientation of strongest pulse, relative to fault parallel = 13 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.32
s = 29.51 km
θ = 58.7

Y = 0.3
d = 11.1 km
φ = 4.3

IDP = 0.46
Rowshandel parameter = -0.23


Notes:
