1999 Chi-Chi, Taiwan, TCU017

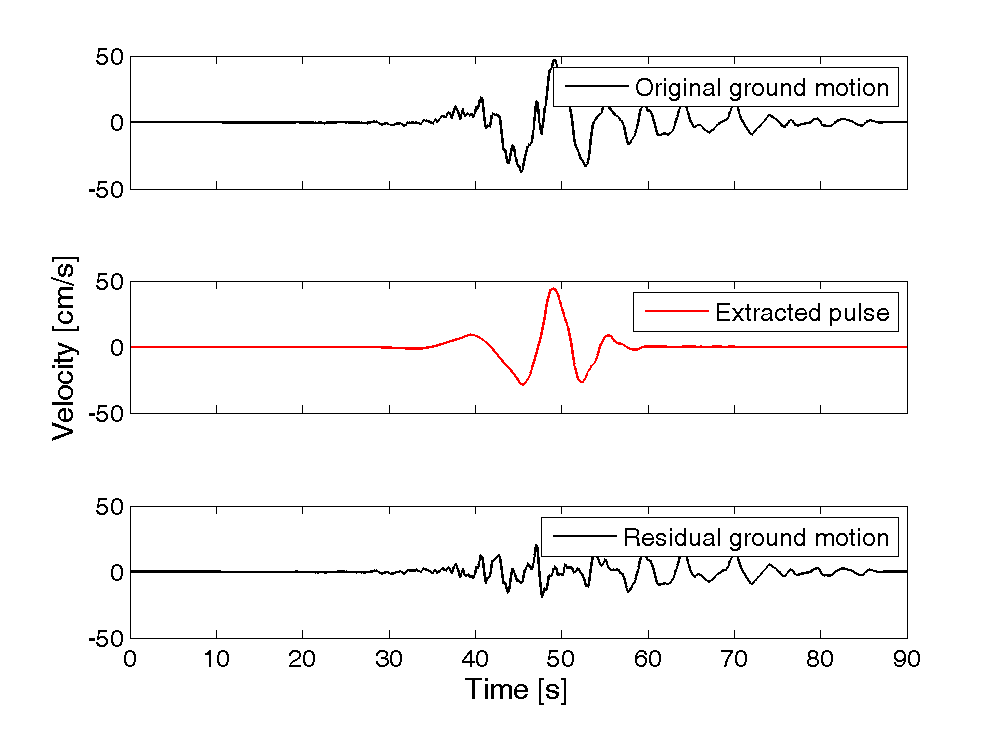

Plots of original ground motion, extracted pulse, and residual ground motion:

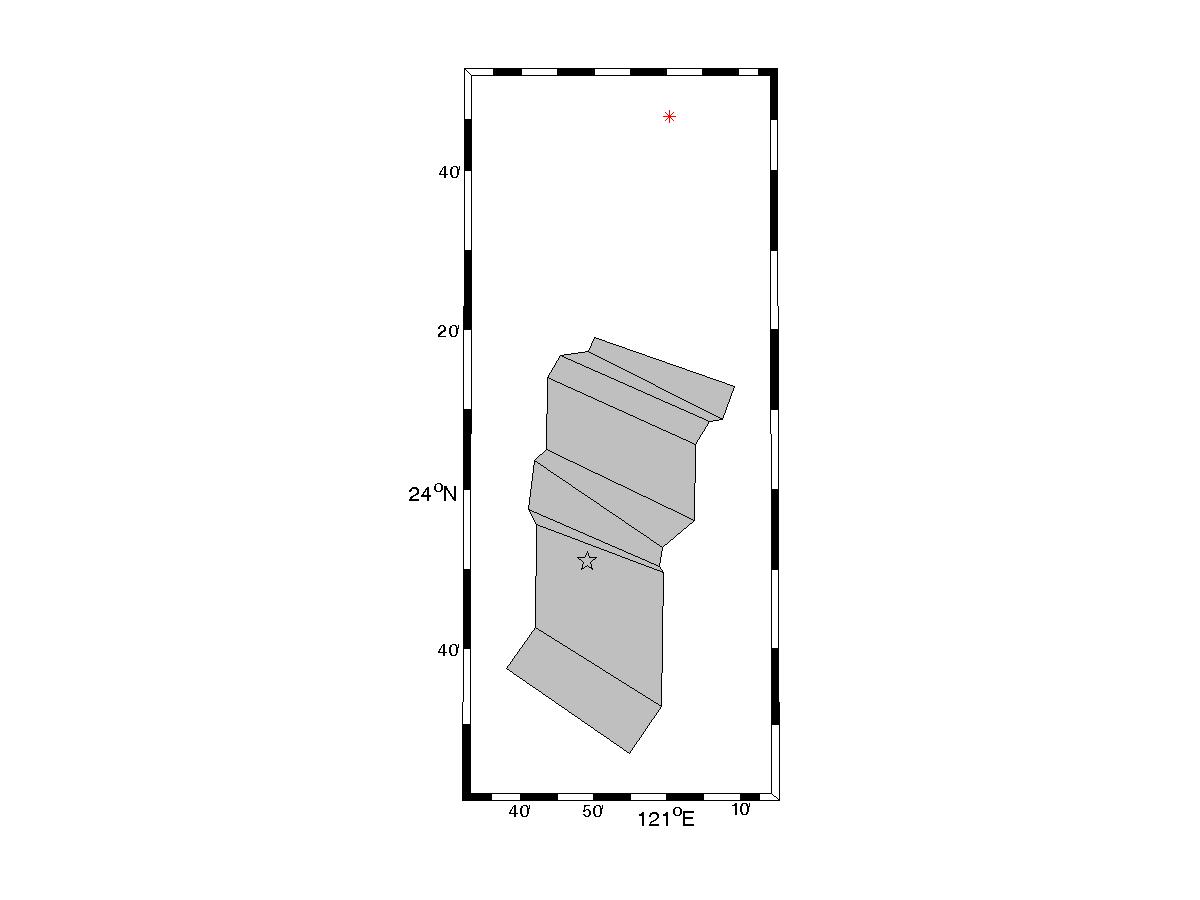

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 1472

Magnitude = 7.6
Closest Distance = 54.3 km
Hypocentral Distance = 105.6 km
Vs30 = 559 m/s
Mechanism = Reverse-oblique

Tp = 8.67 s
PGV = 47.5 cm/s

Orientation of strongest pulse, relative to north = 59 degrees
Orientation of strongest pulse, relative to fault parallel = 23 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 0


Comments:

A little distant, lots more cycles after the pulse

Directivity parameters:


X = 0.62
s = 56.01 km
θ = 27.7

Y = 0.4
d = 14.68 km
φ = 1.1

IDP = 2.71
Rowshandel parameter = 0.31


Notes:
