1999 Chi-Chi, Taiwan, TCU040

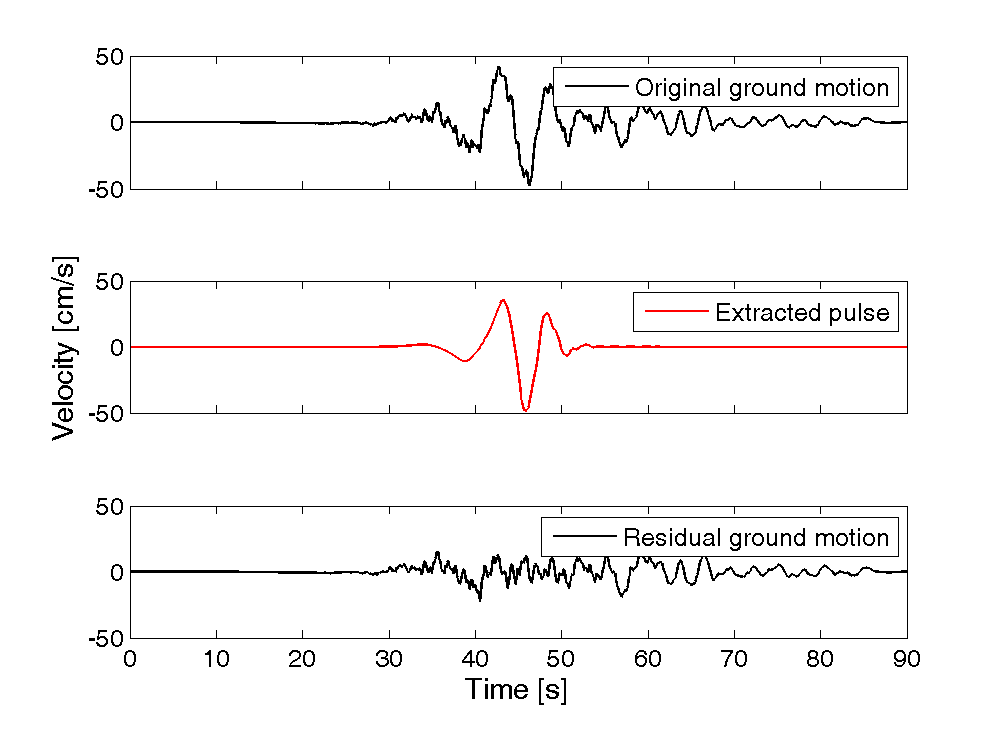

Plots of original ground motion, extracted pulse, and residual ground motion:

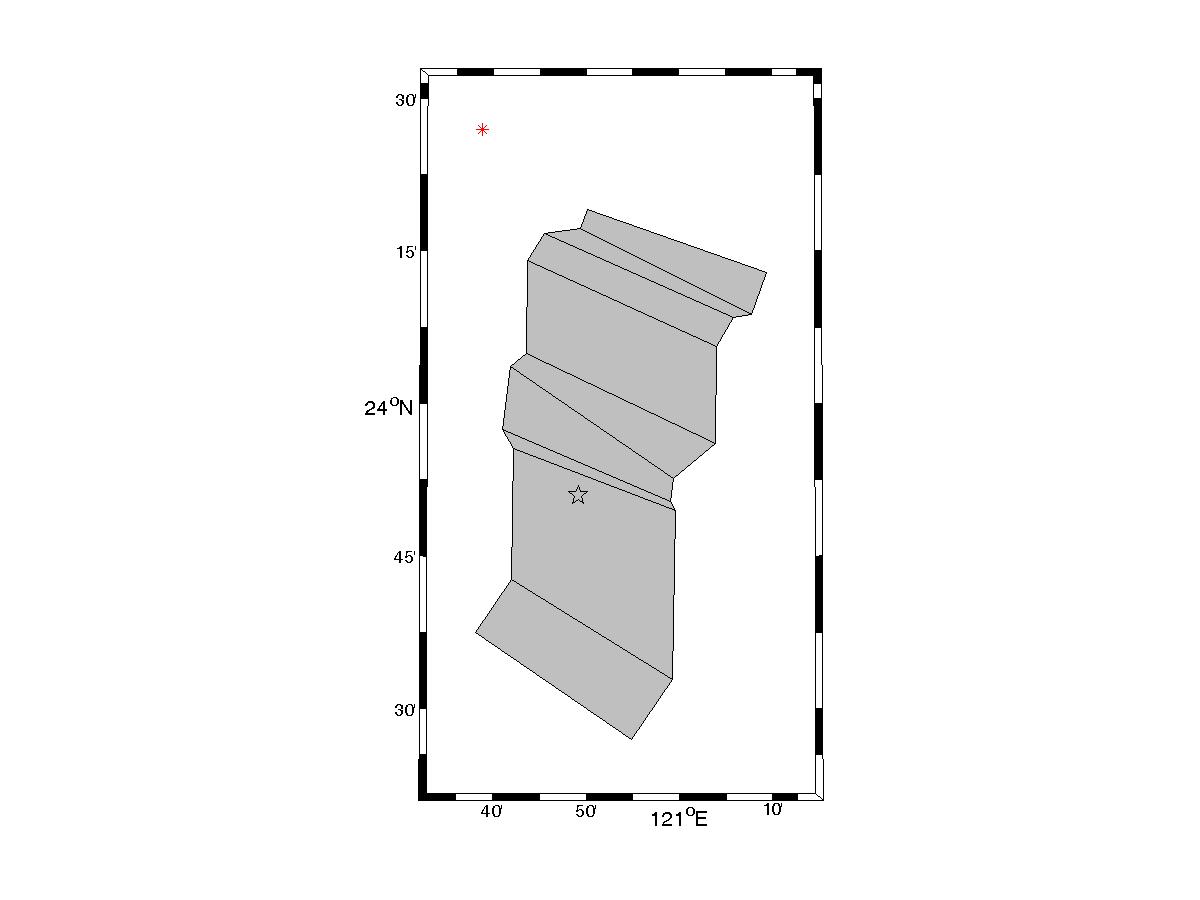

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 1483

Magnitude = 7.6
Closest Distance = 22.1 km
Hypocentral Distance = 69.51 km
Vs30 = 362 m/s
Mechanism = Reverse-oblique

Tp = 6.43 s
PGV = 47.6 cm/s

Orientation of strongest pulse, relative to north = 162 degrees
Orientation of strongest pulse, relative to fault parallel = 25 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.56
s = 50.72 km
θ = 43.3

Y = 0.4
d = 14.8 km
φ = 17.7

IDP = 3.16
Rowshandel parameter = 0.31


Notes:
