1999 Chi-Chi, Taiwan, TCU049

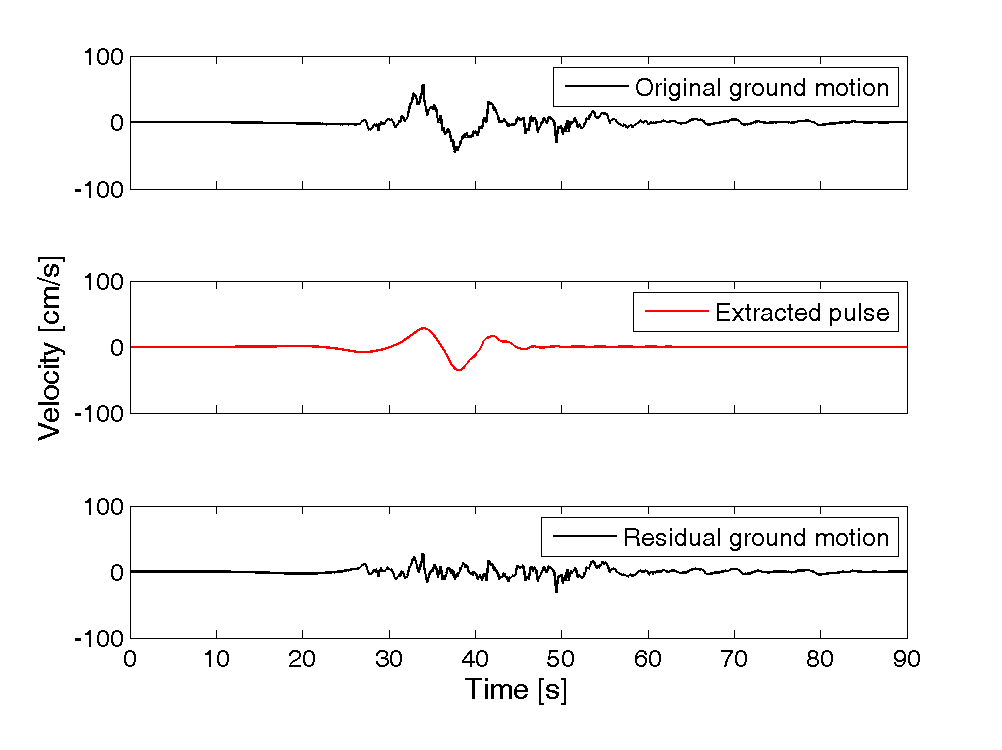

Plots of original ground motion, extracted pulse, and residual ground motion:

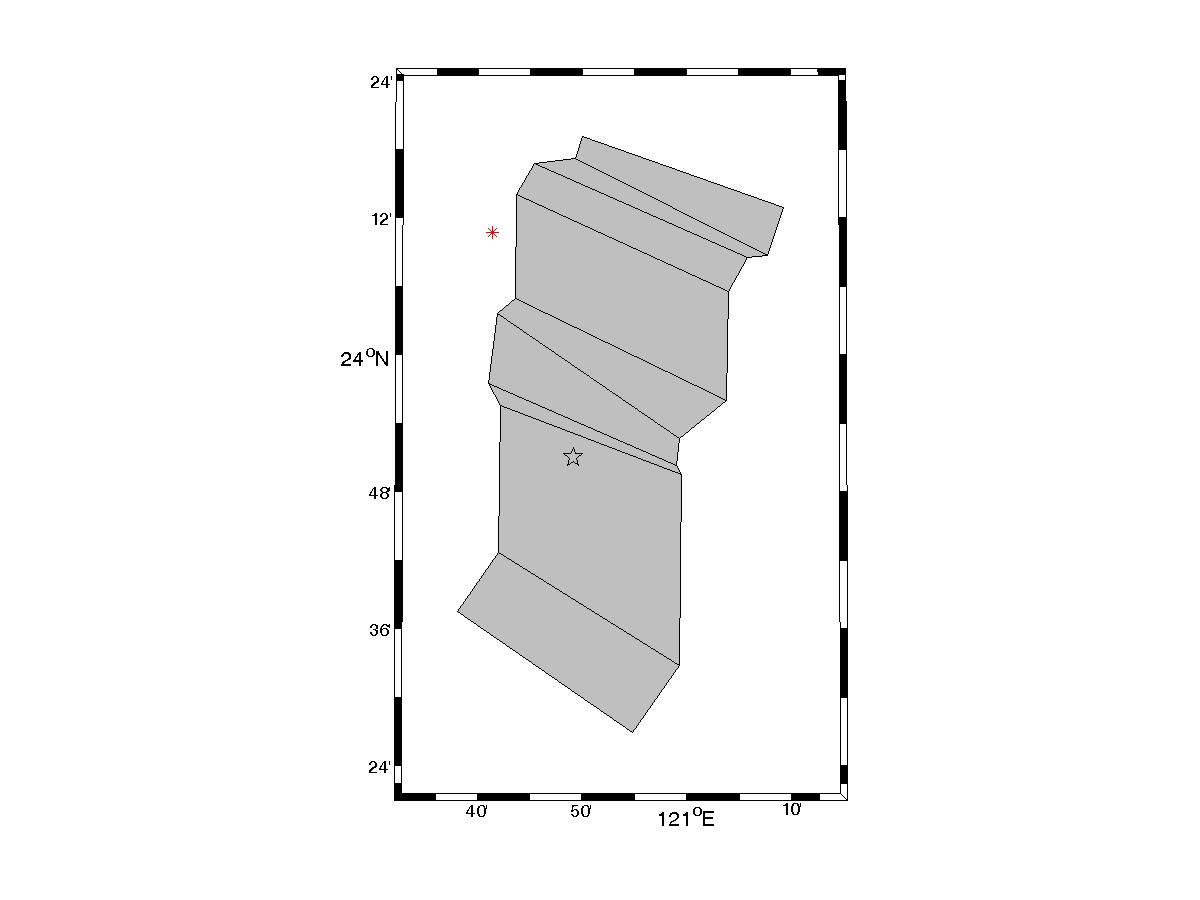

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 1489

Magnitude = 7.6
Closest Distance = 3.8 km
Hypocentral Distance = 39.73 km
Vs30 = 487 m/s
Mechanism = Reverse-oblique

Tp = 10.22 s
PGV = 56.5 cm/s

Orientation of strongest pulse, relative to north = 76 degrees
Orientation of strongest pulse, relative to fault parallel = 68 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.4
s = 36.71 km
θ = 42.7

Y = 0.4
d = 14.8 km
φ = 10.4

IDP = 3.15
Rowshandel parameter = 0.1


Notes:
