1979 Coyote Lake, Gilroy Array #6

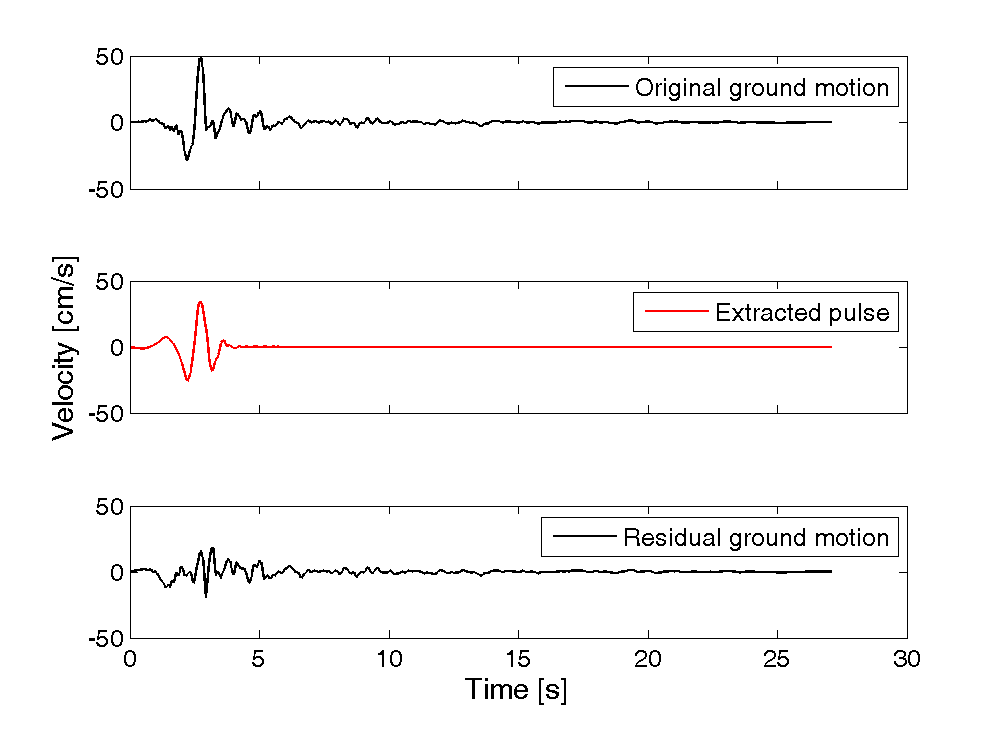

Plots of original ground motion, extracted pulse, and residual ground motion:

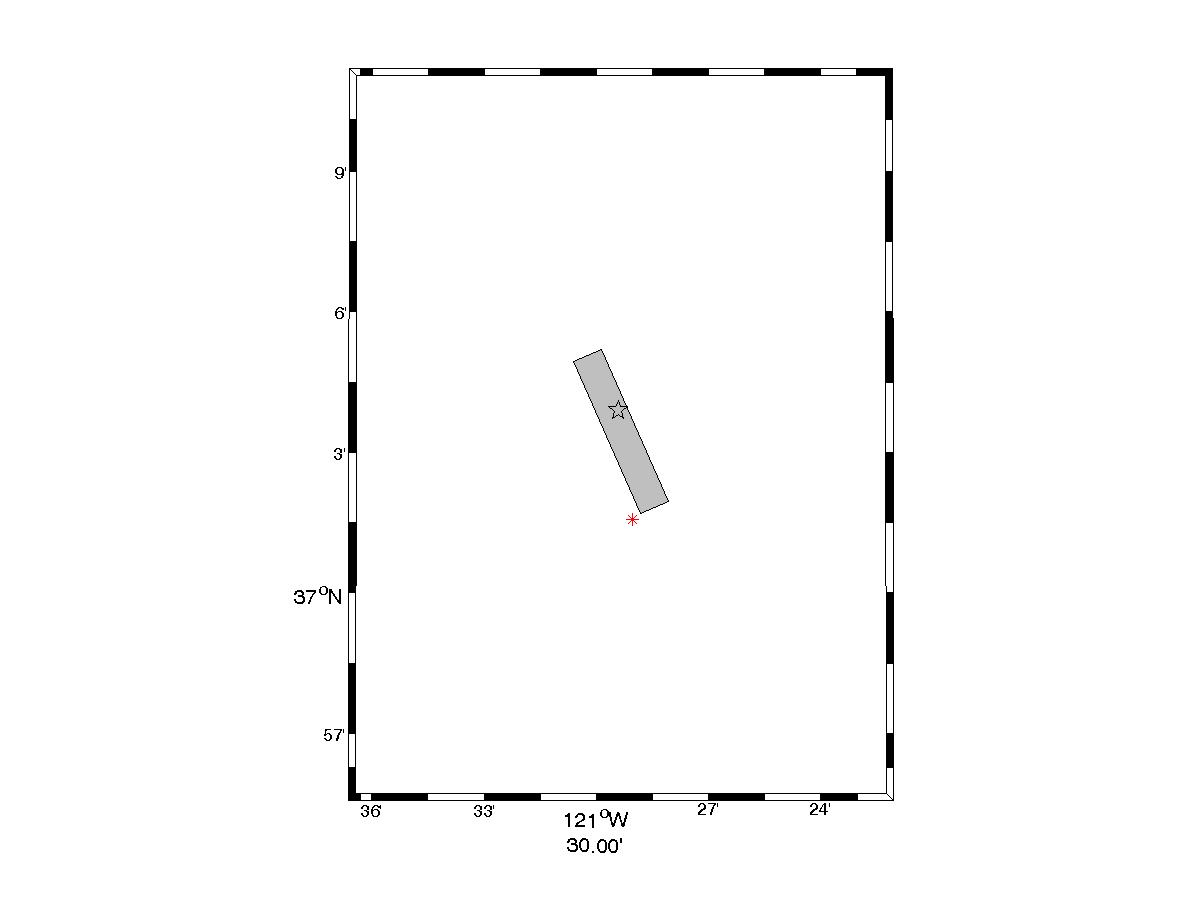

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 150

Magnitude = 5.7
Closest Distance = 3.1 km
Hypocentral Distance = 9.12 km
Vs30 = 663 m/s
Mechanism = Strike slip

Tp = 1.23 s
PGV = 49.6 cm/s

Orientation of strongest pulse, relative to north = 246 degrees
Orientation of strongest pulse, relative to fault parallel = 90 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.62
s = 4.1 km
θ = 17

Y = 0.71
d = 5 km
φ = 0.9

IDP = 0.84
Rowshandel parameter = 0.11


Notes:
