1999 Chi-Chi, Taiwan, TCU136

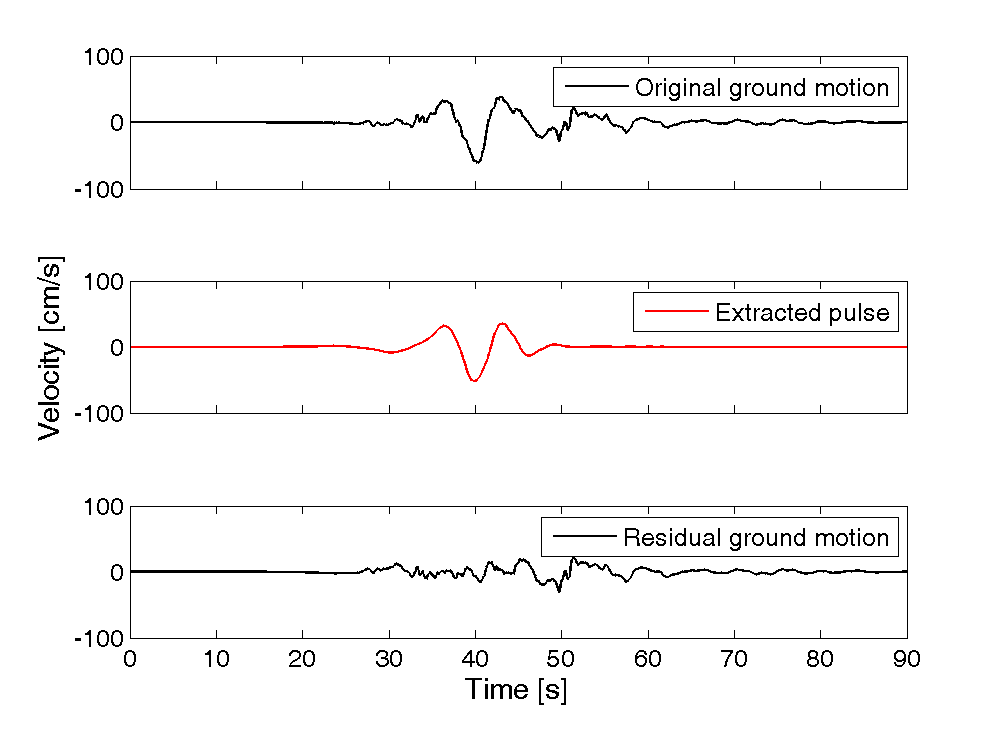

Plots of original ground motion, extracted pulse, and residual ground motion:

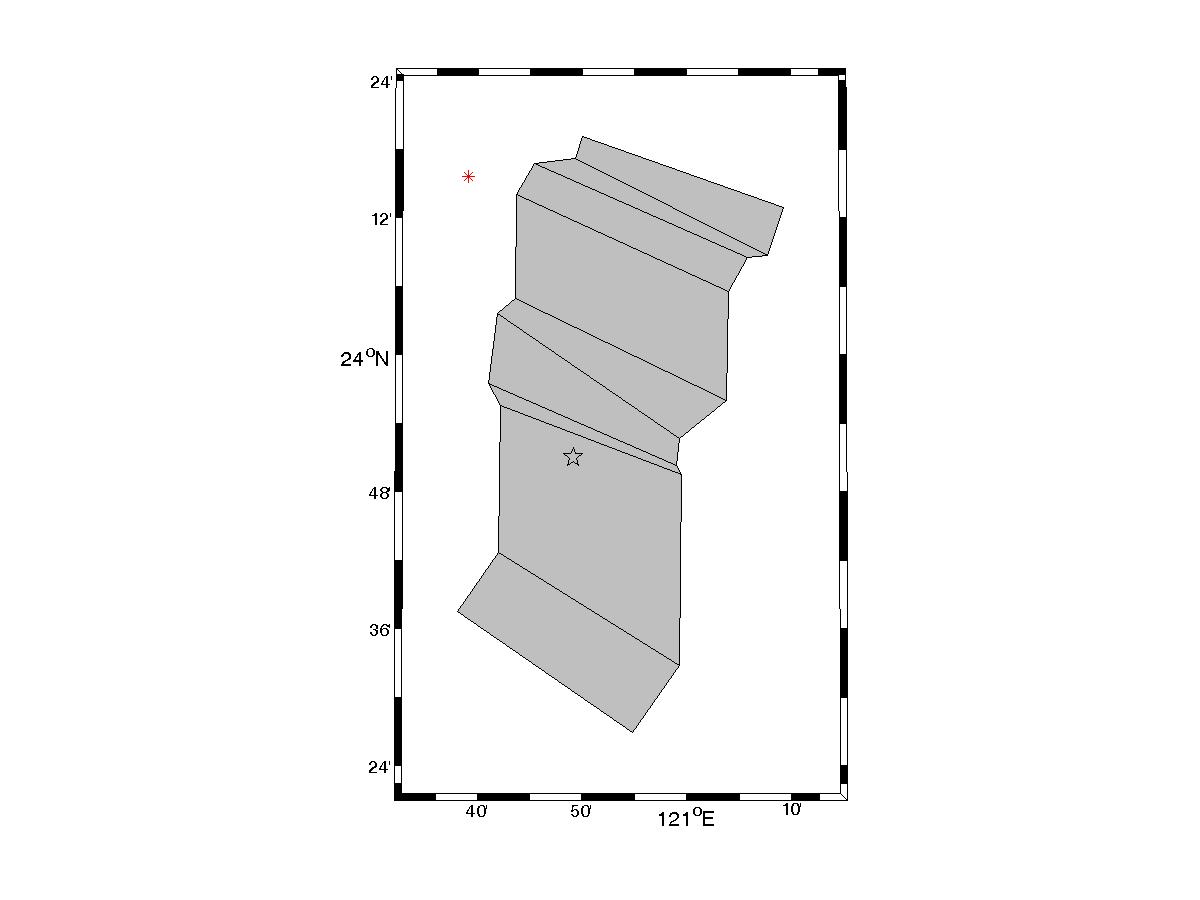

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 1550

Magnitude = 7.6
Closest Distance = 8.3 km
Hypocentral Distance = 49.4 km
Vs30 = 462 m/s
Mechanism = Reverse-oblique

Tp = 8.88 s
PGV = 61.5 cm/s

Orientation of strongest pulse, relative to north = 49 degrees
Orientation of strongest pulse, relative to fault parallel = 42 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.43
s = 39.24 km
θ = 42.6

Y = 0.4
d = 14.8 km
φ = 14.7

IDP = 3.14
Rowshandel parameter = 0.2


Notes:
