1986 Taiwan SMART1(40), SMART1 O06

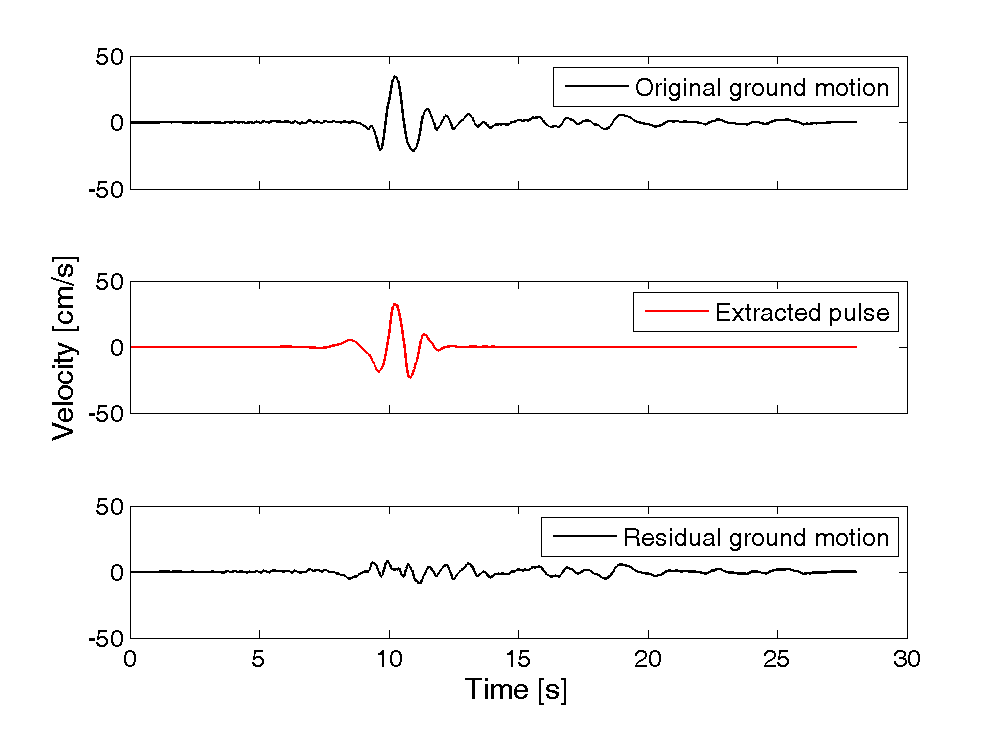

Plots of original ground motion, extracted pulse, and residual ground motion:

Map of epicenter, rupture extent and station location:

Ground motion information:

NGA Record Sequence Number 3657

Magnitude = 6.3
Closest Distance = 58.2 km
Hypocentral Distance = 68.34 km
Vs30 = 275 m/s
Mechanism = Reverse-oblique

Tp = 1.6 s
PGV = 34.3 cm/s

Orientation of strongest pulse, relative to north = 105 degrees
Orientation of strongest pulse, relative to fault parallel = 62 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 0


Comments:

Many SMART records are distant and on soft sites

Directivity parameters:


X = 0.69
s = 9.53 km
θ = 27.2

Y = 0.37
d = 4.42 km
φ = 29.5

IDP = Unknown
φ = Unknown


Notes:
