2004 Parkfield-02, CA, Parkfield - Fault Zone 9

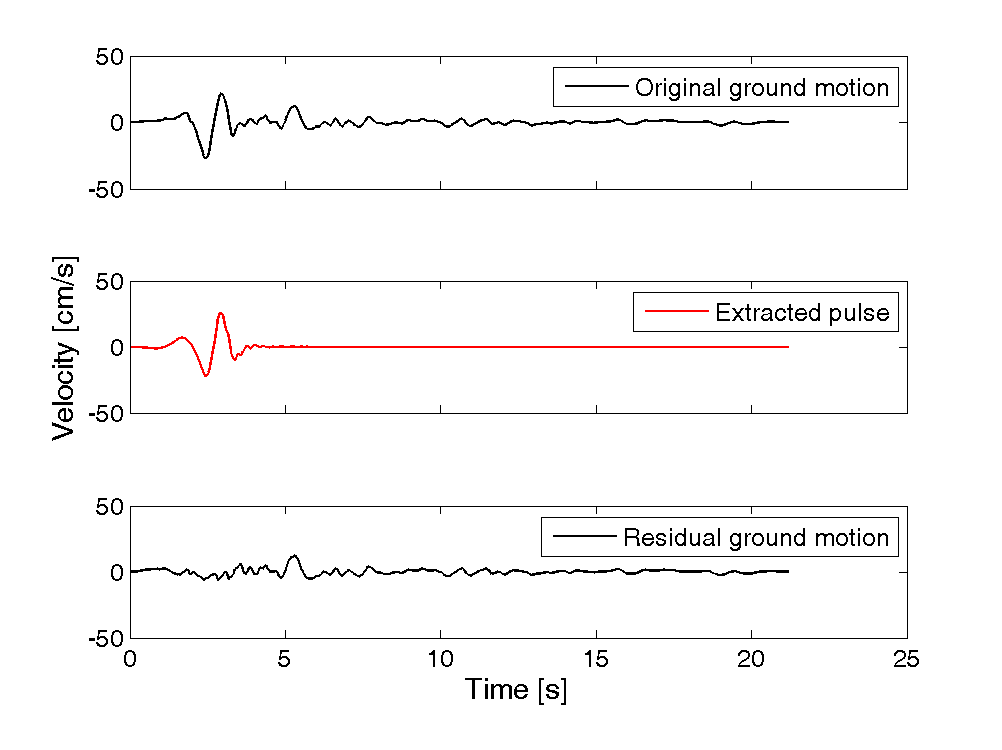

Plots of original ground motion, extracted pulse, and residual ground motion:

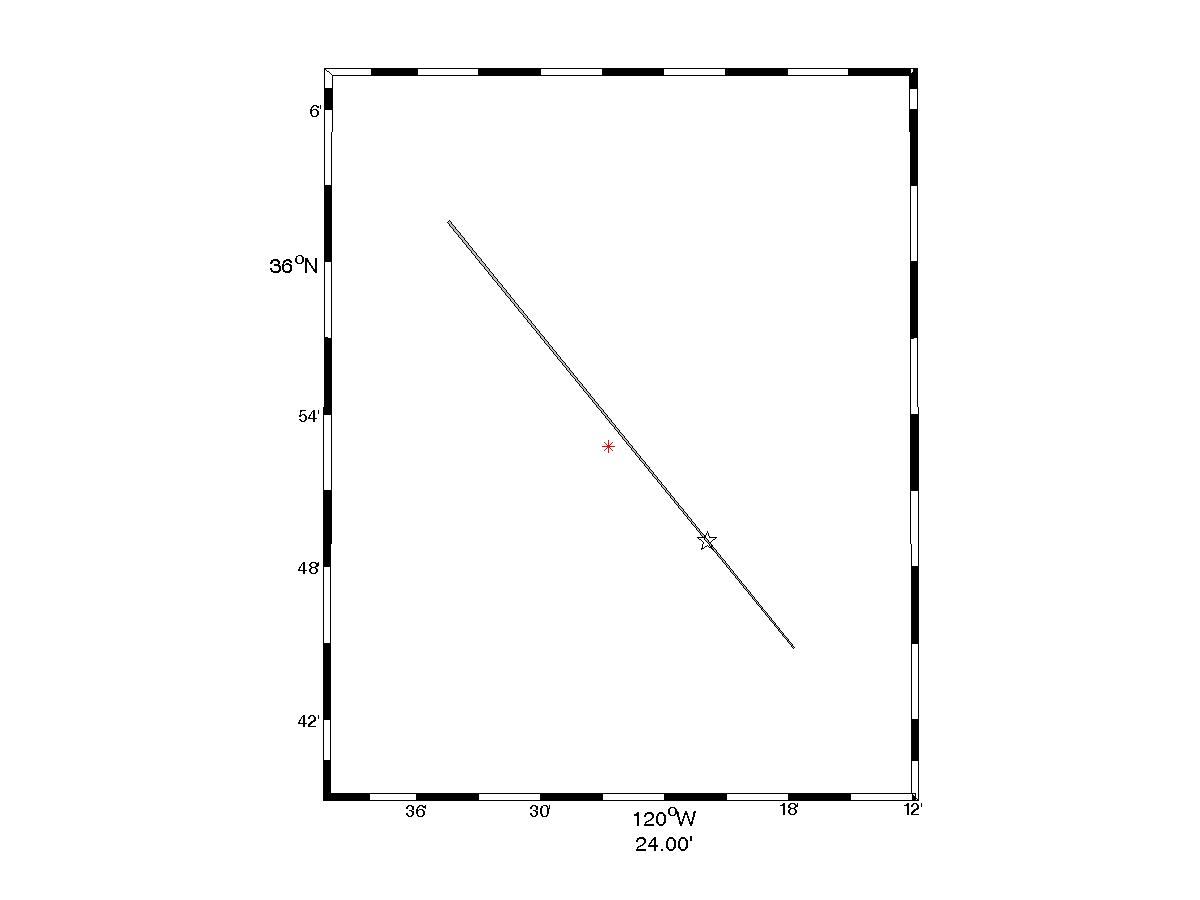

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 4113

Magnitude = 6
Closest Distance = 2.9 km
Hypocentral Distance = 12.86 km
Vs30 = 372 m/s
Mechanism = Strike slip

Tp = 1.13 s
PGV = 27 cm/s

Orientation of strongest pulse, relative to north = 63 degrees
Orientation of strongest pulse, relative to fault parallel = 78 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.25
s = 9.9 km
θ = 7.3

Y = 0.7
d = 5.6 km
φ = 9.9

IDP = 1.61
Rowshandel parameter = -0.44


Notes:
