2008 Wenchuan, China, Mianzuqingping

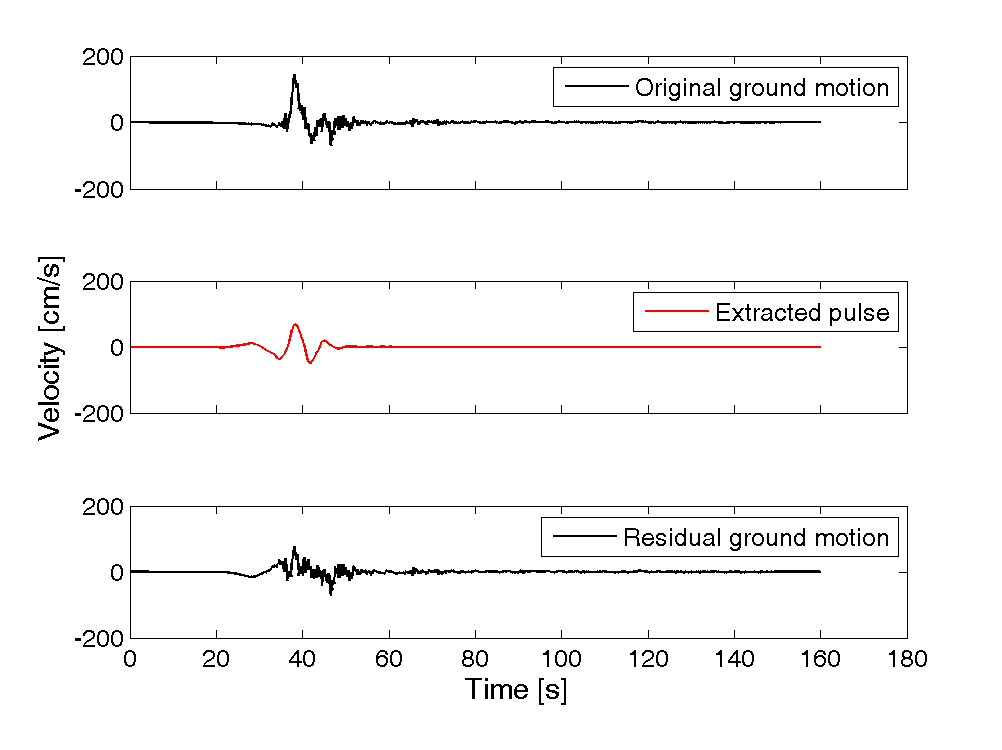

Plots of original ground motion, extracted pulse, and residual ground motion:

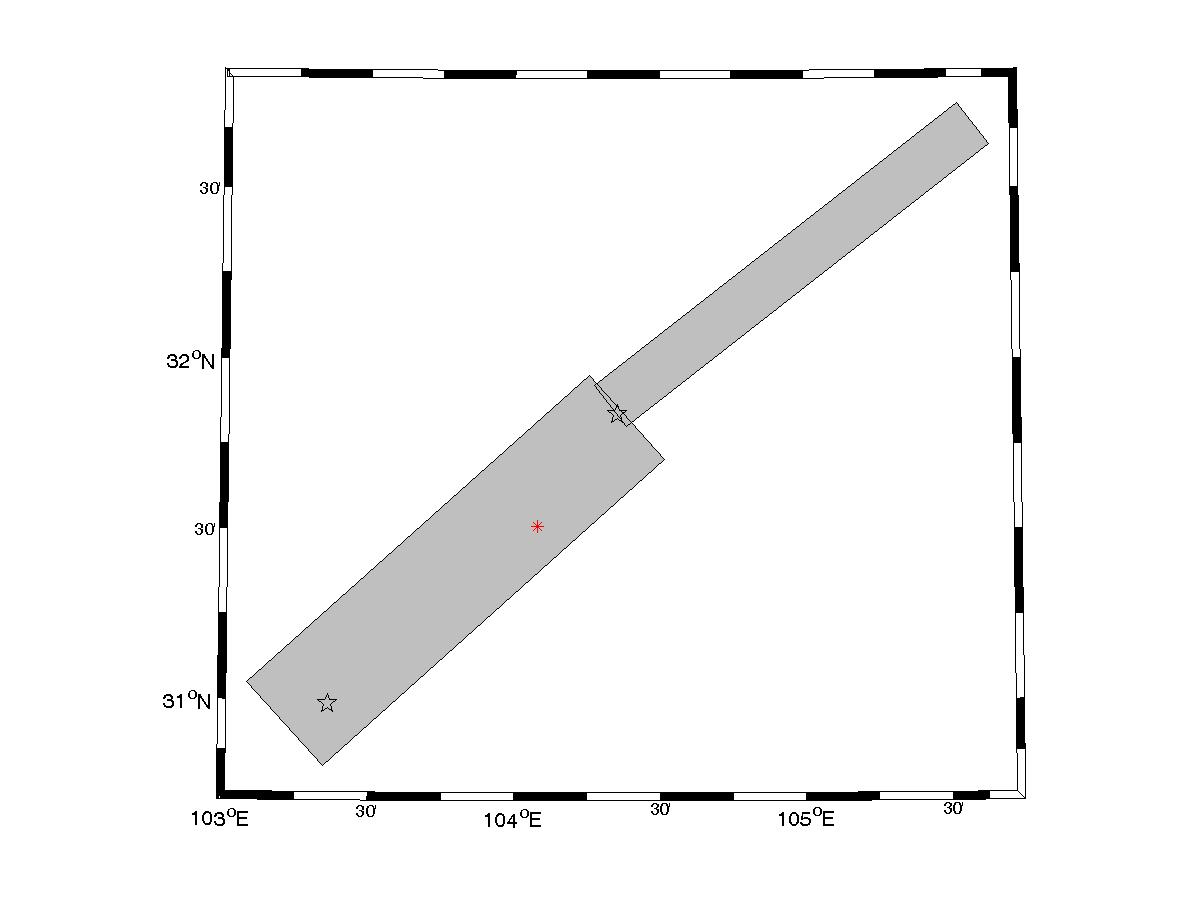

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 4816

Magnitude = 7.9
Closest Distance = 6.6 km
Hypocentral Distance = 90.3 km
Vs30 = 425 m/s
Mechanism = Reverse-oblique

Tp = 9.37 s
PGV = 144.5 cm/s

Orientation of strongest pulse, relative to north = 295 degrees
Orientation of strongest pulse, relative to fault parallel = 67 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.3
s = 89.7 km
θ = 1.8

Y = 0.22
d = 9.54 km
φ = 32.5

IDP = 1.84
Rowshandel parameter = -0.32


Notes:
