1986 San Salvador, National Geografical Inst

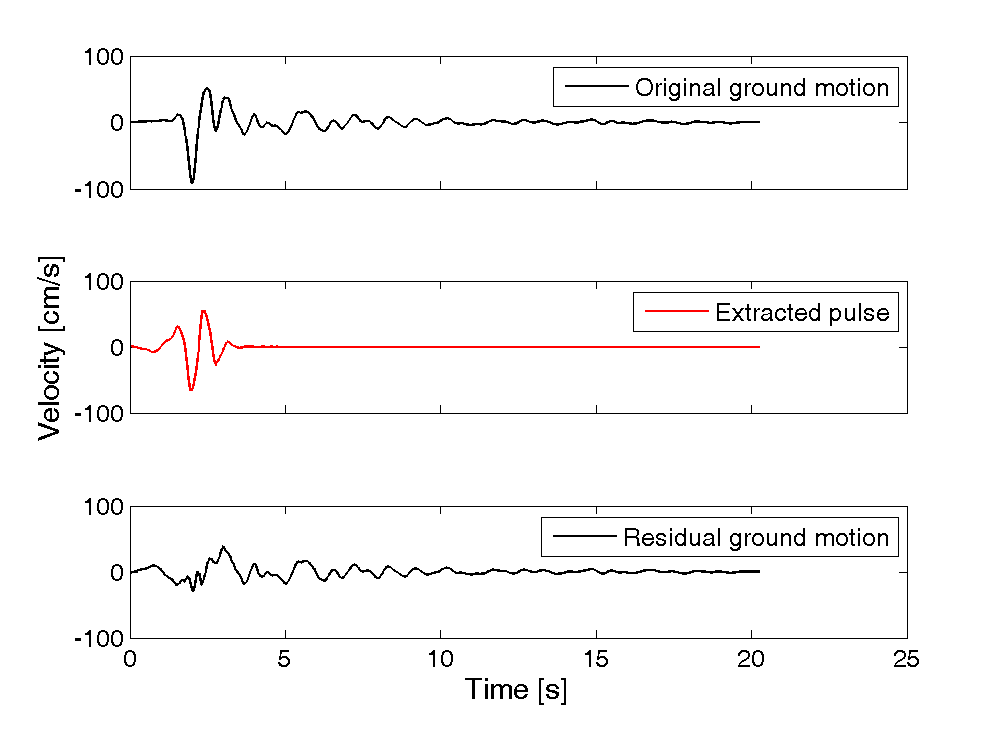

Plots of original ground motion, extracted pulse, and residual ground motion:

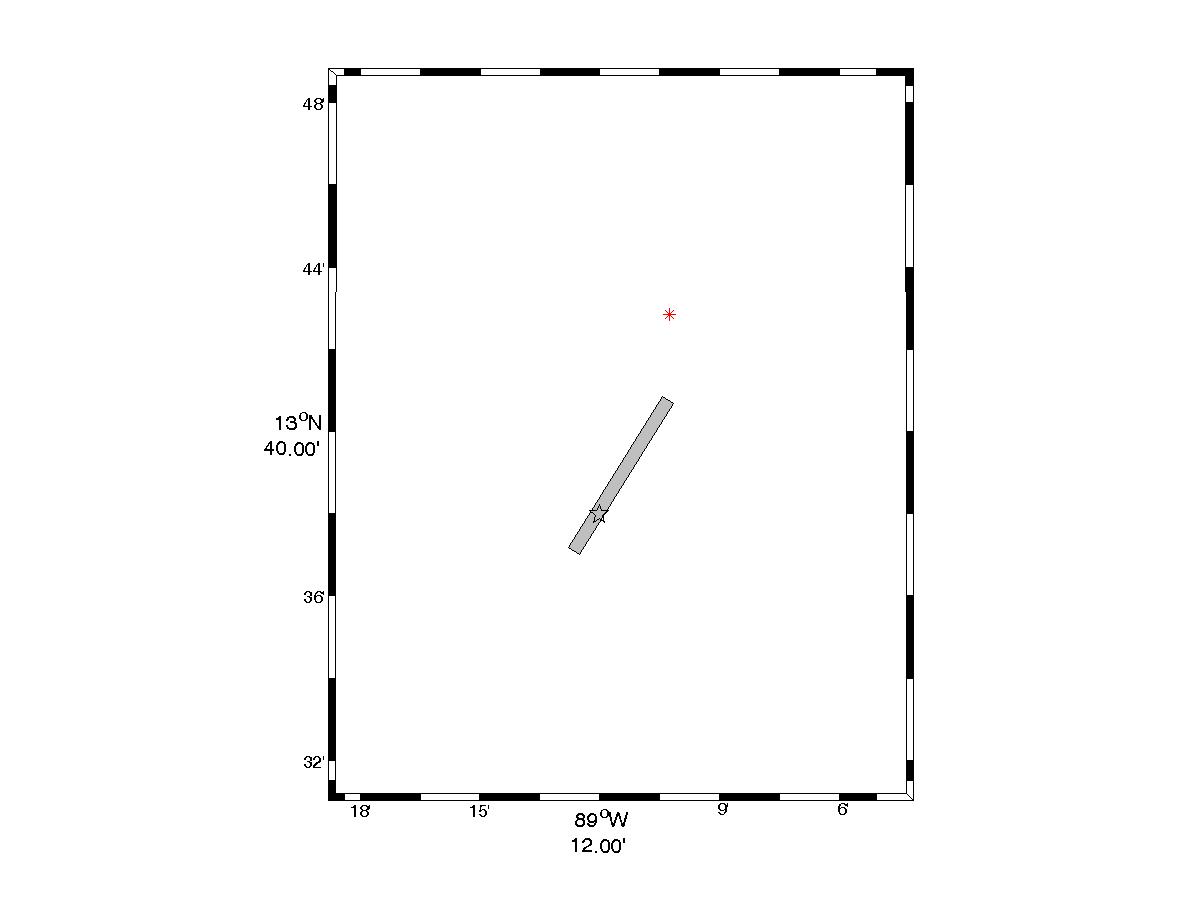

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 569

Magnitude = 5.8
Closest Distance = 7 km
Hypocentral Distance = 14.49 km
Vs30 = 330 m/s
Mechanism = Strike slip

Tp = 1.13 s
PGV = 92.2 cm/s

Orientation of strongest pulse, relative to north = 231 degrees
Orientation of strongest pulse, relative to fault parallel = 19 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.75
s = 6 km
θ = 12.8

Y = 0.71
d = 5 km
φ = 6

IDP = 1.14
Rowshandel parameter = 0.33


Notes:
