1987 Whittier Narrows-01, Santa Fe Springs - E.Joslin

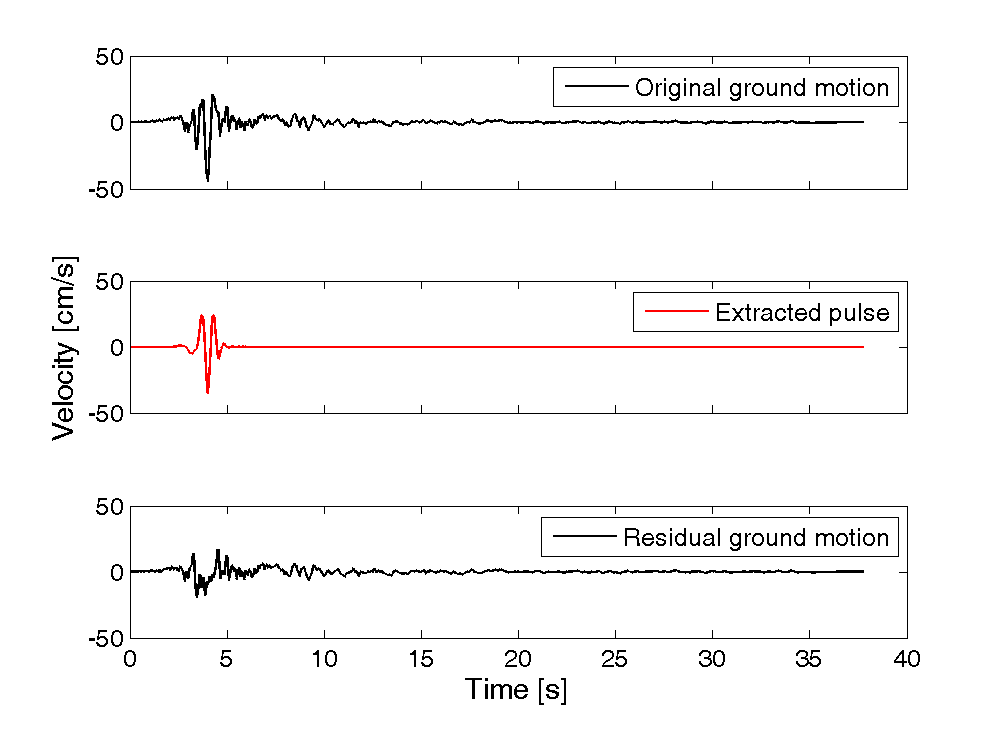

Plots of original ground motion, extracted pulse, and residual ground motion:

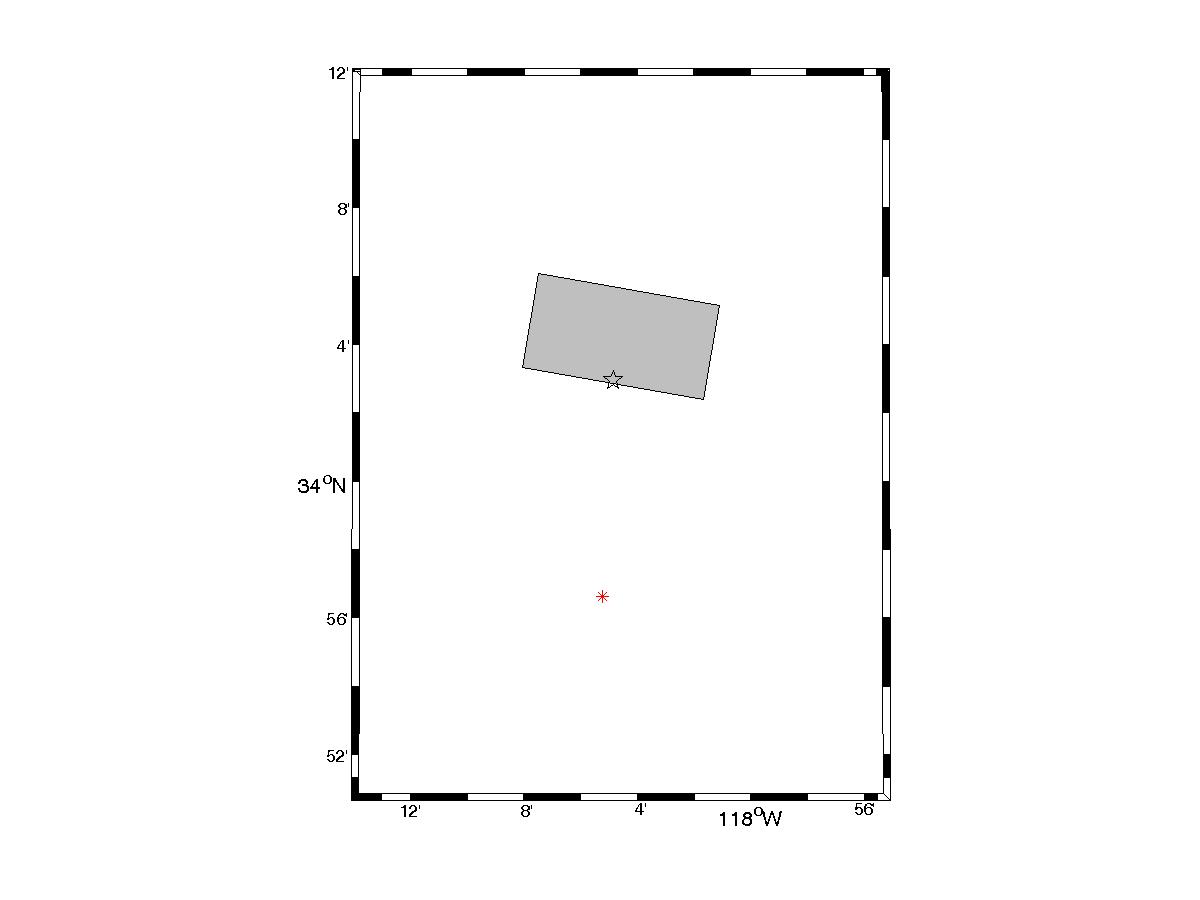

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 692

Magnitude = 6
Closest Distance = 18.5 km
Hypocentral Distance = 18.73 km
Vs30 = 339 m/s
Mechanism = Reverse-oblique

Tp = 0.81 s
PGV = 44.3 cm/s

Orientation of strongest pulse, relative to north = 74 degrees
Orientation of strongest pulse, relative to fault parallel = 26 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 0


Comments:

Poor directivity geometry, large distance given the amount of rupture between the fault and site

Directivity parameters:


X = 0.15
s = 1.49 km
θ = 82.7

Y = 0.03
d = 0.19 km
φ = 21.5

IDP = 0.01
Rowshandel parameter = -0.17


Notes:
