2011 Christchurch, New Zealand, PRPC

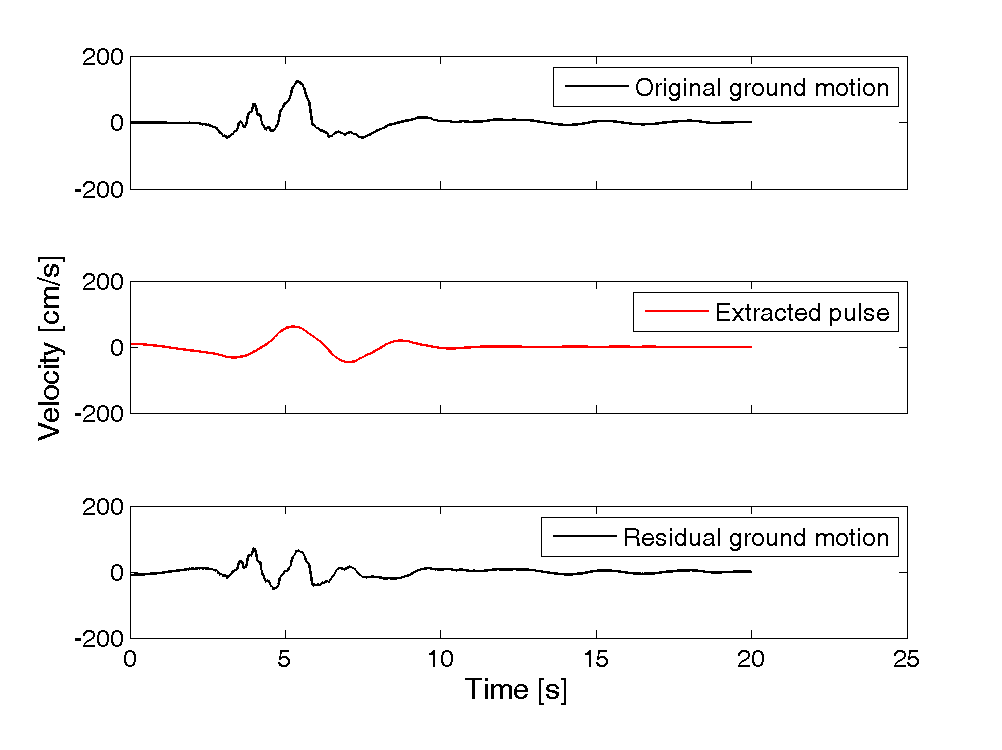

Plots of original ground motion, extracted pulse, and residual ground motion:

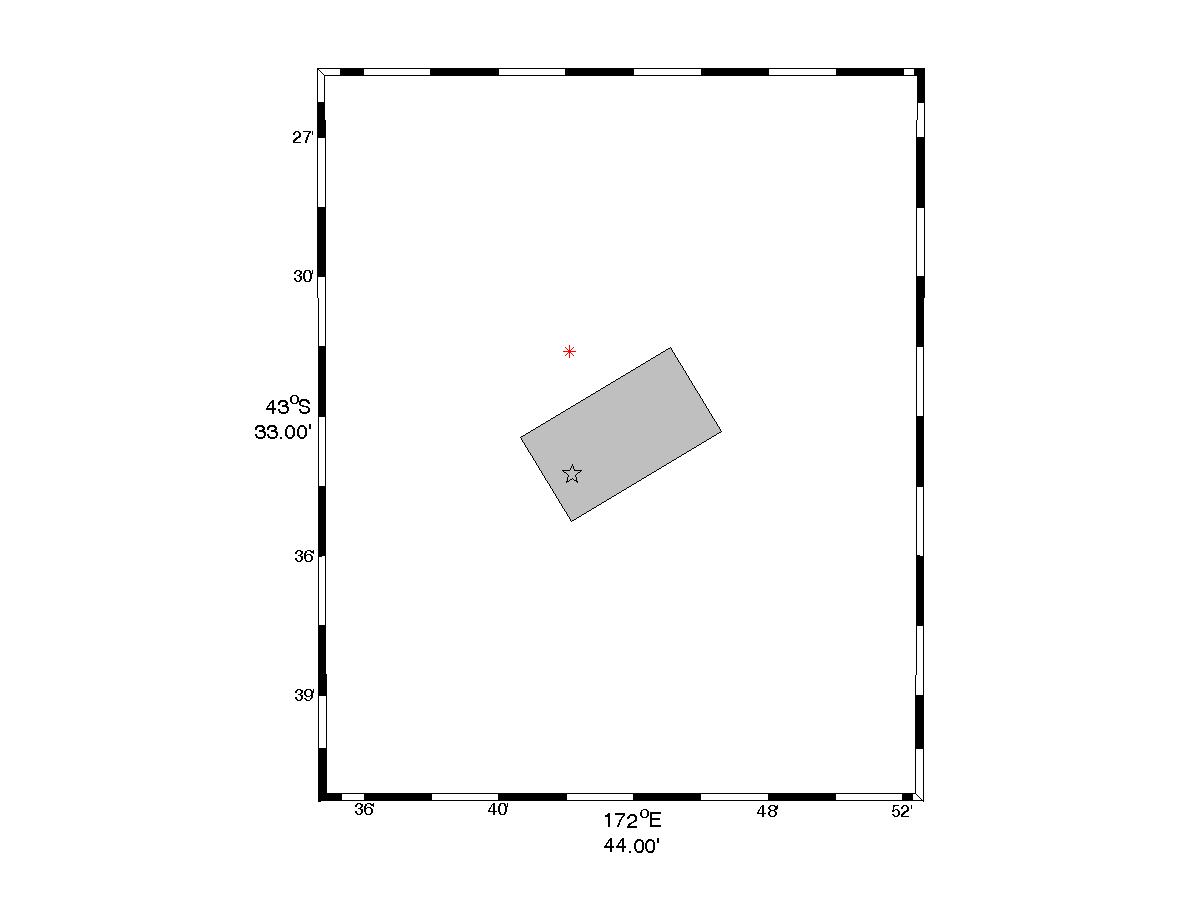

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 8119

Magnitude = 6.1
Closest Distance = 2 km
Hypocentral Distance = 7.74 km
Vs30 = 275 m/s
Mechanism = Reverse-oblique

Tp = 4.82 s
PGV = 123.1 cm/s

Orientation of strongest pulse, relative to north = 135 degrees
Orientation of strongest pulse, relative to fault parallel = 76 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

Directivity effects were most clearly seen in the fault parallel orientation for this earthquake. See Bradley and Cubrinovski(2011) for more details about this earthquake.

Directivity parameters:


X = 0.35
s = 2.43 km
θ = 60.23

Y = 0.6
d = 5.97 km
φ = 12.32

IDP = Unknown
φ = Unknown


Notes:
