2010 El Mayor-Cucapah, Westside Elementary School

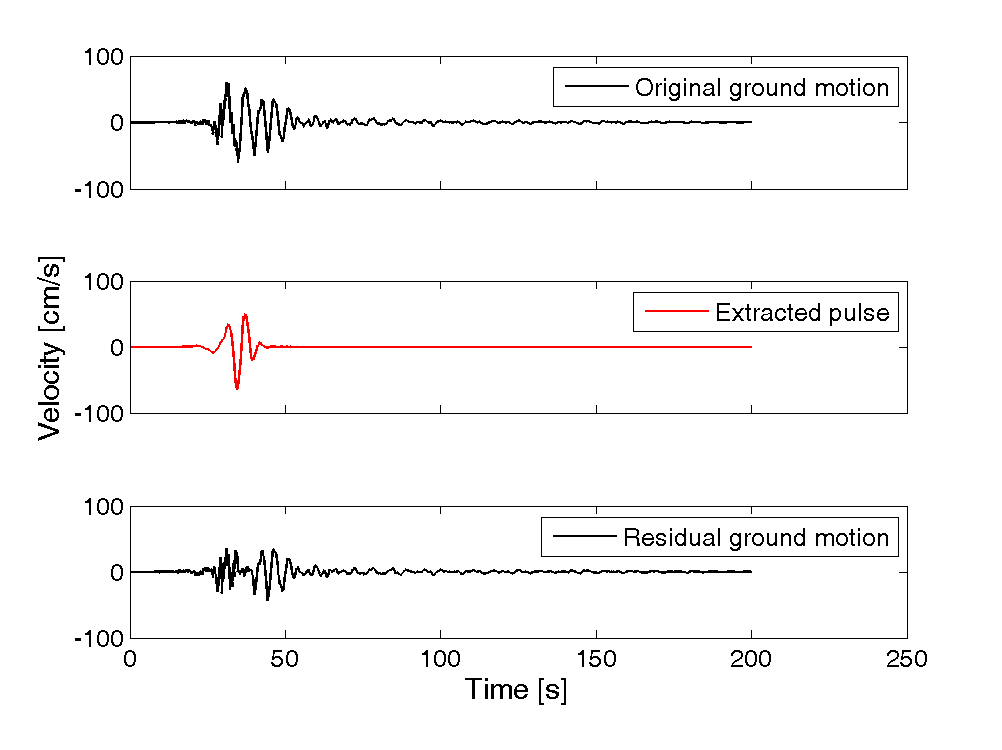

Plots of original ground motion, extracted pulse, and residual ground motion:

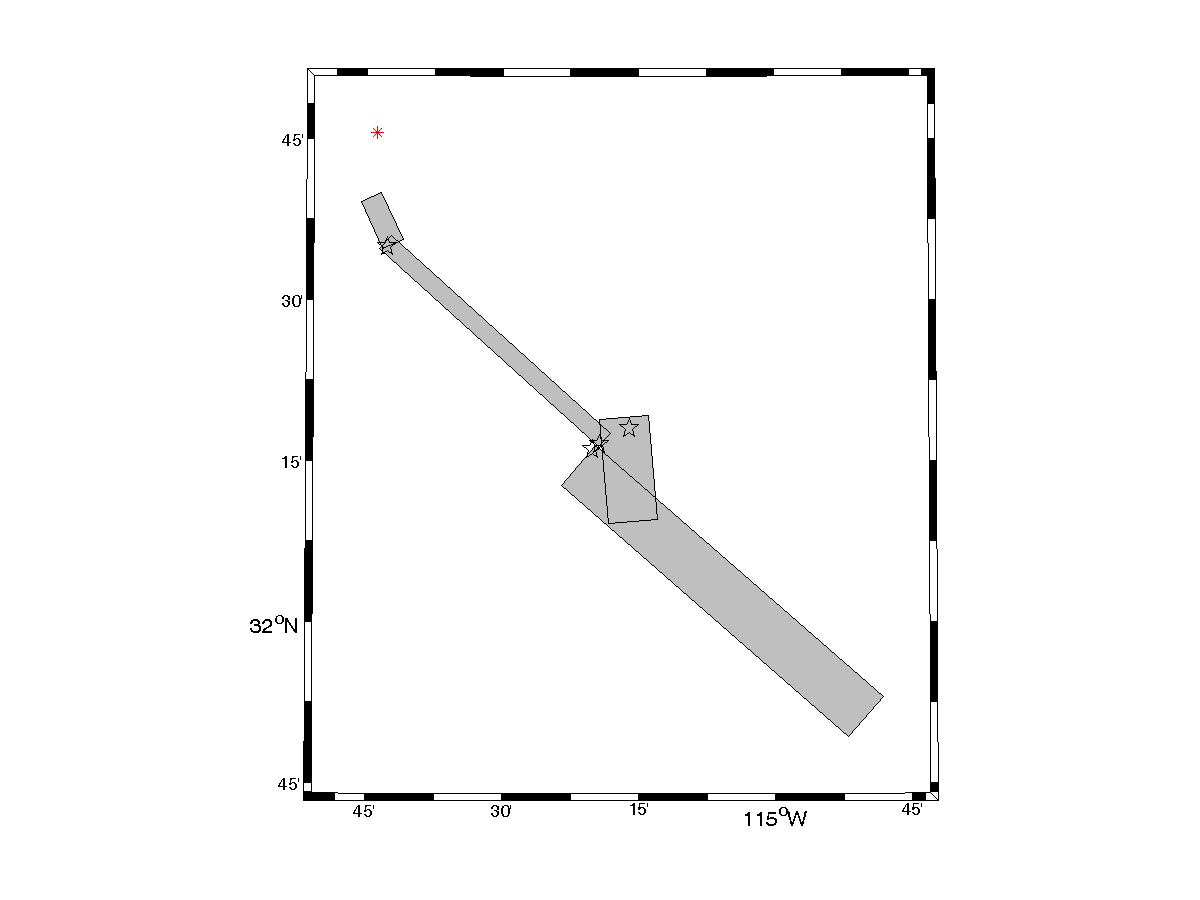

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 8606

Magnitude = 7.2
Closest Distance = 11.4 km
Hypocentral Distance = 67.37 km
Vs30 = 377 m/s
Mechanism = Strike slip

Tp = 7.08 s
PGV = 60.7 cm/s

Orientation of strongest pulse, relative to north = 311 degrees
Orientation of strongest pulse, relative to fault parallel = 0 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.43
s = 61.98 km
θ = 15

Y = 0.27
d = 3.3 km
φ = 53

IDP = Unknown
φ = Unknown


Notes:
