Electronic Supplement to
A Detailed Noise Characterization and Sensor Evaluation of the North Island of New Zealand Using the PQLX Data Quality Control System

by S. J. Rastin, C. P. Unsworth, K. R. Gledhill, and D. E. McNamara

Appendix S1. Stable Noise Models for the North Island National Broad Band Seismographic Sites

The noise PDFs for the vertical channels of the North Island National stations are displayed in Figure S1, Figure S2, Figure S3, and Figure S4. Each plot includes the minimum, maximum, mode, 10th and 90th percentiles of the obtained PDFs. Colorbar shows the corresponding probability of the power values for each period.


Appendix S2. Daily Variations of the Mode Noise Model

The daily variations of the obtained vertical mode noise models for the North Island National stations are displayed in Figure S5, Figure S6, Figure S7, and Figure S8. Each 3D plot shows the changes of the power values of the mode noise model (color bar) over the periods from 0.1 to 100s (y axis) and the day hour numbers (1 to 24) which covers 00:00 GMT to 23:00 GMT (x axis).


Appendix S3. Seasonal Variations of the Mode Noise Model

Changes of the vertical mode noise models during the months of the year for the stations of interest are displayed in Figure S9, Figure S10, Figure S11, and Figure S12. Each plot shows the changes of the power values of the mode noise model (color bar) over the periods from 0.1 to 100s (y axis) and the months of the year (x axis).


Figures

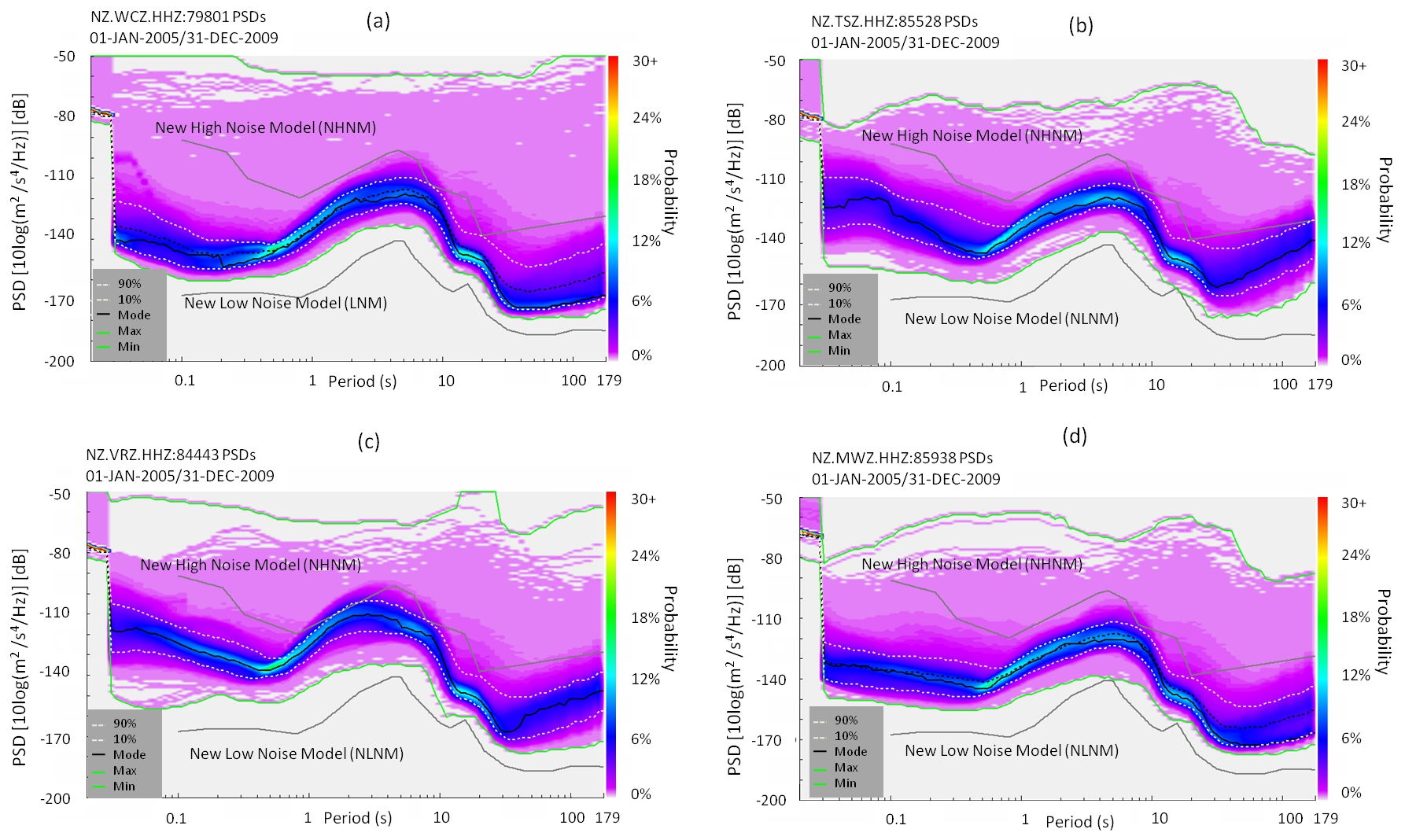

Figure S1. Stable noise models obtained from the noise PDFs for the stations (a) WCZ, (b) TSZ, (c) VRZ and (d) MWZ from the recordings of five years (2005-2009).

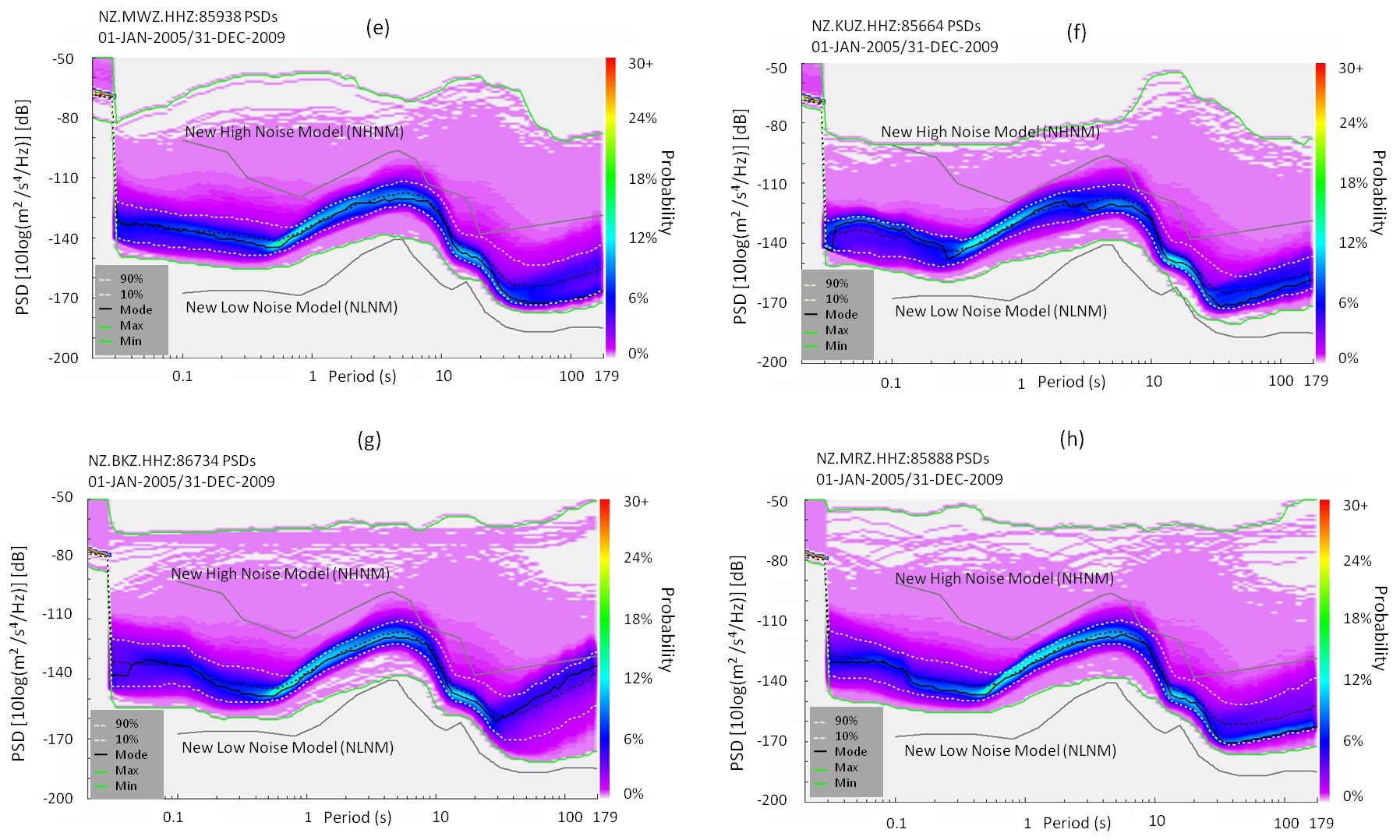

Figure S2. Stable noise models obtained from the noise PDFs for the stations (e) MWZ, (f) KUZ, (g) BKZ and (h) MRZ from the recordings of five years (2005-2009).

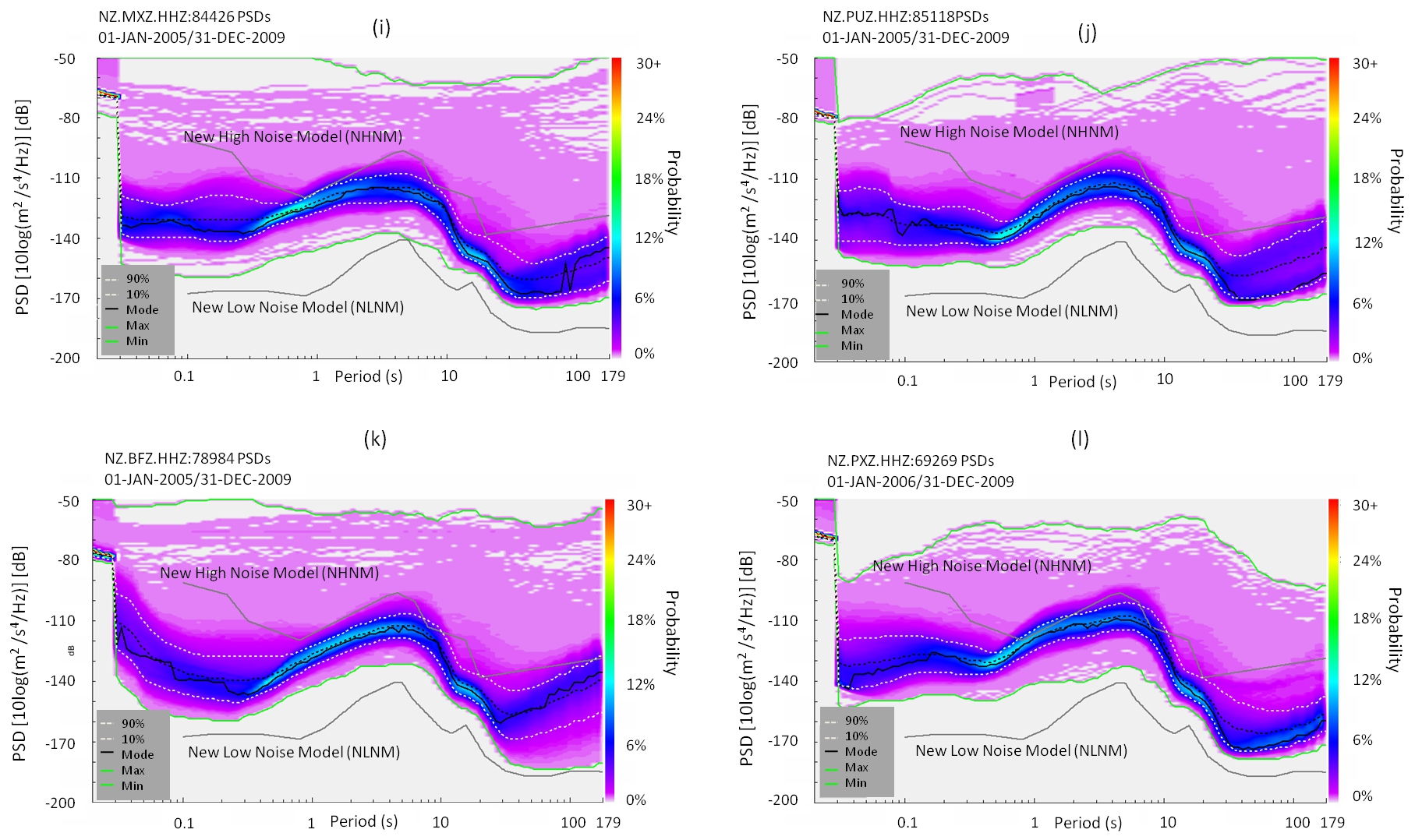

Figure S3. Stable noise models obtained from the noise PDFs for the stations (i) MXZ, (j) PUZ, (k) BFZ and (l) PXZ.

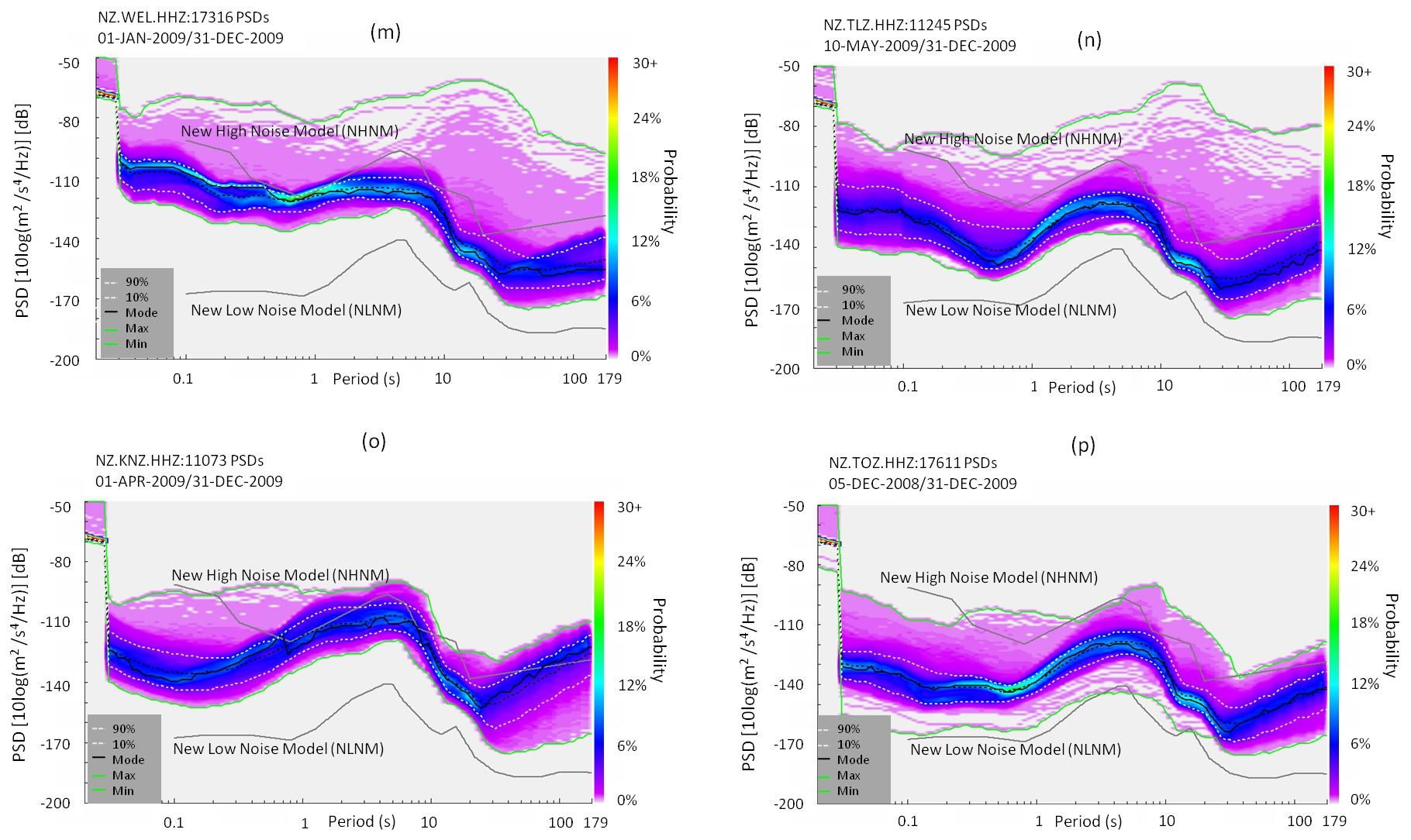

Figure S4. Stable noise models obtained from the noise PDFs for the stations (m) WEL, (n) TLZ, (o) KNZ and (p) TOZ.

Figure S5. The hourly (diurnal) variations of the vertical mode noise models obtained from the hourly data recorded during 5 years (2005-2009) for the stations (a) WCZ, (c) WAZ, (d) VRZ and (e) TSZ .

Figure S6. The diurnal variations of the vertical mode noise models obtained from the hourly data recorded during 5 years (2005-2009) for the stations (e) OUZ (f) MWZ (g) KUZ and (h) HIZ.

Figure S7. The diurnal variations of the vertical mode noise models obtained from the hourly data recorded during 5 years (2005-2009) for the stations (i) BKZ, (j) MRZ, (k) MXZ and (l) BFZ.

Figure S8. The diurnal variations of the vertical mode noise models obtained from the hourly data for the stations (m) WEL, (n) TLZ, (o) PXZ (p) TOZ,(q) KNZ and (r) PUZ.

Figure S9. The monthly variations of the vertical mode noise model obtained from the 5 years (2005-2009) recordings of the stations (a) URZ, (b) WCZ, (c) WAZ and (d) OUZ.

Figure S10. The monthly variations of the vertical mode noise model obtained from the 5 years (2005-2009) recordings of the stations (e) TSZ, (f) KUZ, (g) HIZ and (h) MWZ .

Figure S11. The monthly variations of the vertical mode noise model obtained from the recordings of the stations (i) BFZ, (j) BKZ, (k) MRZ and (l) MXZ .

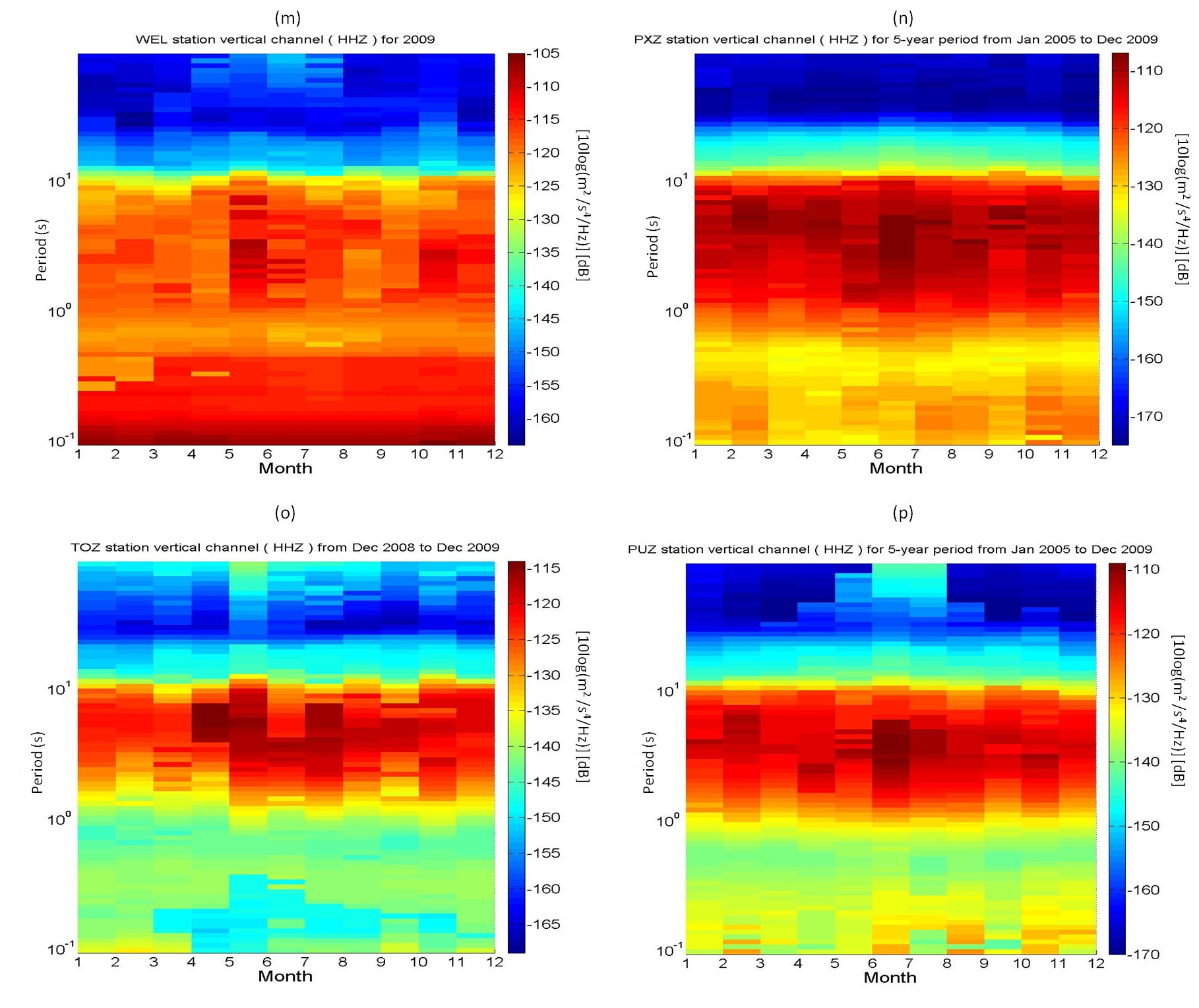

Figure S12. The monthly variations of the vertical mode noise model obtained from the recordings of the stations (m) WEL, (n) PXZ, (o) TOZ and (p) PUZ.
