1983 Coalinga-02, Anticline Ridge Pad

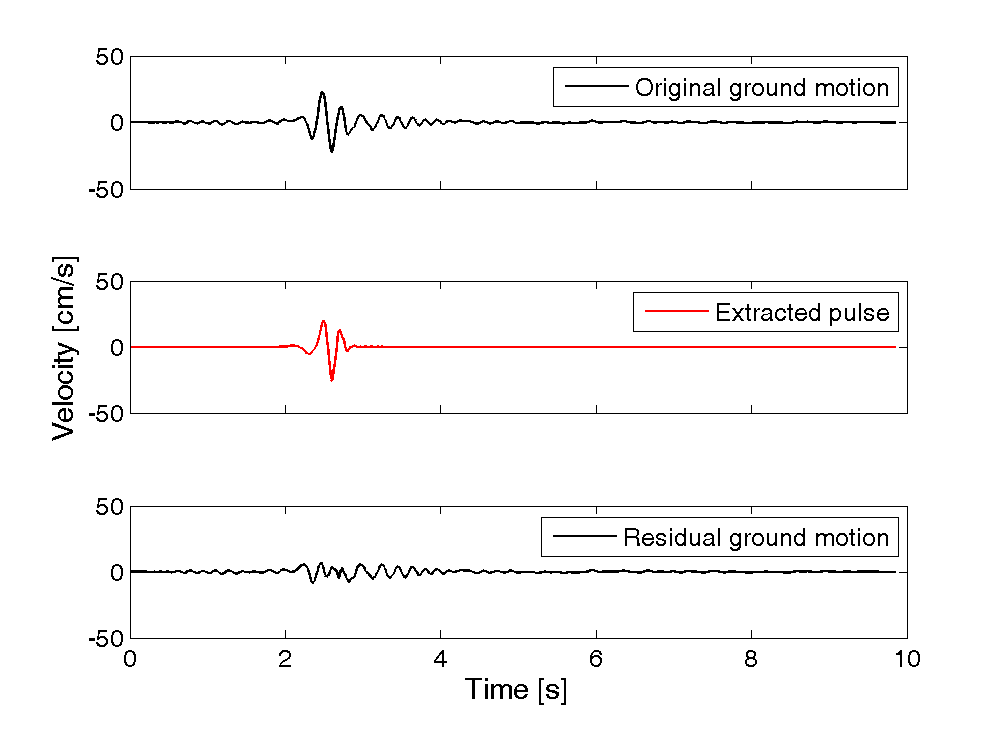

Plots of original ground motion, extracted pulse, and residual ground motion:

Map of epicenter, rupture extent and station location:

Ground motion information:

NGA Record Sequence Number 373

Magnitude = 5.1
Closest Distance = 11.6 km
Hypocentral Distance = 12.47 km
Vs30 = 390 m/s
Mechanism = Reverse-oblique

Tp = 0.27 s
PGV = 23.3 cm/s

Orientation of strongest pulse, relative to north = 311 degrees
Orientation of strongest pulse, relative to fault parallel = 5 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 0


Comments:

no comment

Directivity parameters:


X = 0.26
s = 1.08 km
θ = 71.33

Y = 0.46
d = 2.09 km
φ = 60.93

IDP = Unknown
φ = Unknown


Notes:
