This electronic supplement contains the plots of the Fourier amplitude spectra (FAS) derived from the pseudoacceleration response spectra (PSA) predicted from the Next Generation Attenuation-West2 project (NGA-West2) ground-motion prediction equations (GMPEs) by inverse random vibration theory (IRVT), along with the range of frequencies used to determine κ0. The FAS plots are provided for individual NGA-West2 GMPEs and for the geometric mean of NGA-West2 GMPEs with and without the Boore et al. (2014) GMPE (BSSA14). The estimated κ0 for geometric mean of NGA-West2 GMPEs with and without BSSA14 are provided in this electronic supplement, as are the random-effects results for models 1–4, discussed in the main article.
All figures show Fourier amplitude spectra calculated from median predicted values of PSA using inverse random vibration theory (IRVT) (dotted lines) and showing the frequency range used to calculate (solid lines) for the GMPEs and intensities shown. The GMPEs referred to in this study are ASK14 (Abrahamson et al., 2014), BSSA14 (Boore et al., 2014), CB14 (Campbell and Bozorgnia, 2014), CY14 (Chiou and Youngs, 2014), and I14 (Idriss, 2014).
Download: Electronic_Supplement_Figures.zip [zipped portable network graphics (PNG) figures; ∼7.9 KB]. The zipped file contains the following 95 figures of Fourier spectra:

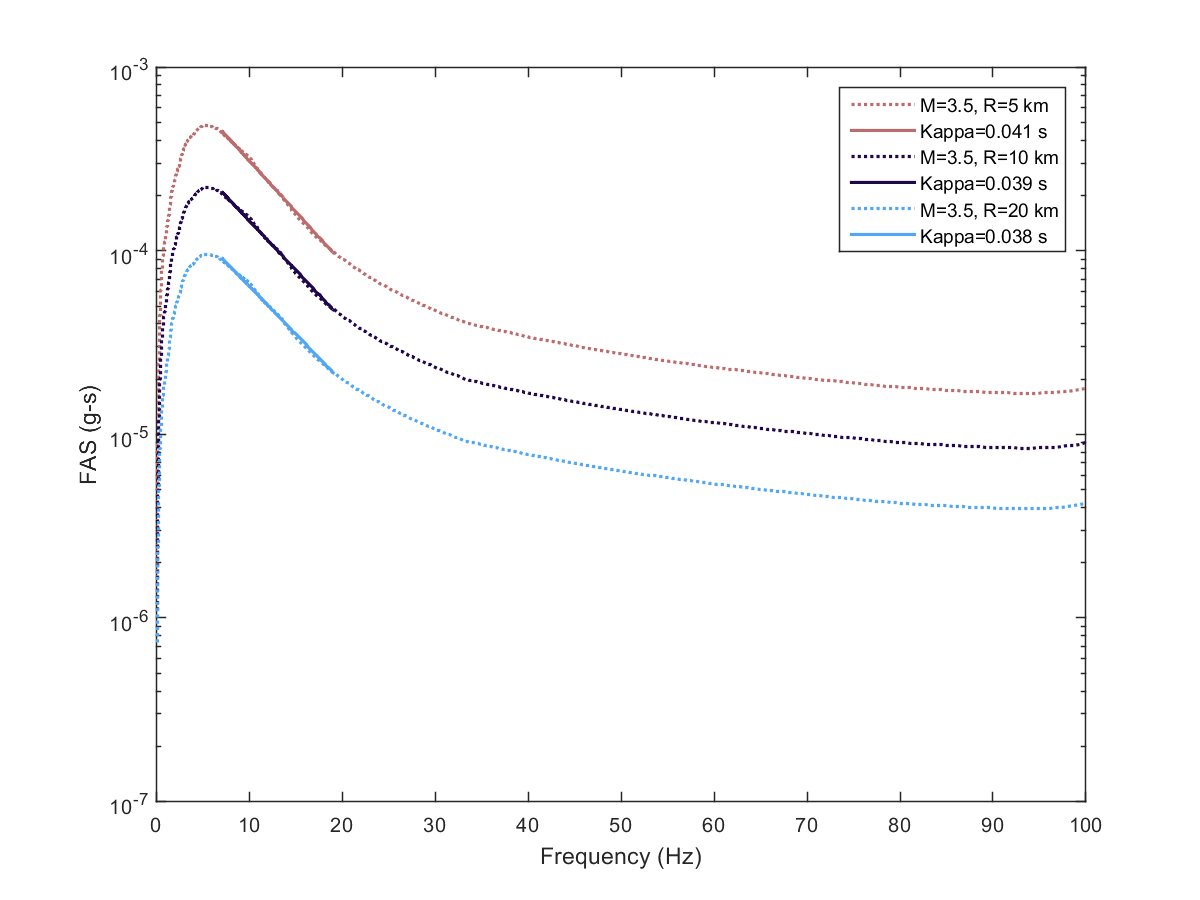

Figure S1. ASK14 GMPE and M 3.5.

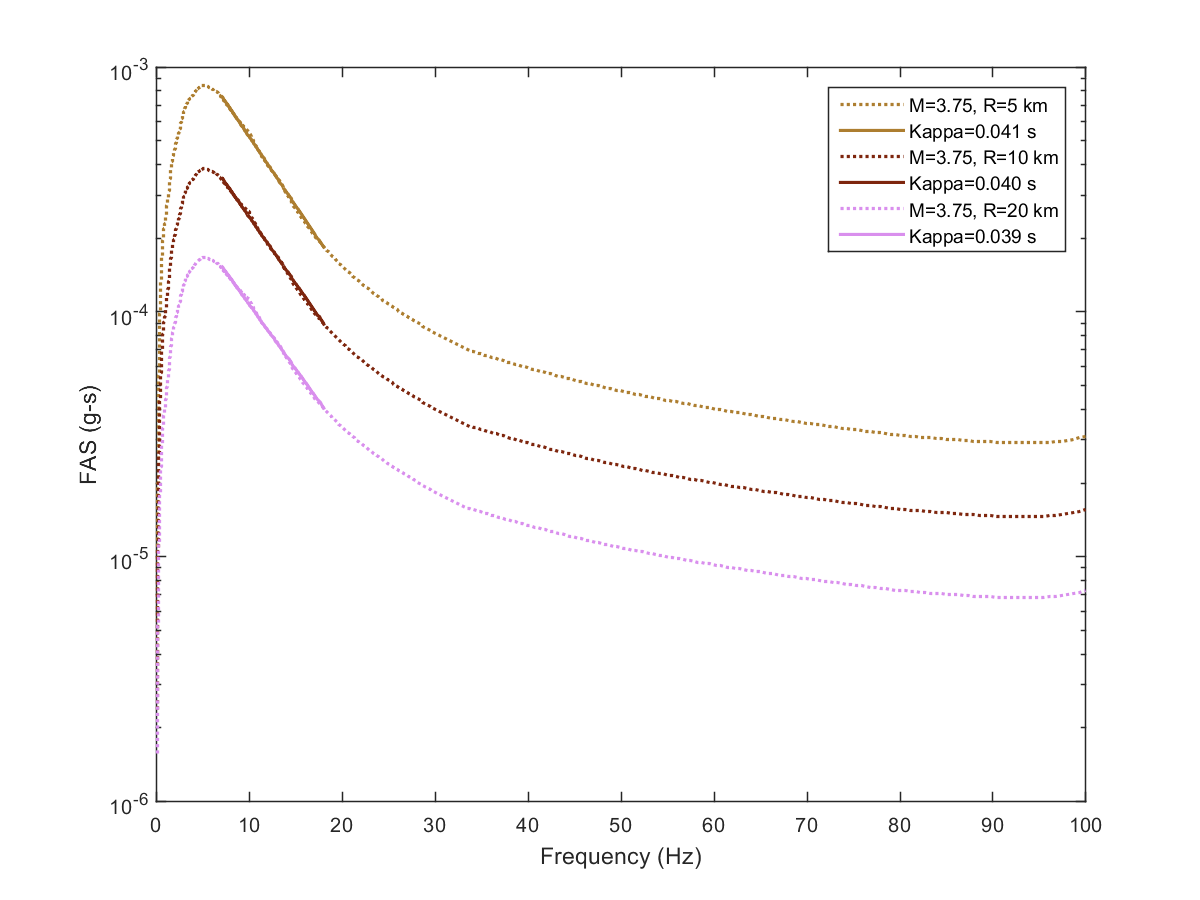

Figure S2. ASK14 GMPE and M 3.75.

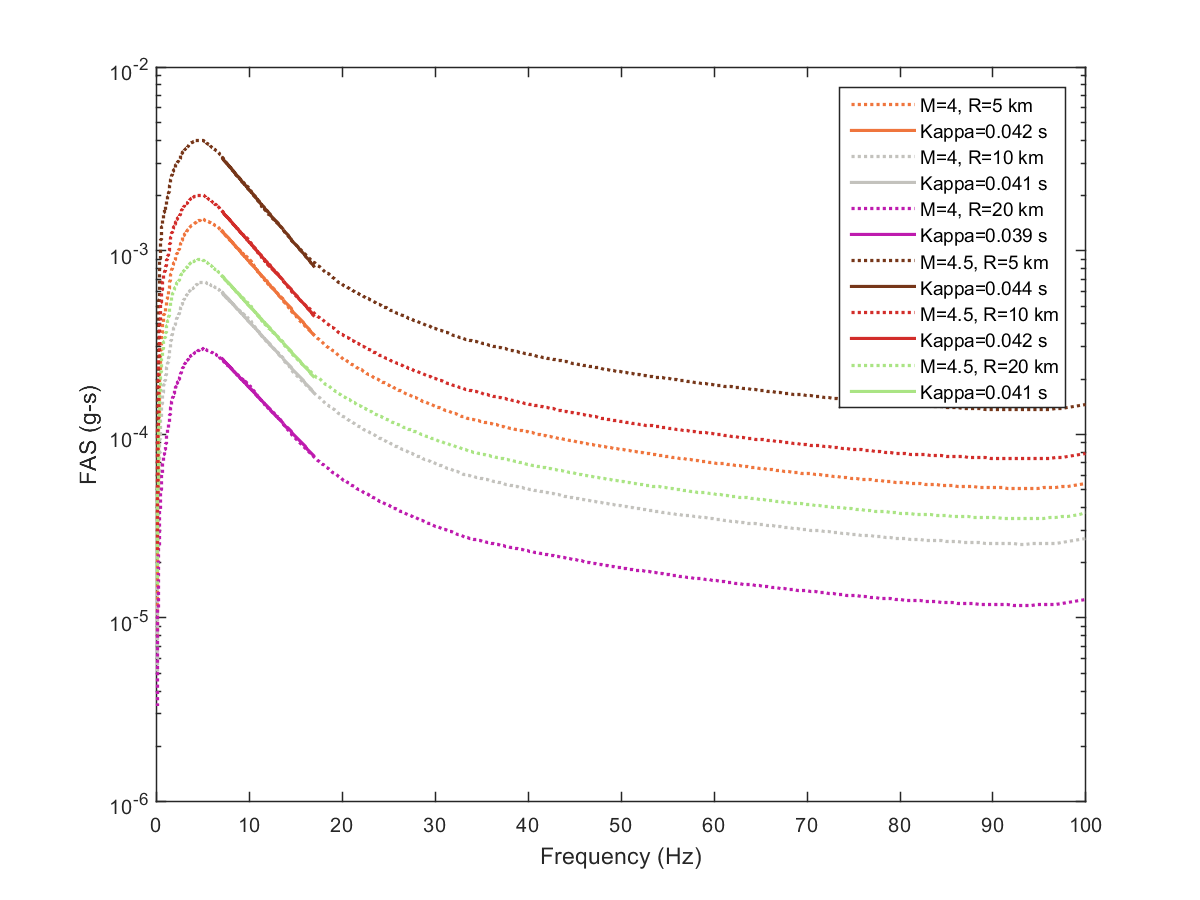

Figure S3. ASK14 GMPE and M 4 and 4.5.

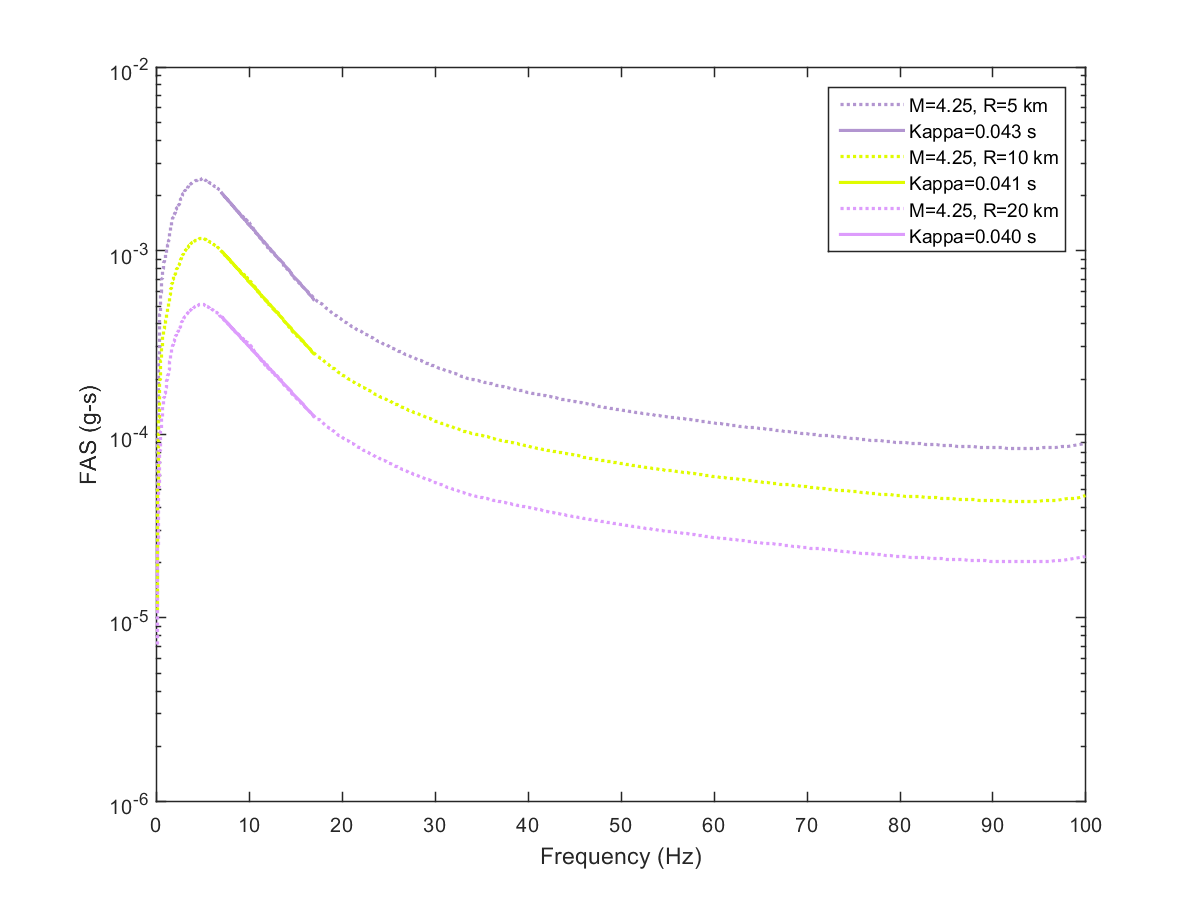

Figure S4. ASK14 GMPE and M 4.25.
Figure S5. ASK14 GMPE and M 4.75.

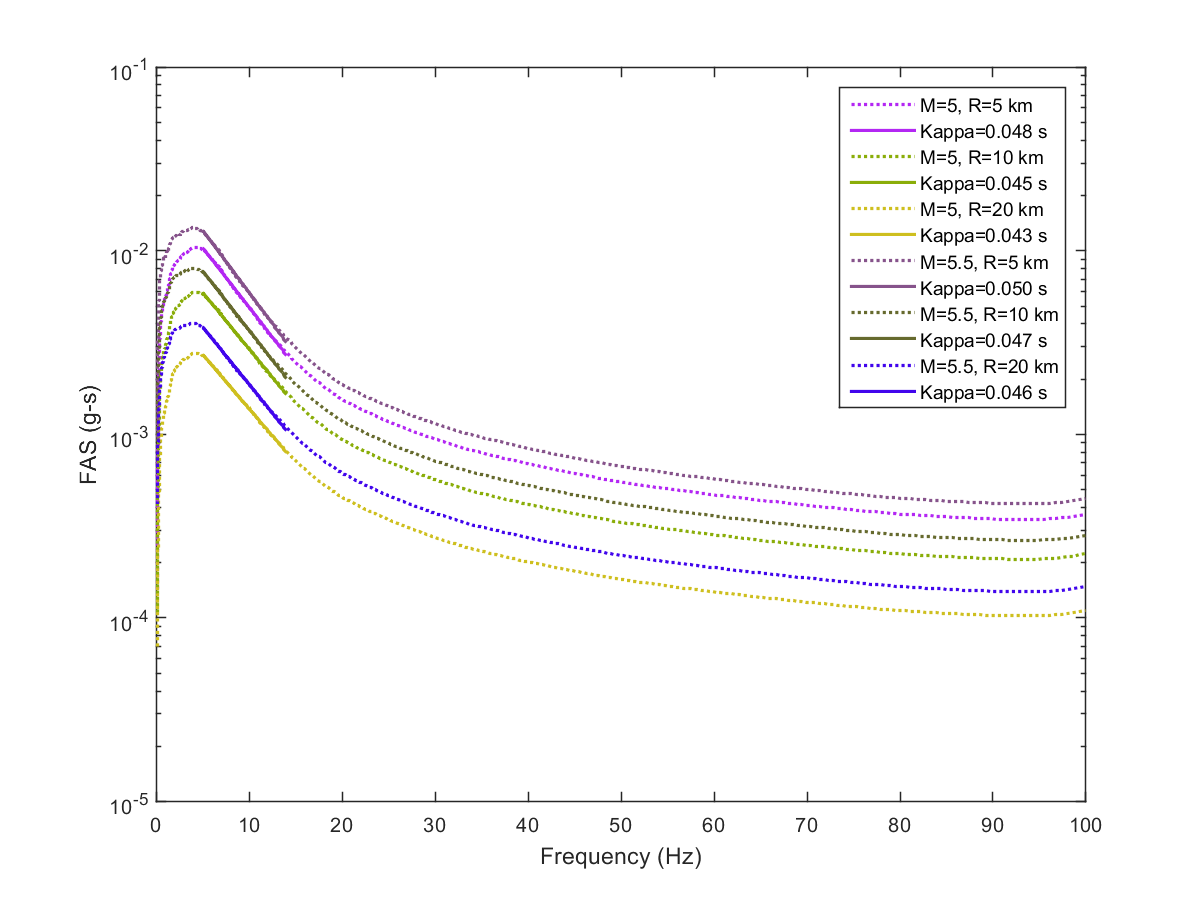

Figure S6. ASK14 GMPE and M 5 and 5.5.

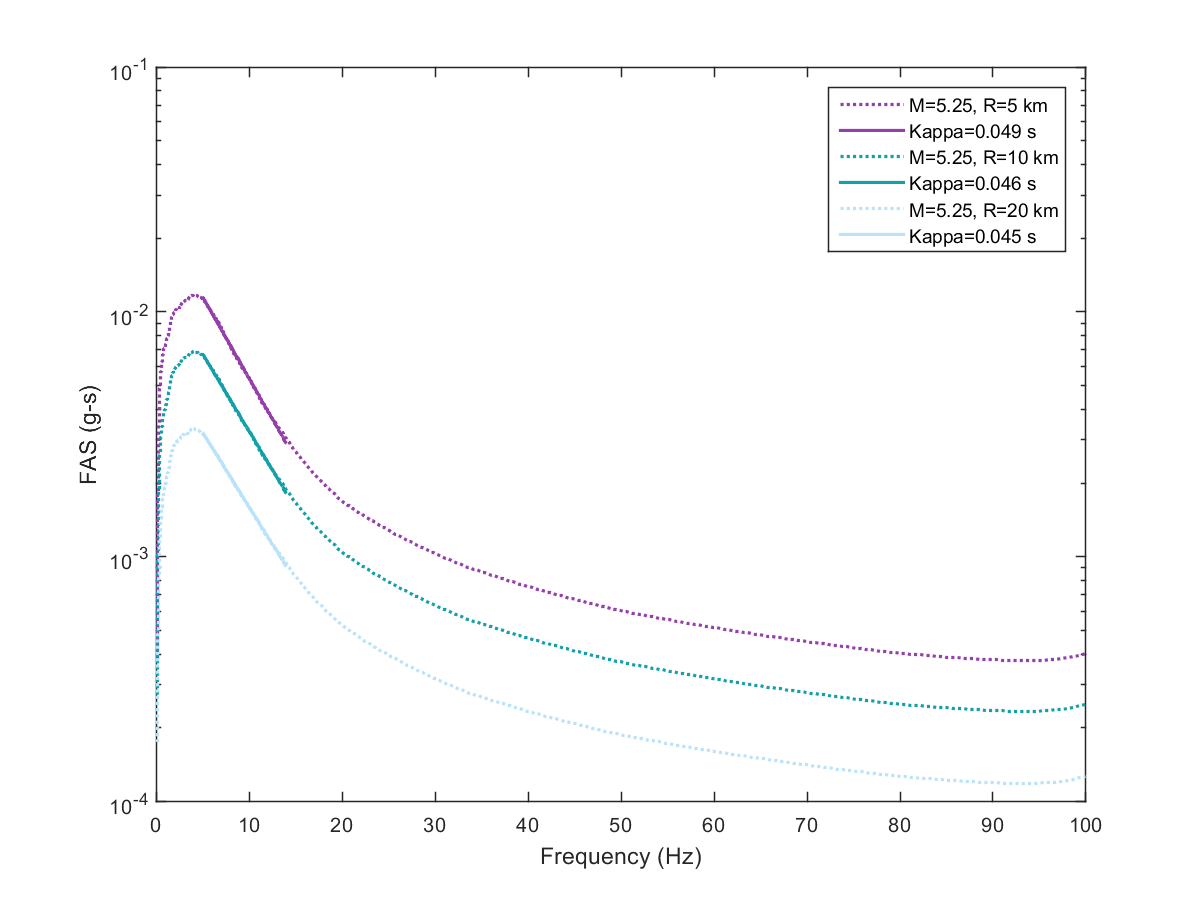

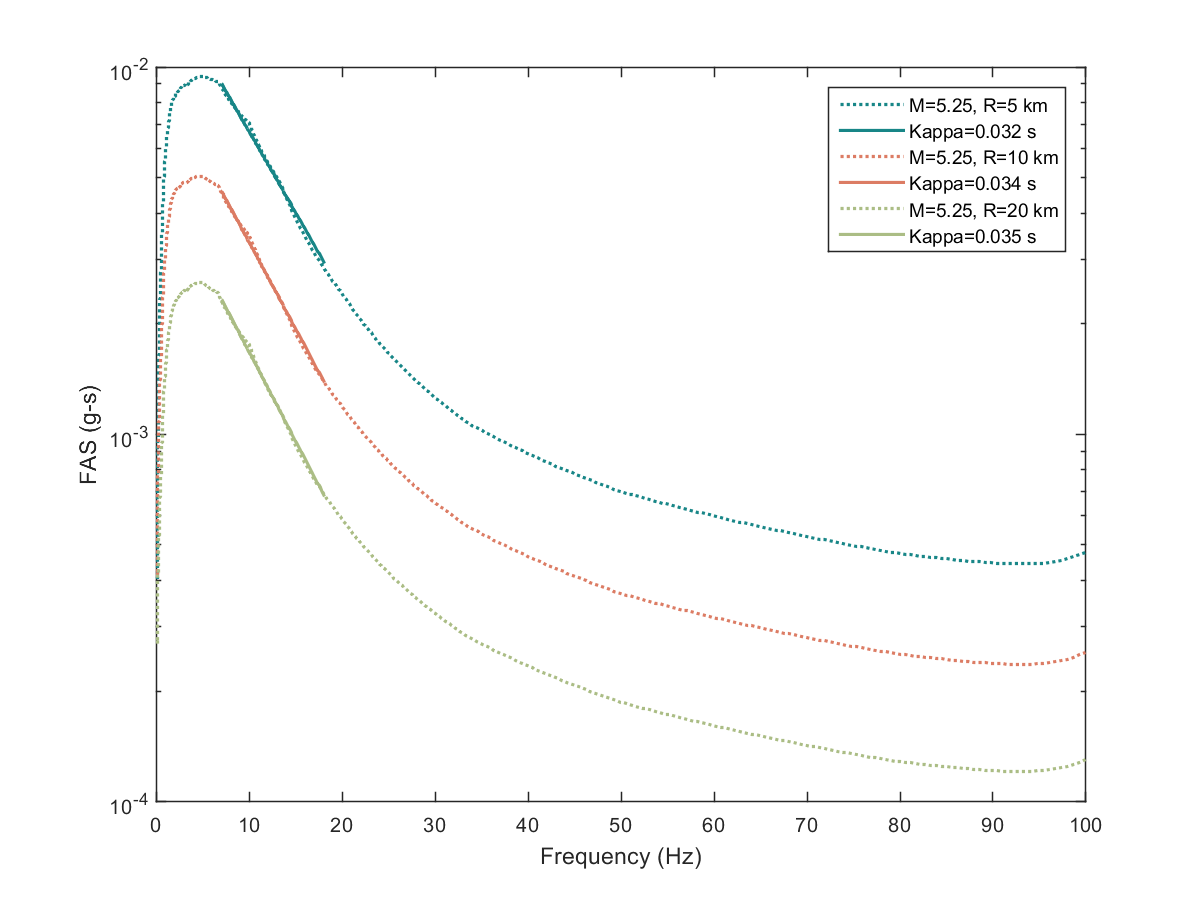

Figure S7. ASK14 GMPE and M 5.25.

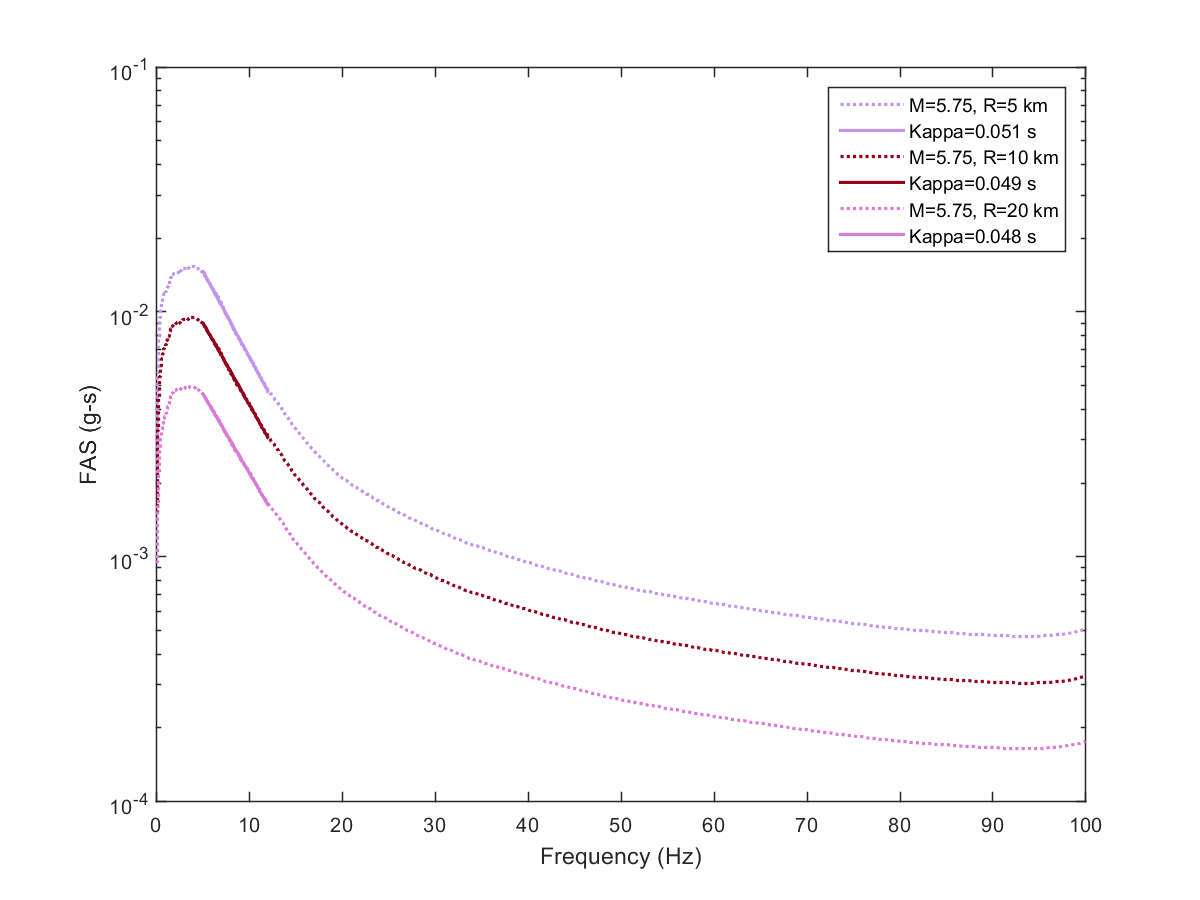

Figure S8. ASK14 GMPE and M 5.75.
Figure S9. ASK14 GMPE and M 6 and 6.5.
Figure S10. ASK14 GMPE and M 6.25.

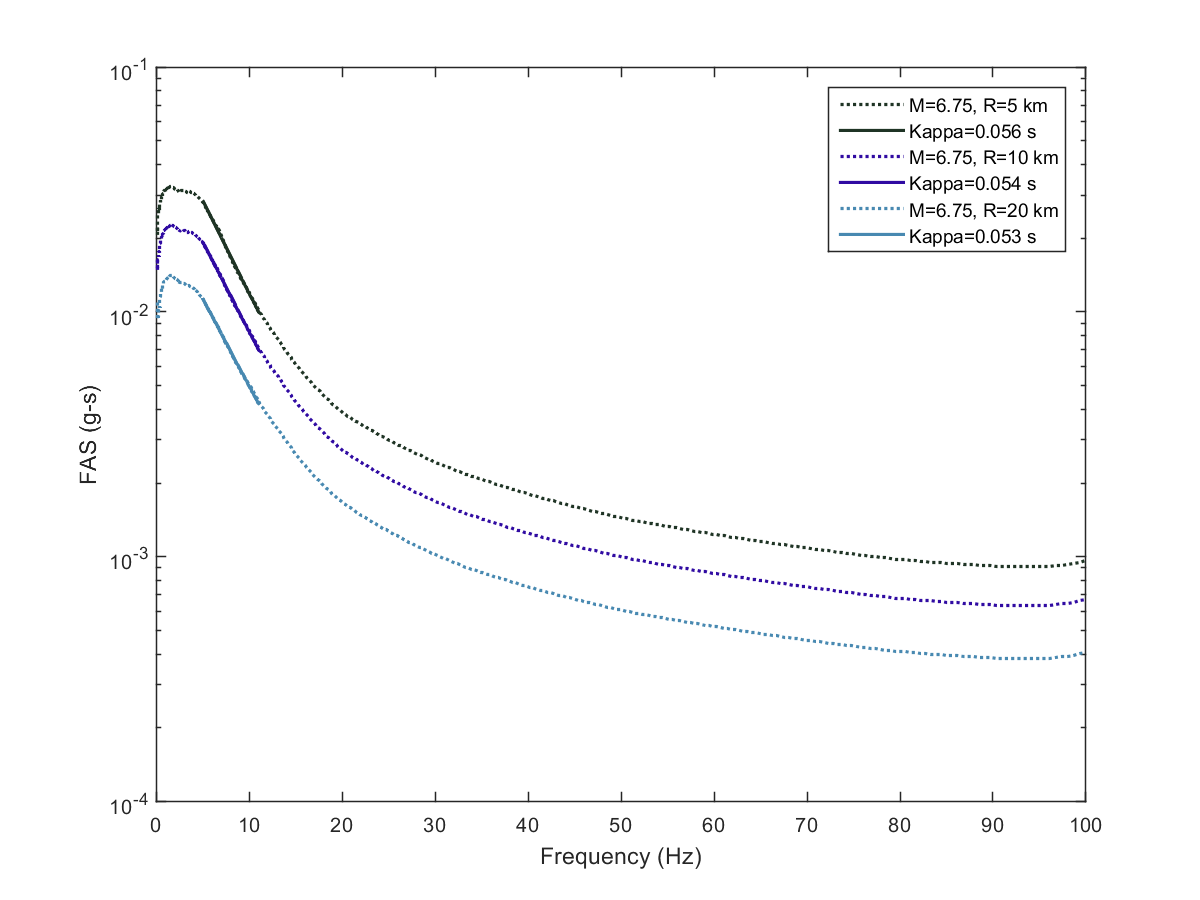

Figure S11. ASK14 GMPE and M 6.75.
Figure S12. ASK14 GMPE and M 7 and 7.5.

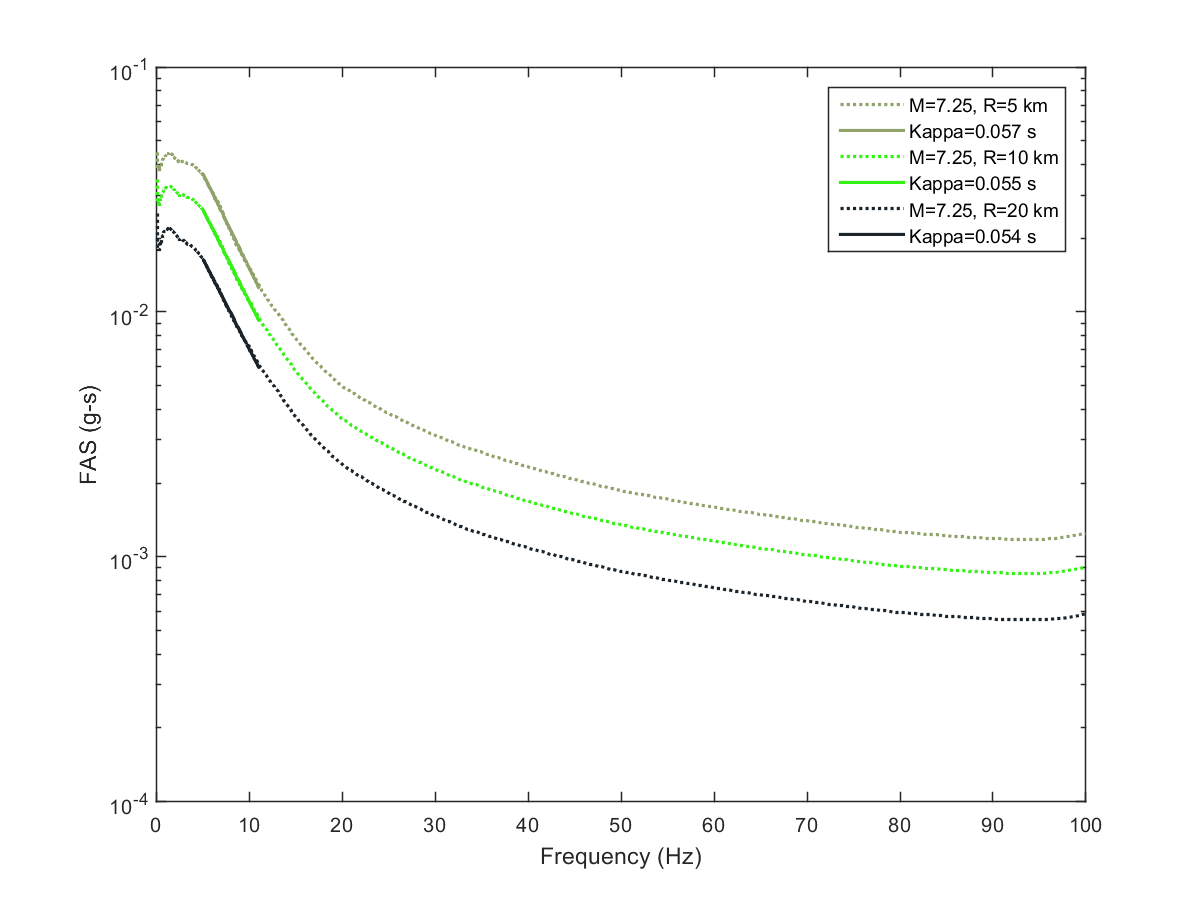

Figure S13. ASK14 GMPE and M 7.25.

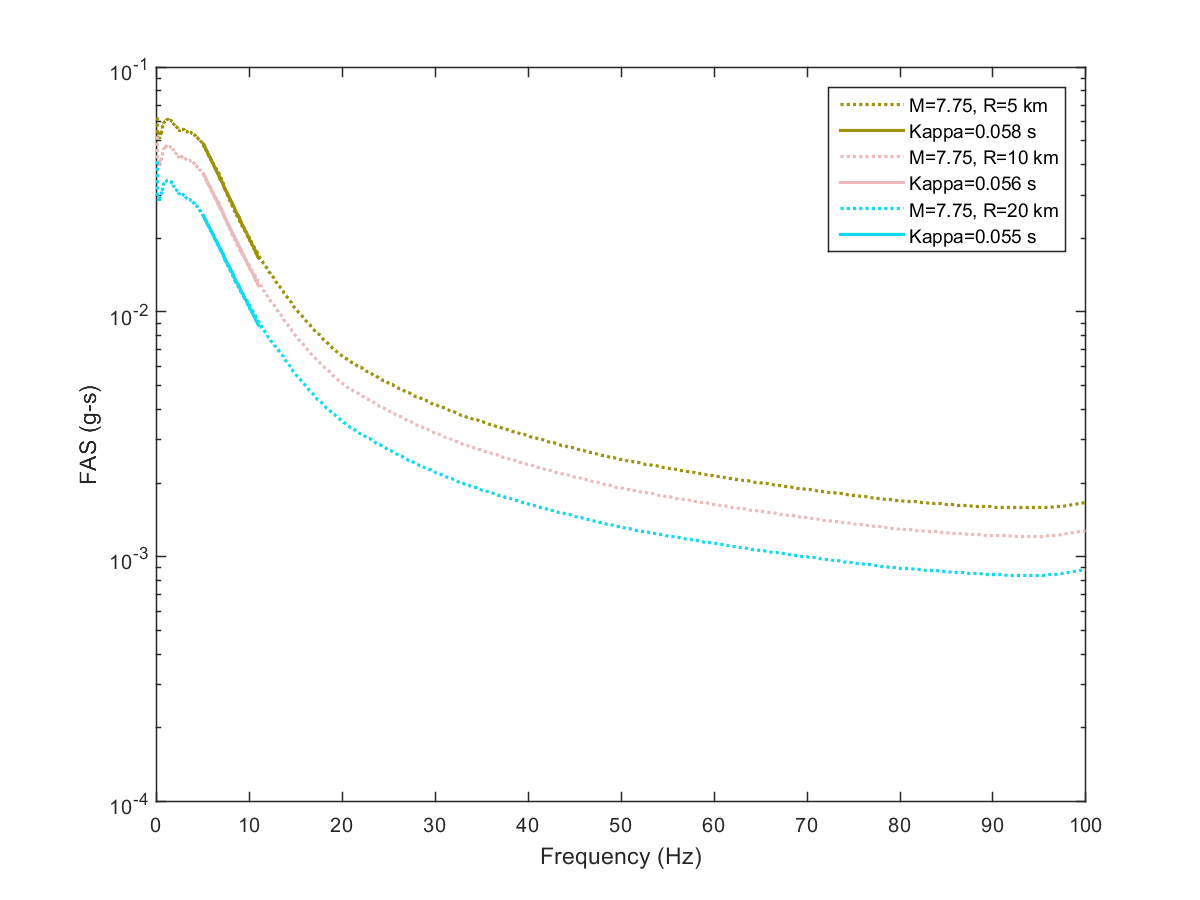

Figure S14. ASK14 GMPE and M 7.75.

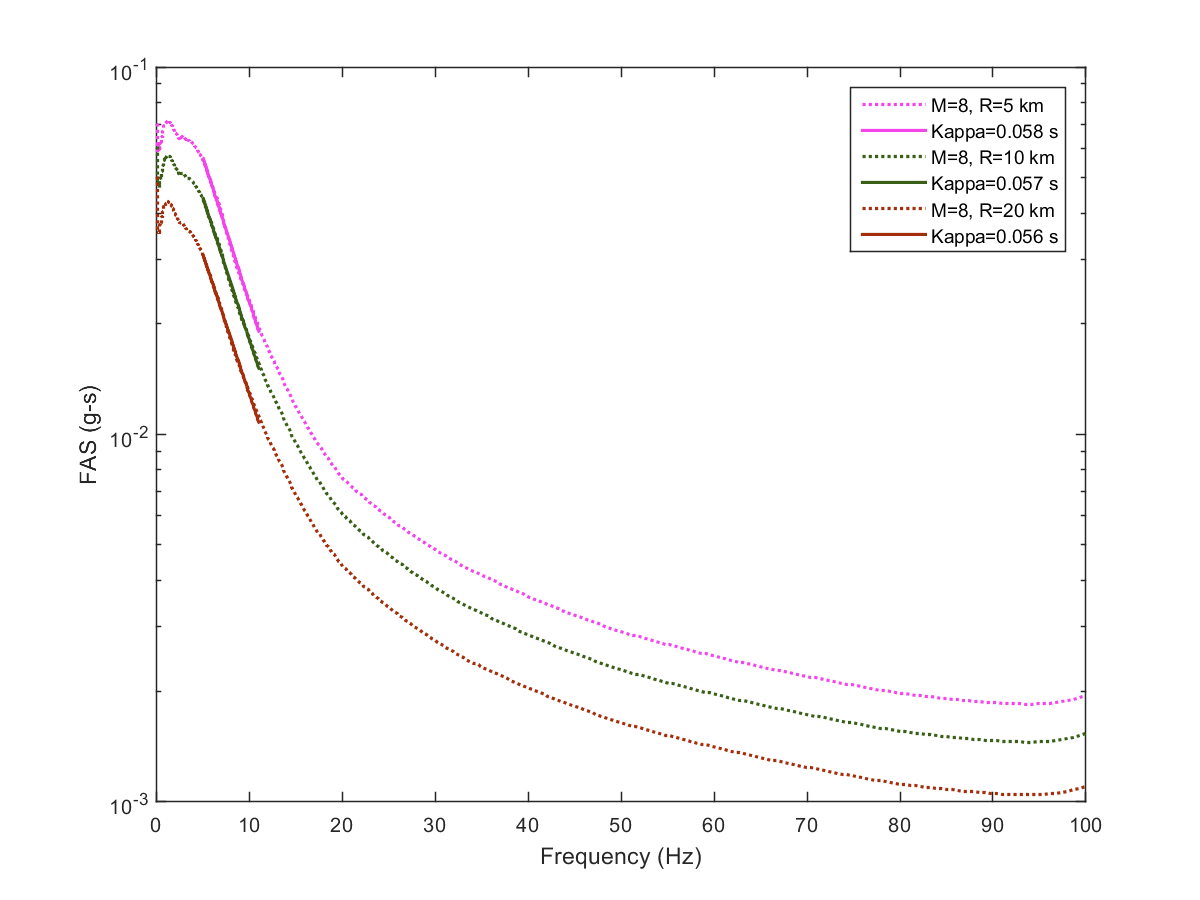

Figure S15. ASK14 GMPE and M 8.
Figure S16. BSSA14 GMPE and M 3.5.

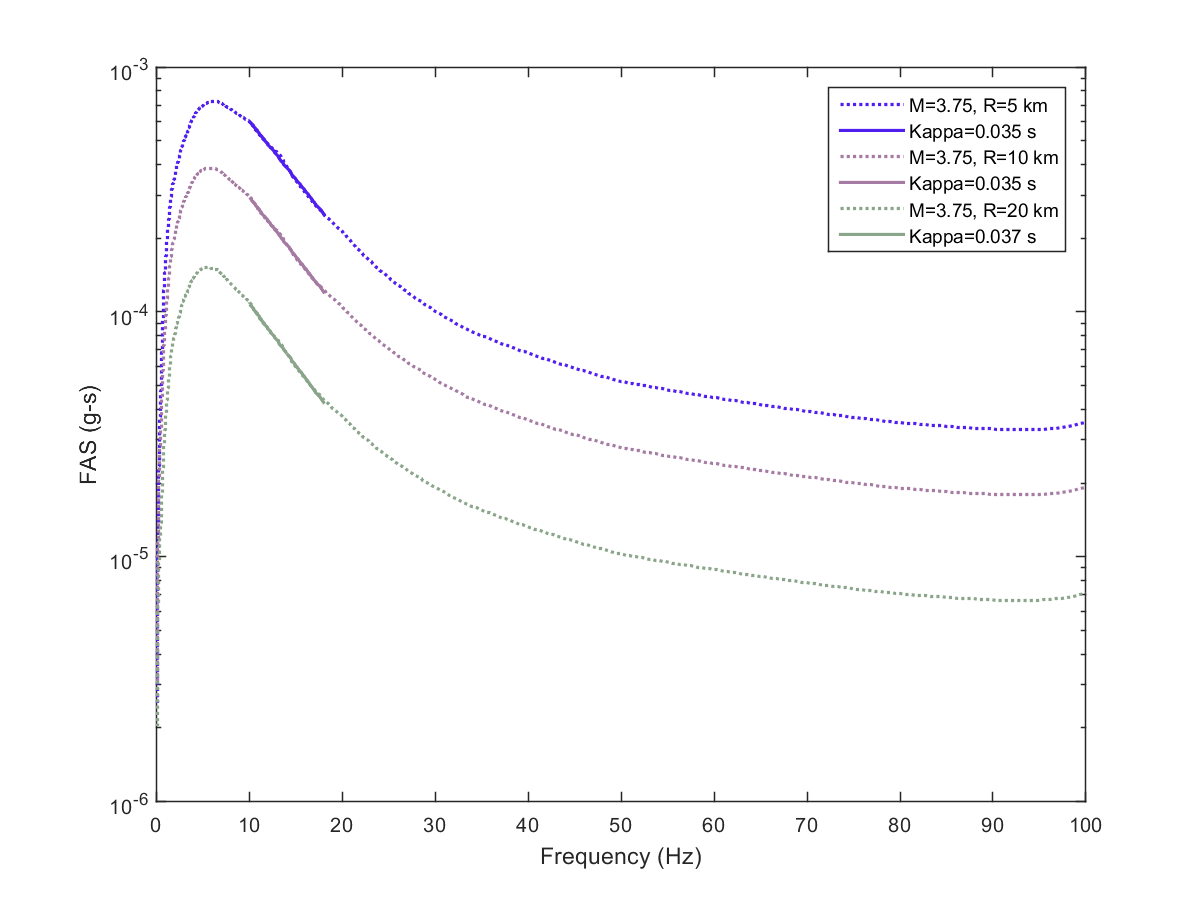

Figure S17. BSSA14 GMPE and M 3.75.

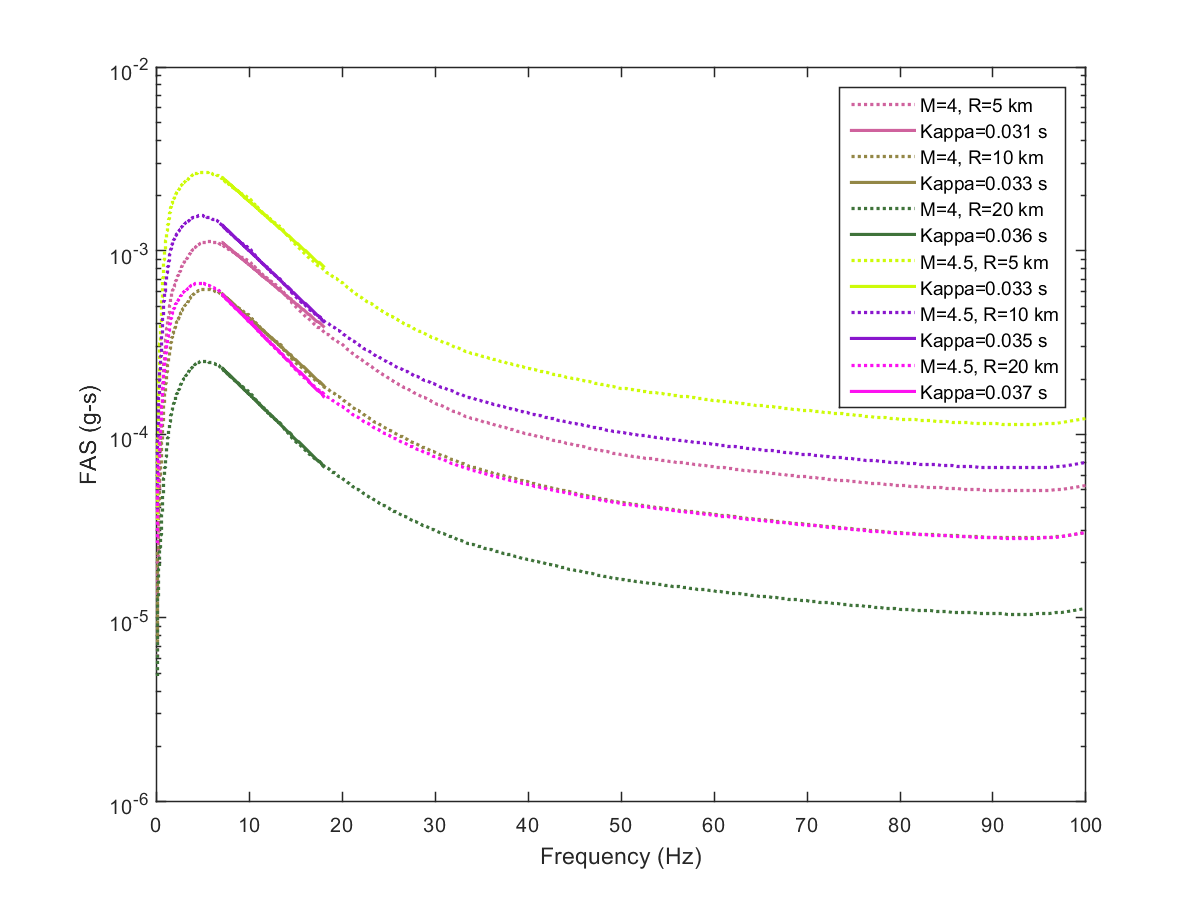

Figure S18. BSSA14 GMPE and M 4 and 4.5.

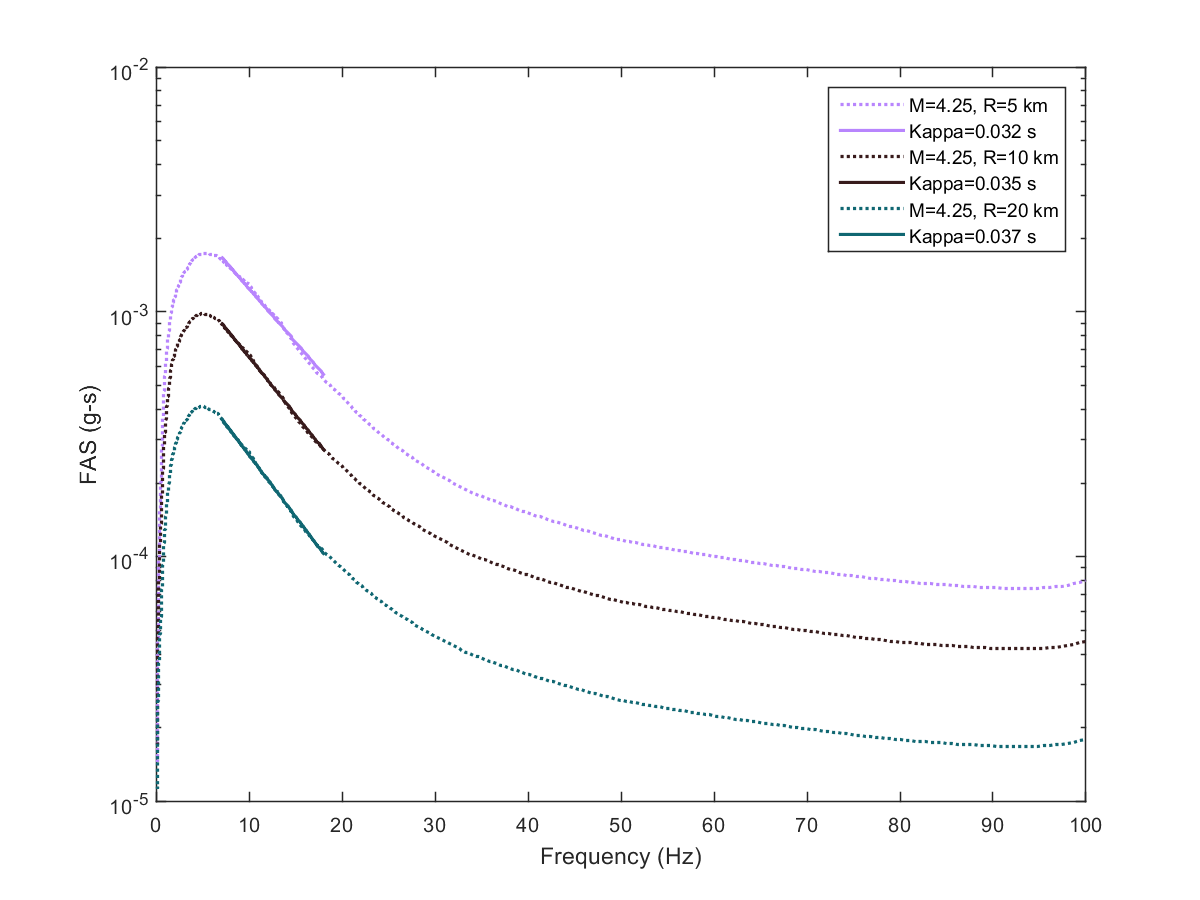

Figure S19. BSSA14 GMPE and M 4.25.

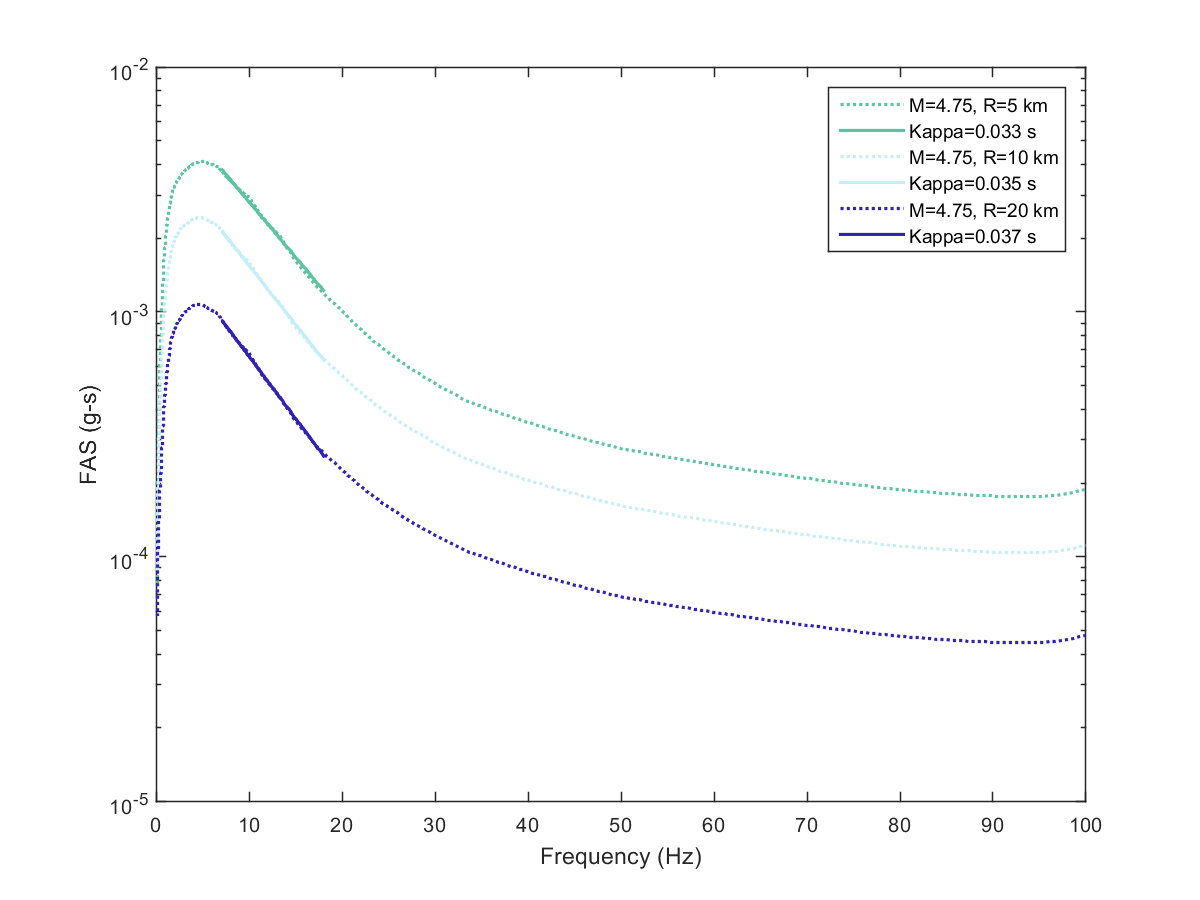

Figure S20. BSSA14 GMPE and M 4.75.

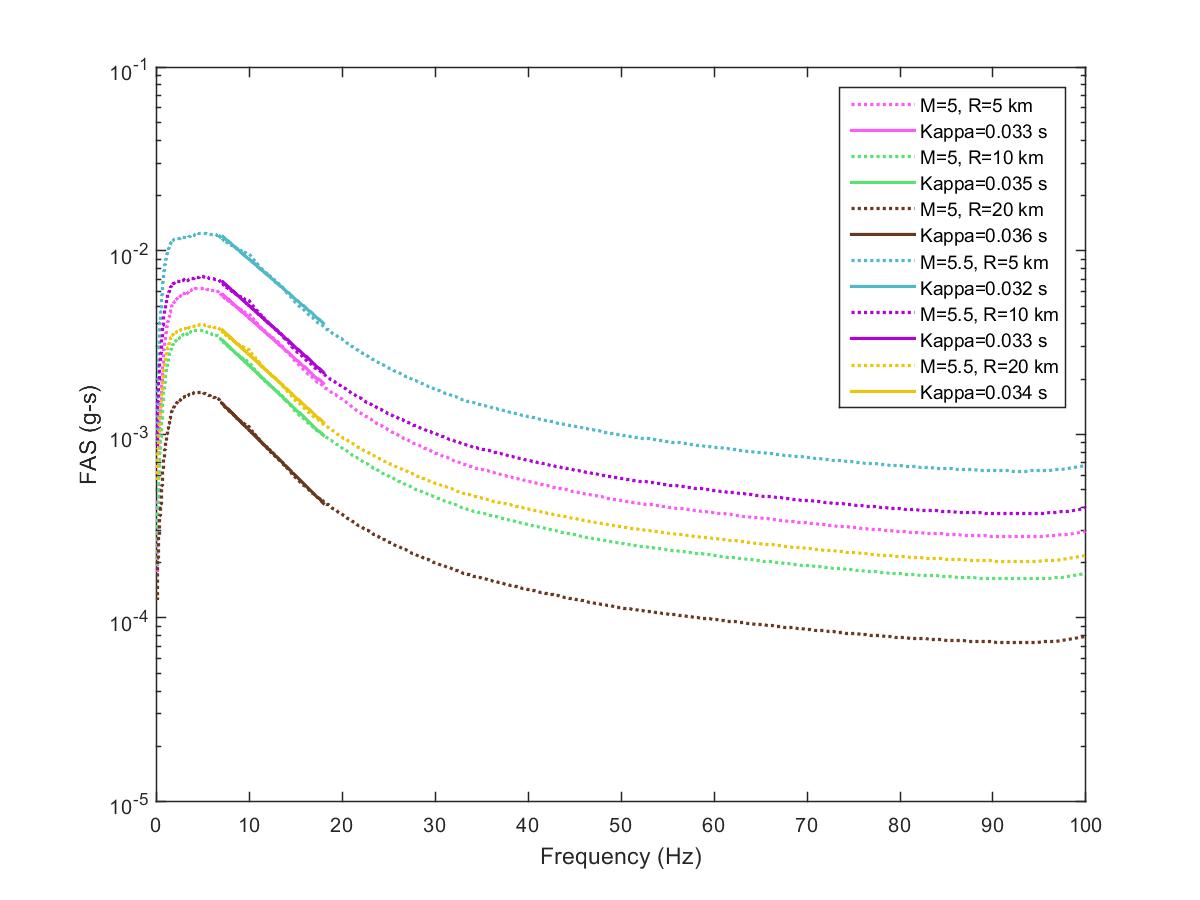

Figure S21. BSSA14 GMPE and M 5 and 5.5.
Figure S22. BSSA14 GMPE and M 5.25.

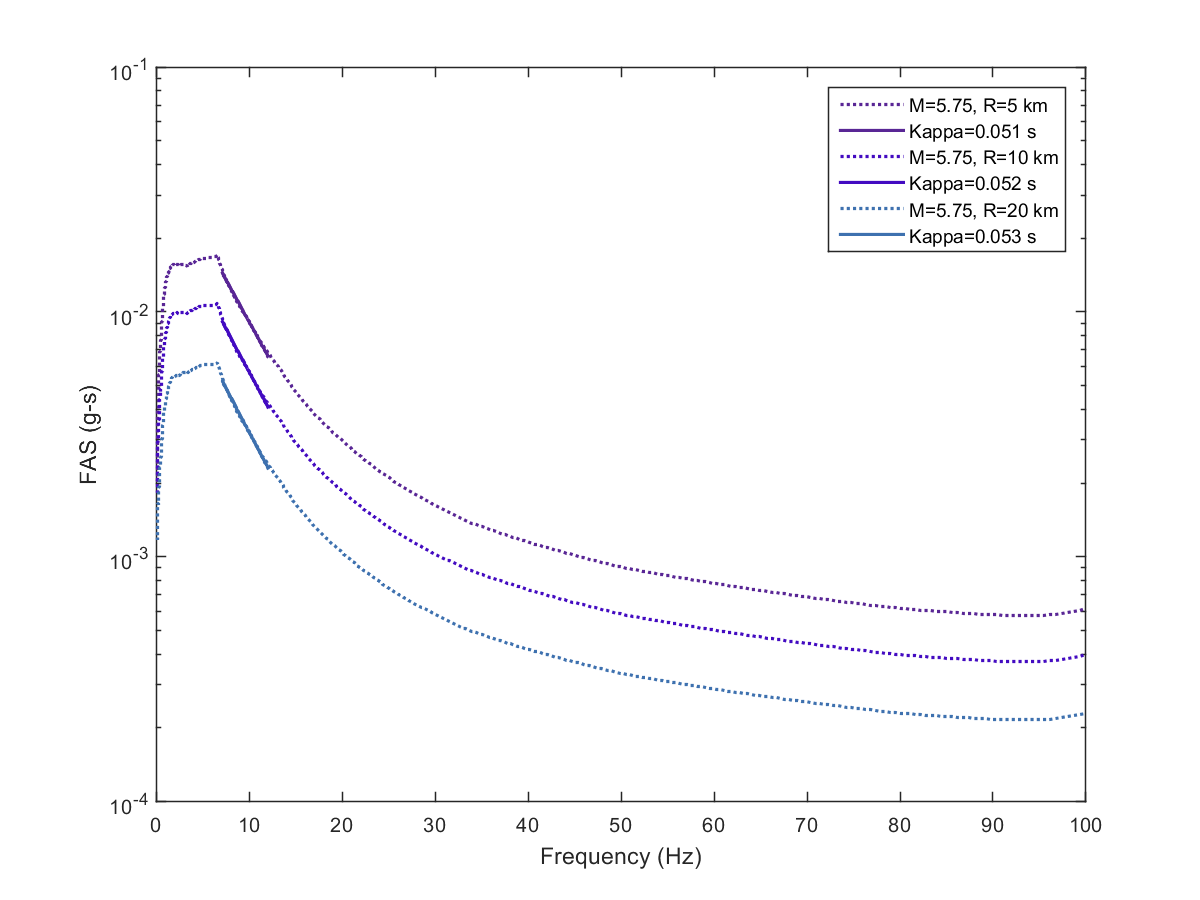

Figure S23. BSSA14 GMPE and M 5.75.

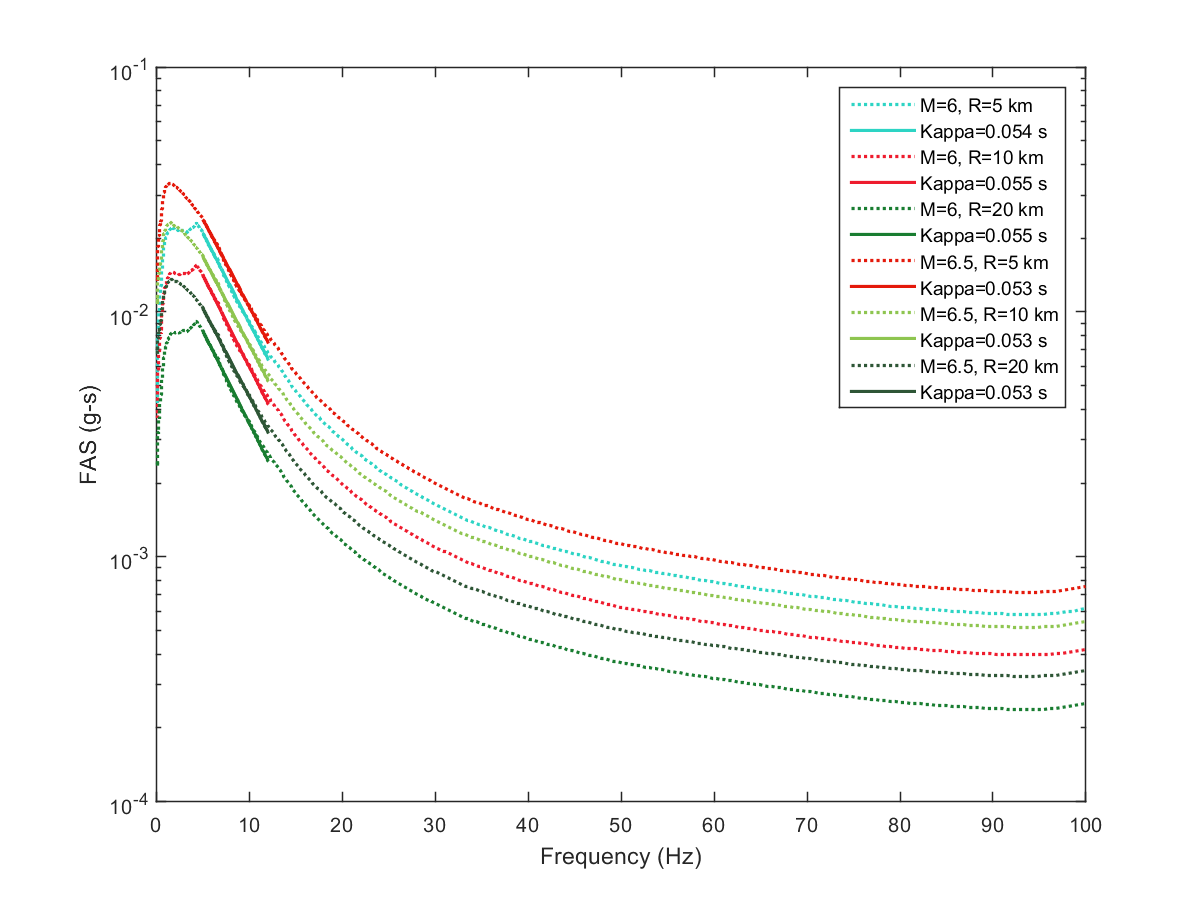

Figure S24. BSSA14 GMPE and M 6 and 6.5.

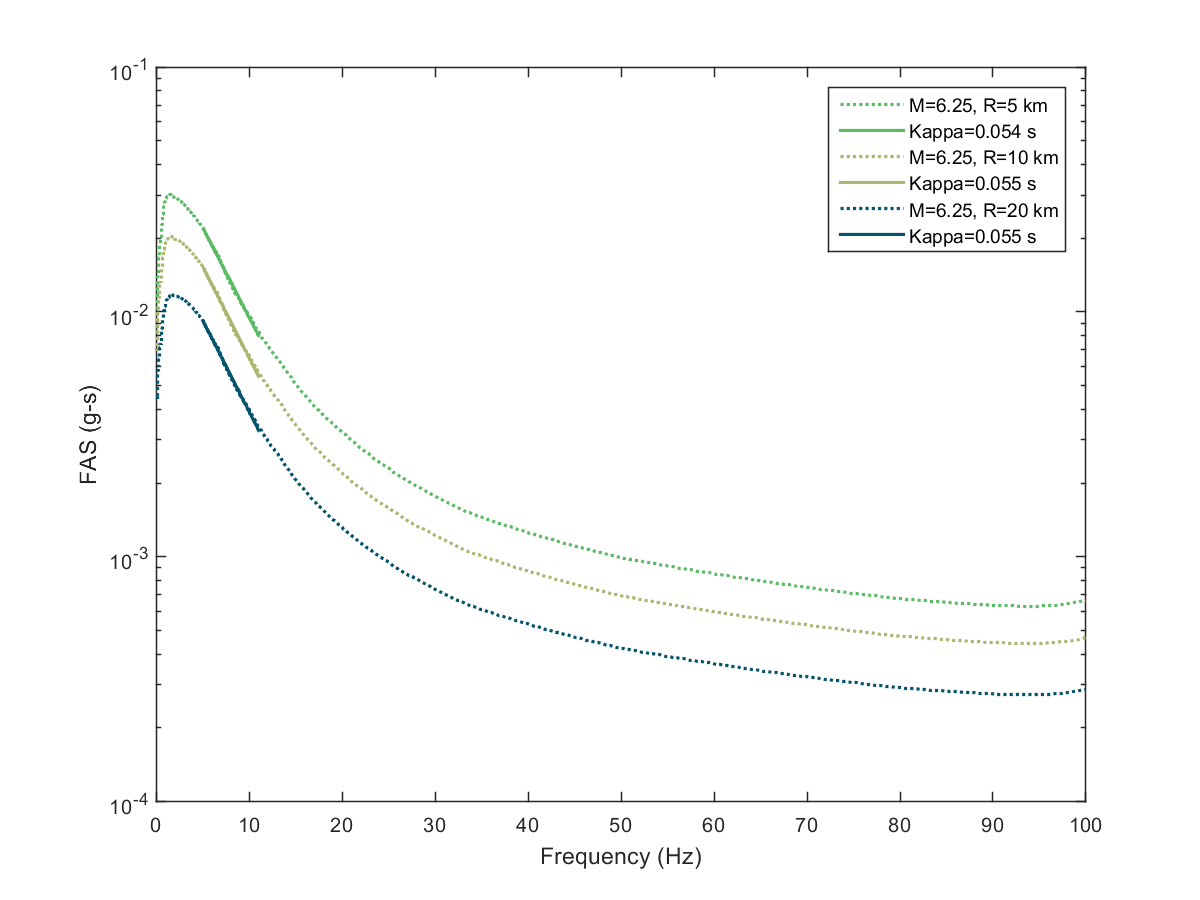

Figure S25. BSSA14 GMPE and M 6.25.

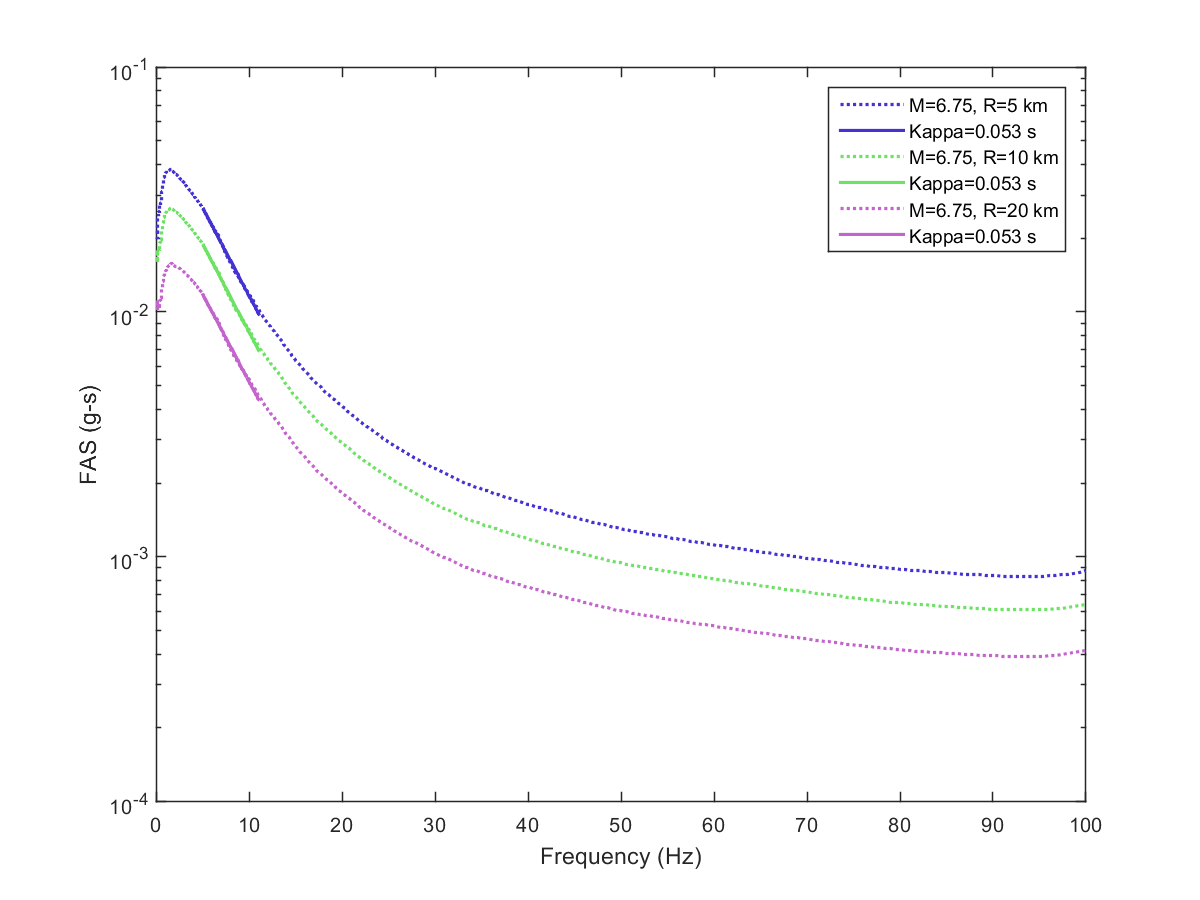

Figure S26. BSSA14 GMPE and M 6.75.

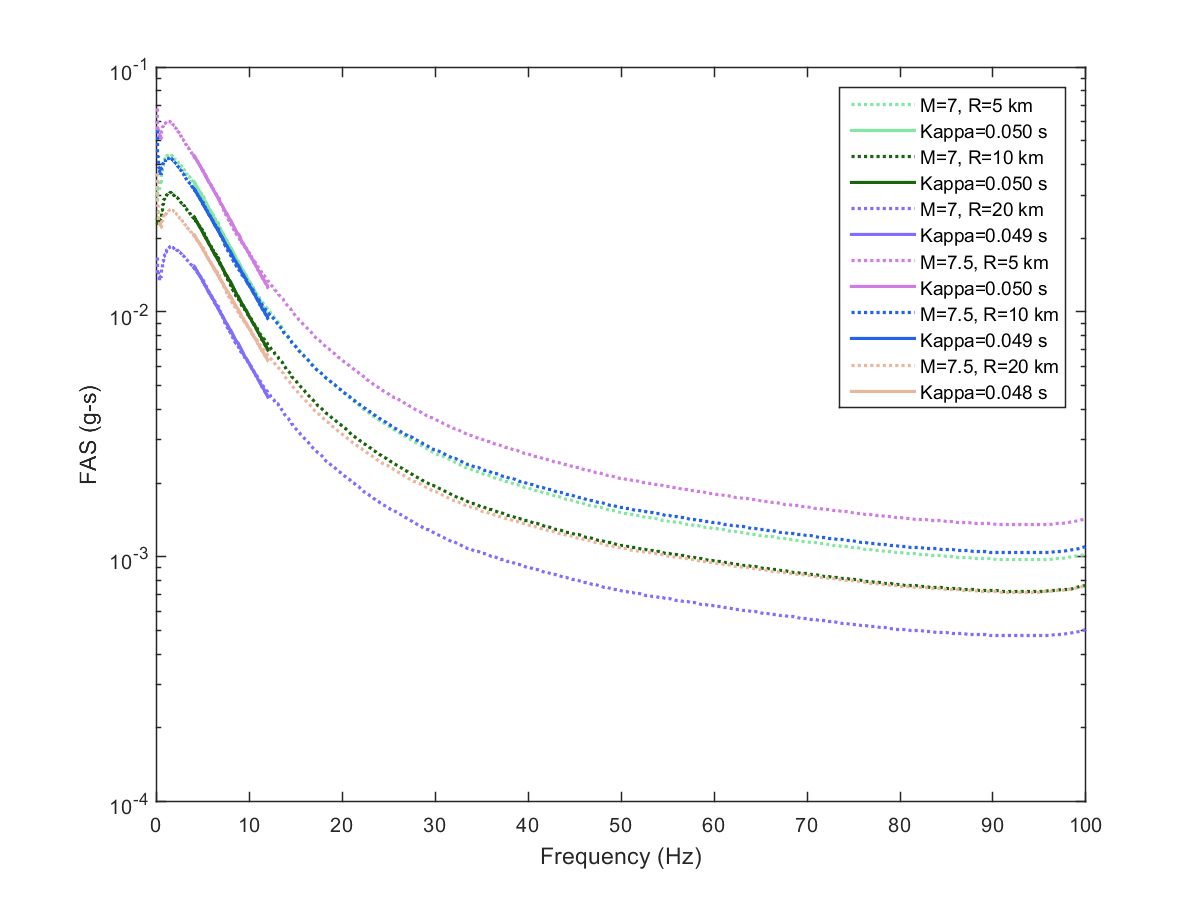

Figure S27. BSSA14 GMPE and M 7 and 7.5.

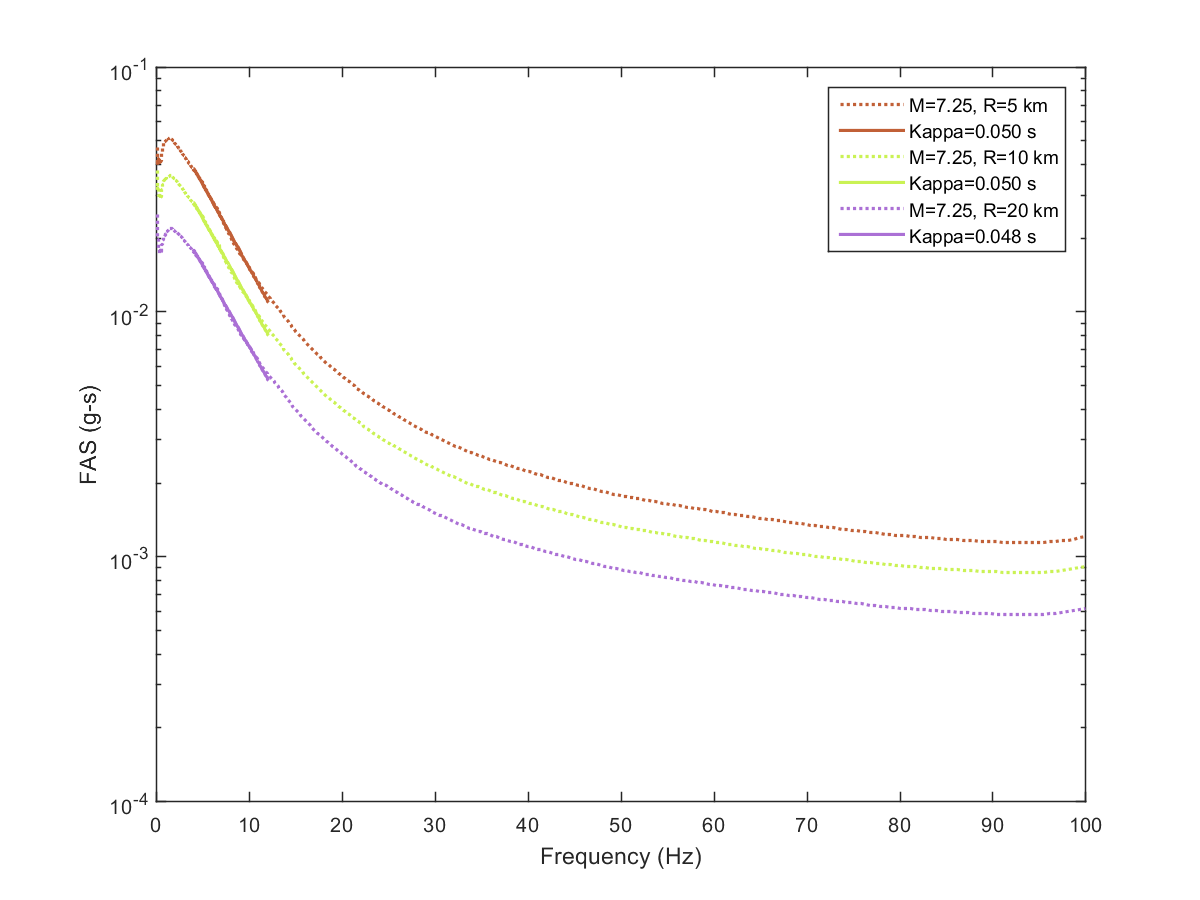

Figure S28. BSSA14 GMPE and M 7.25.

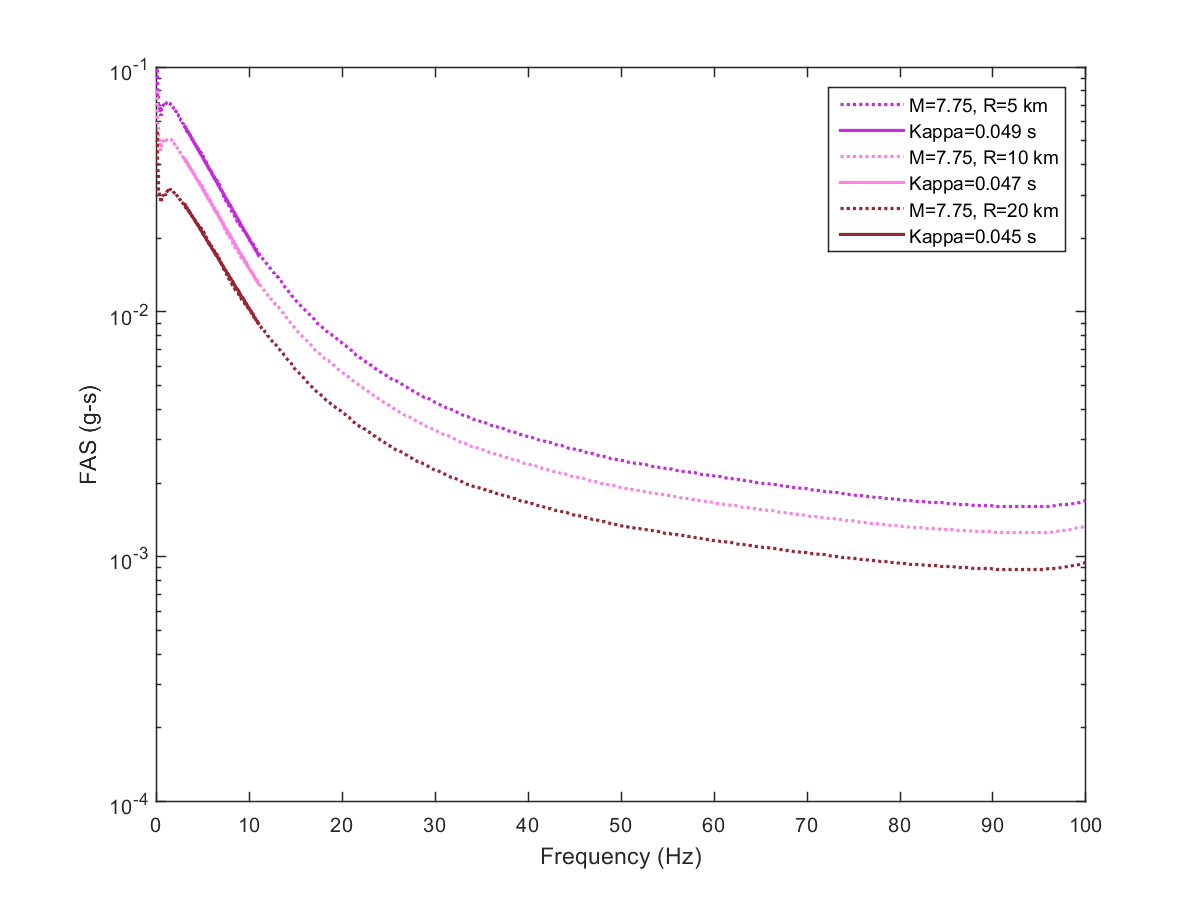

Figure S29. BSSA14 GMPE and M 7.75.

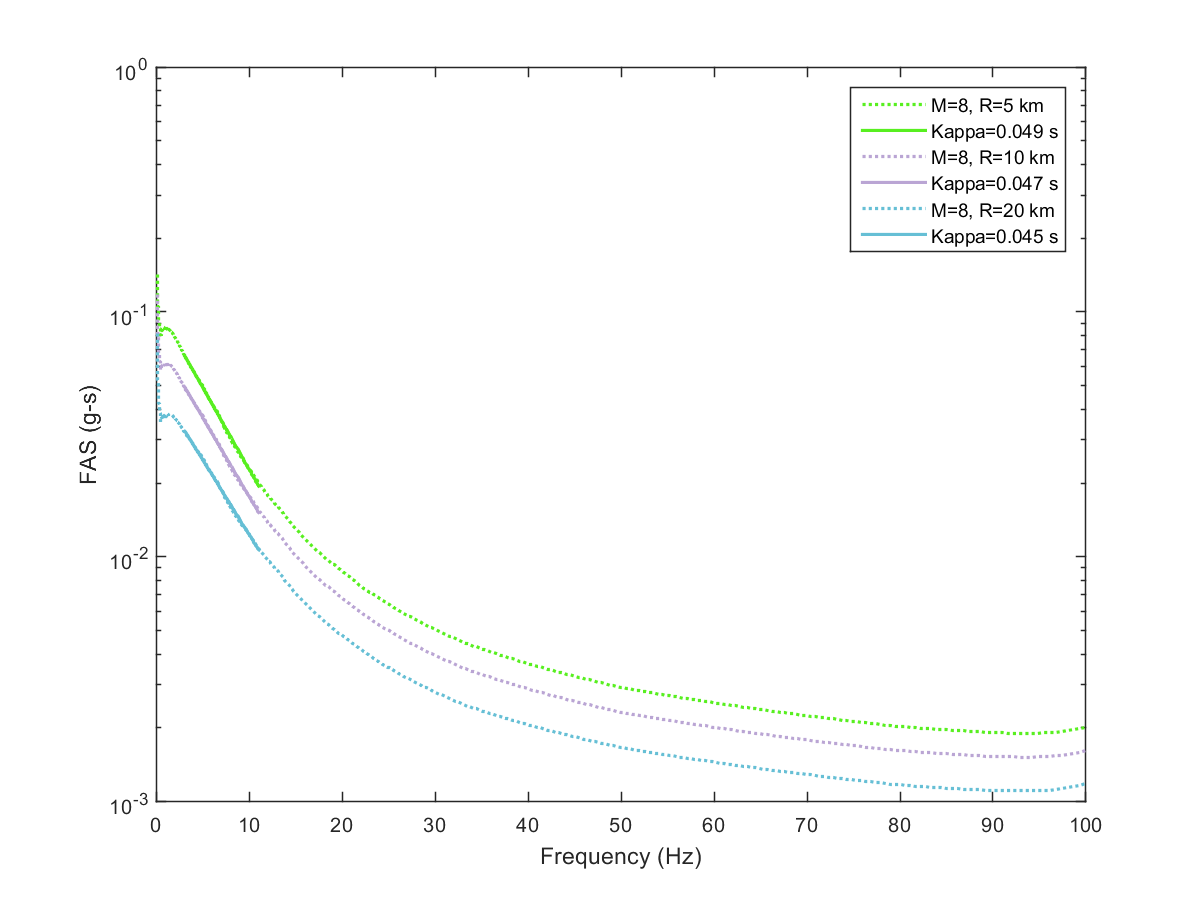

Figure S30. BSSA14 GMPE and M 8.

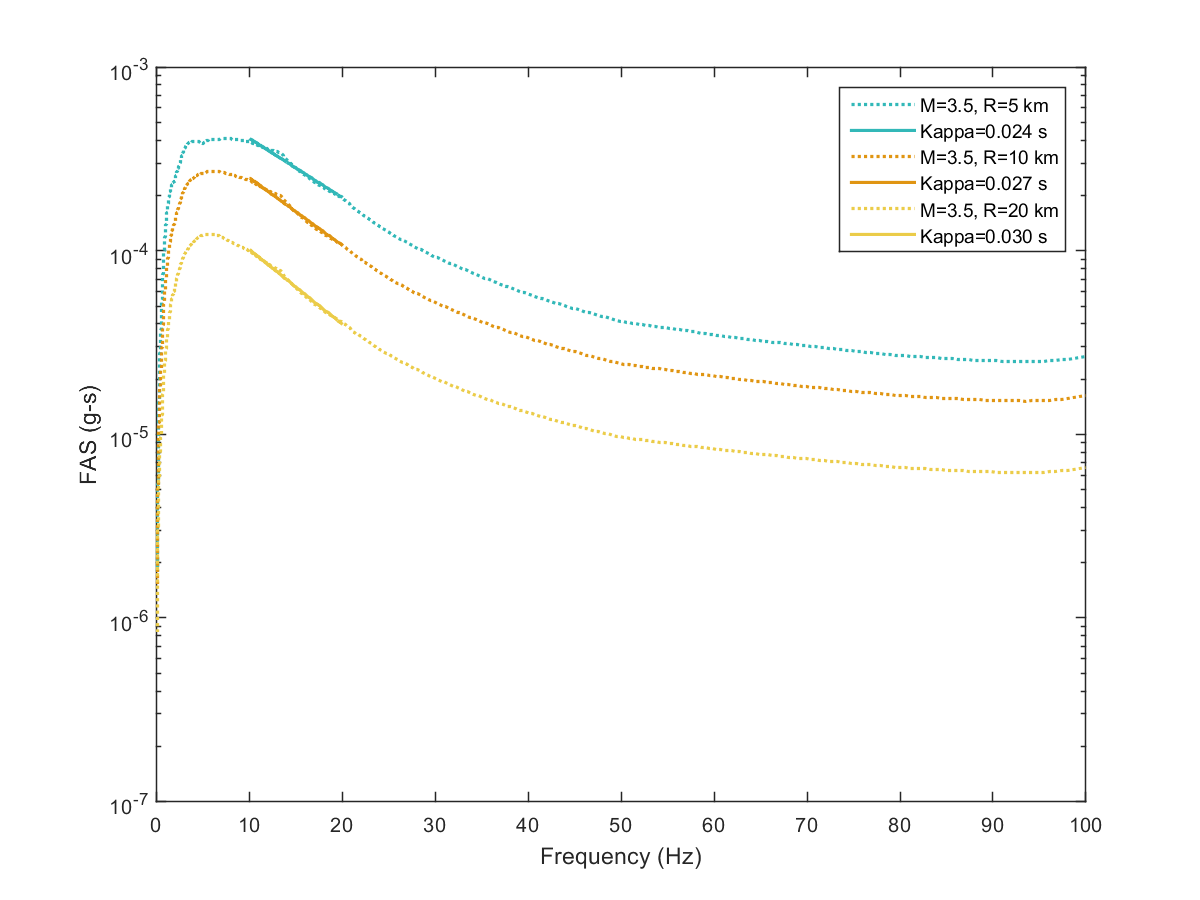

Figure S31. CB14 GMPE and M 3.5.

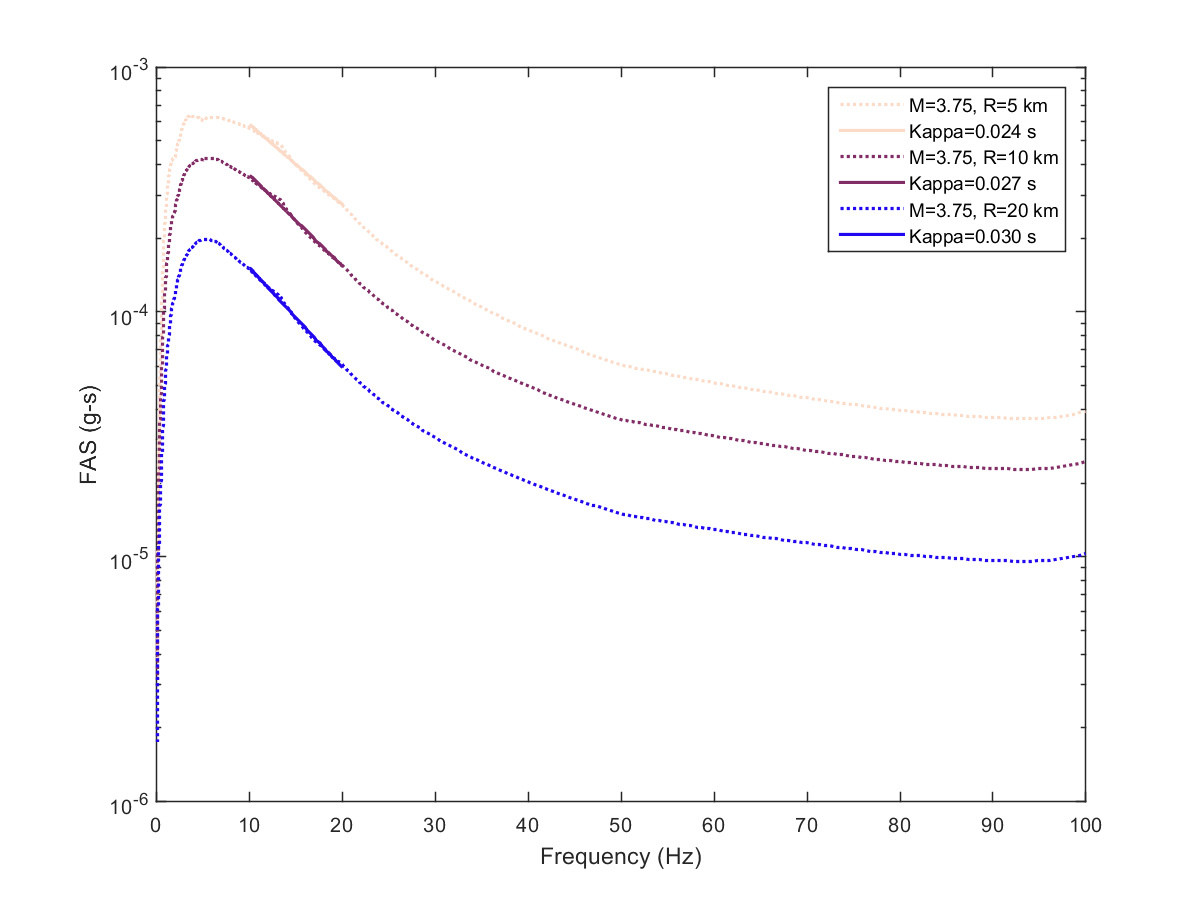

Figure S32. CB14 GMPE and M 3.75.

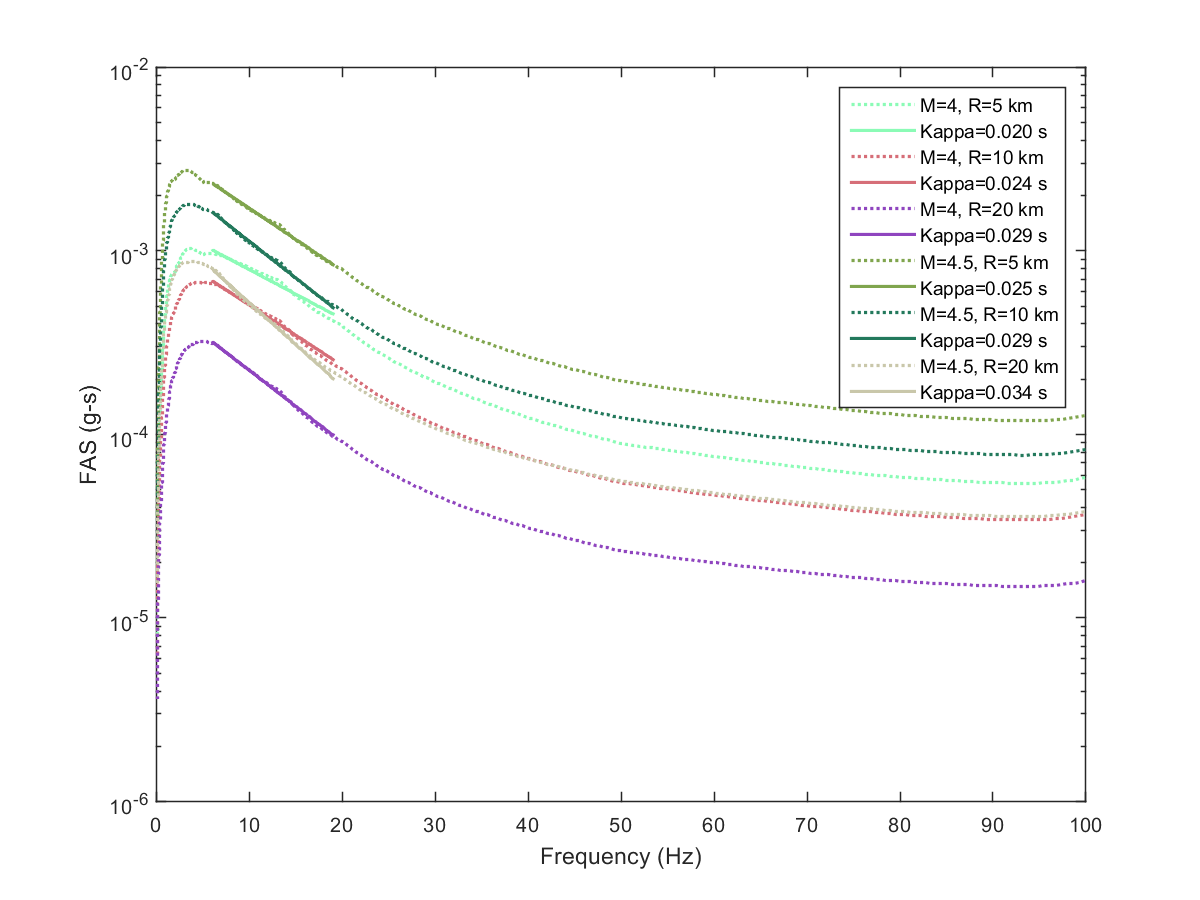

Figure S33. CB14 GMPE and M 4 and 4.5.

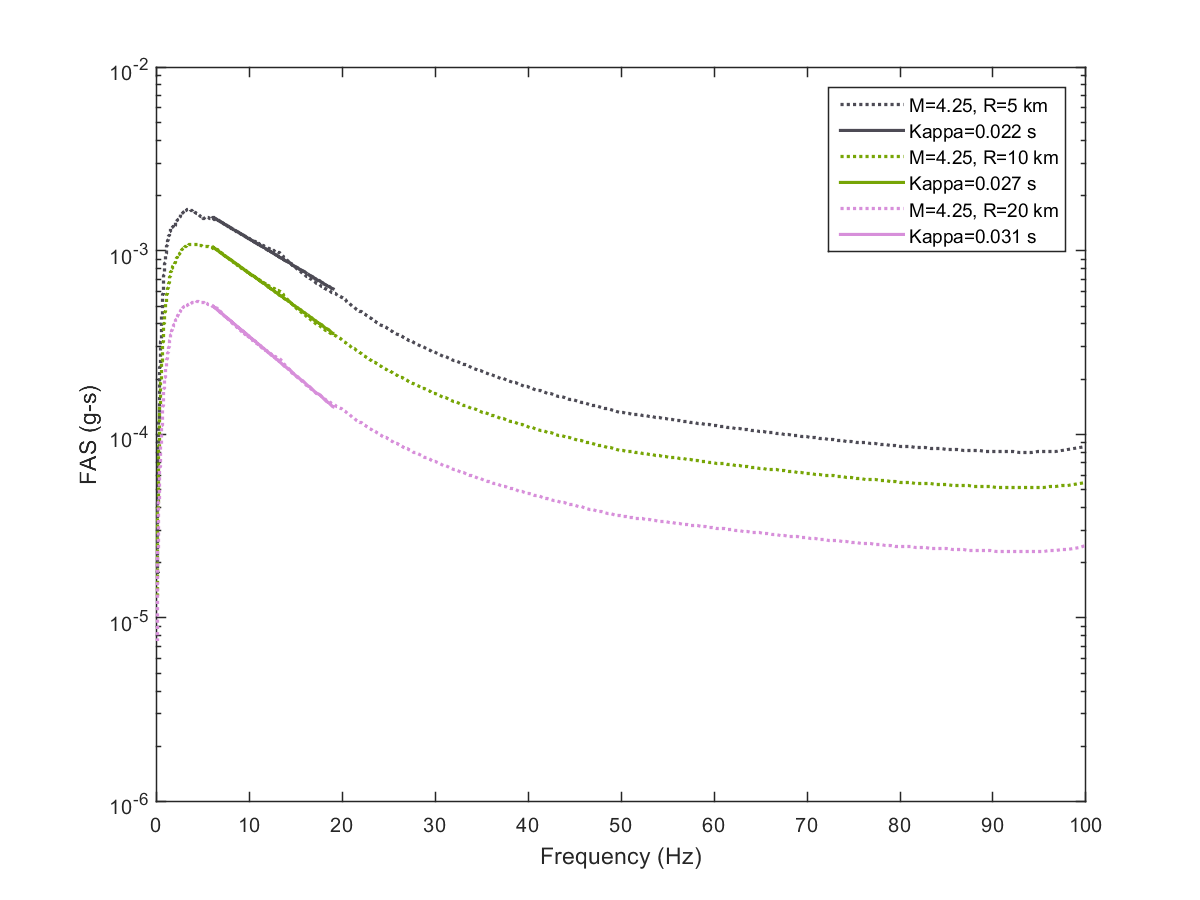

Figure S34. CB14 GMPE and M 4.25.

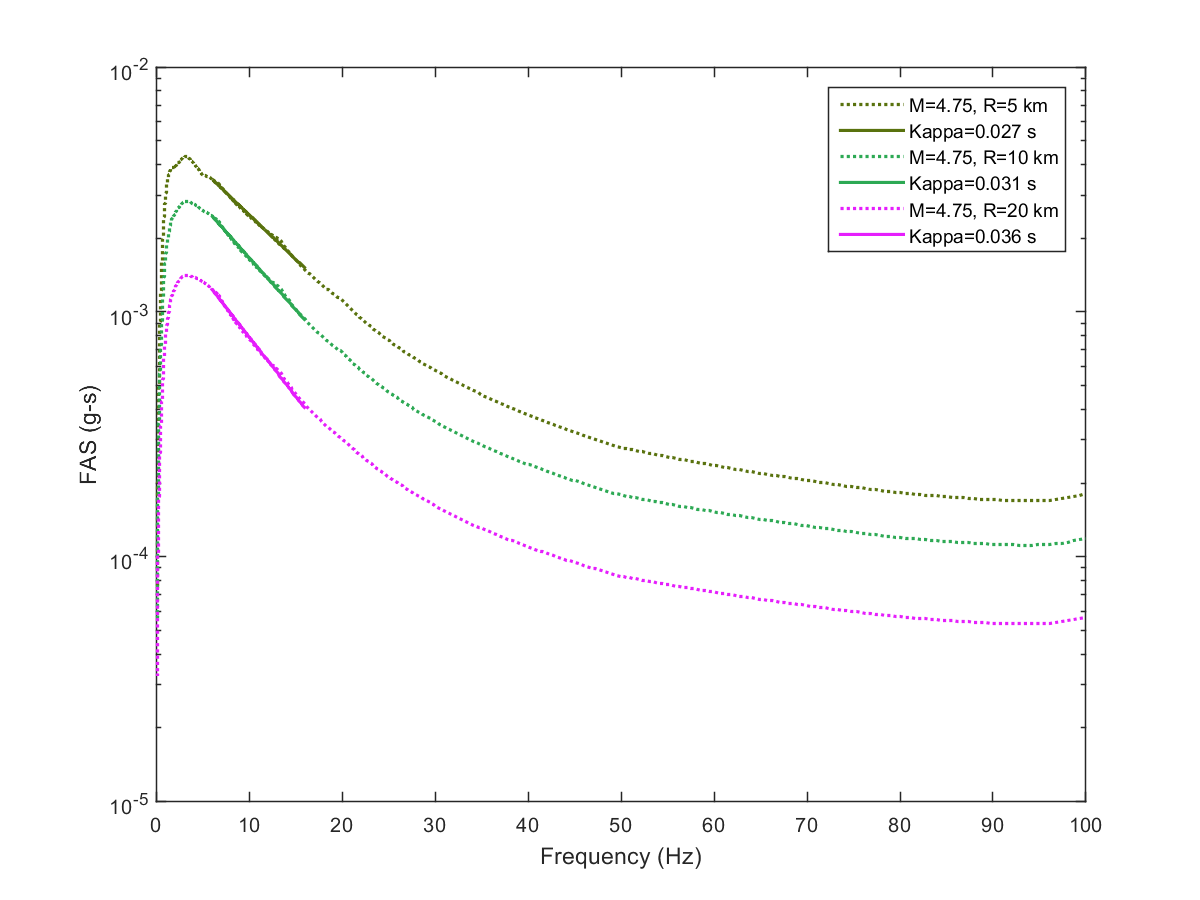

Figure S35. CB14 GMPE and M 4.75.

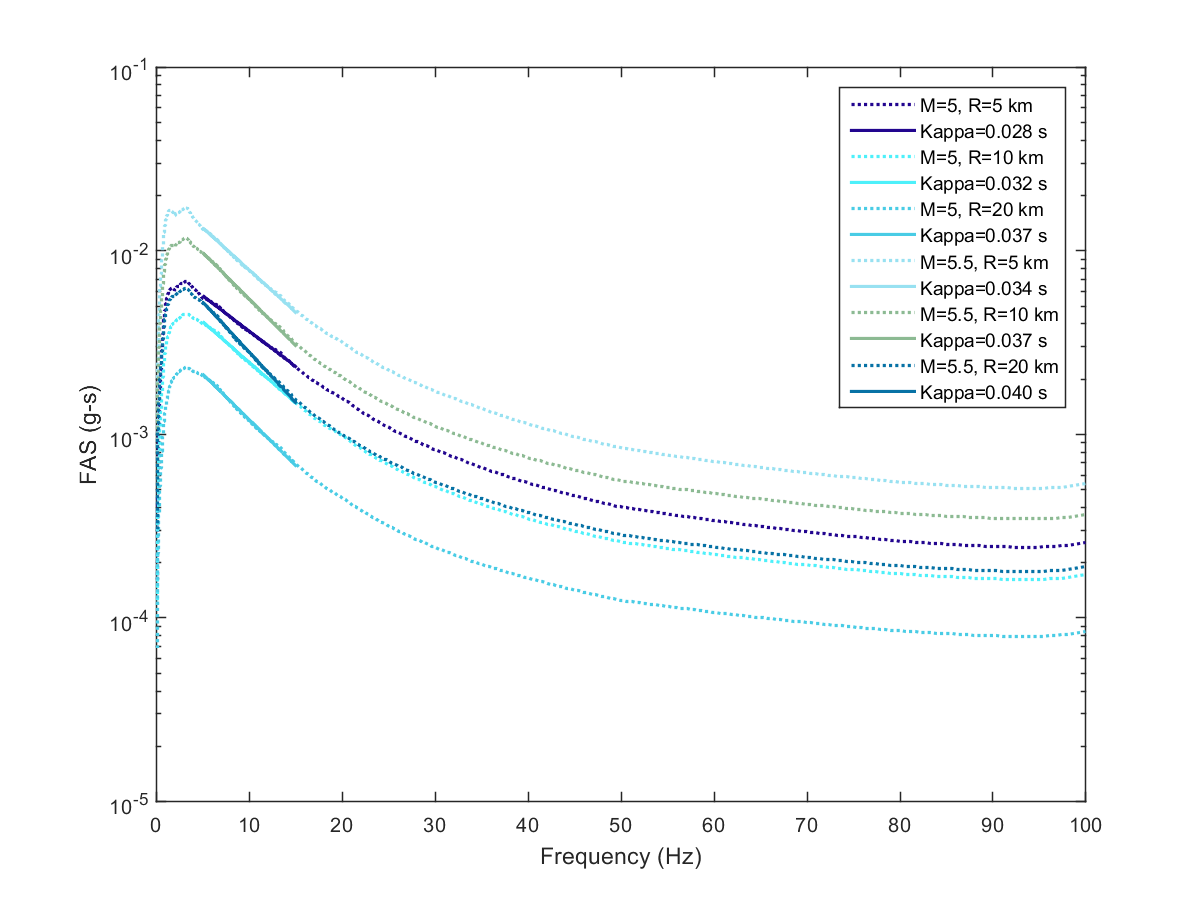

Figure S36. CB14 GMPE and M 5 and 5.5.
Figure S37. CB14 GMPE and M 5.25.
Figure S38. CB14 GMPE and M 5.75.

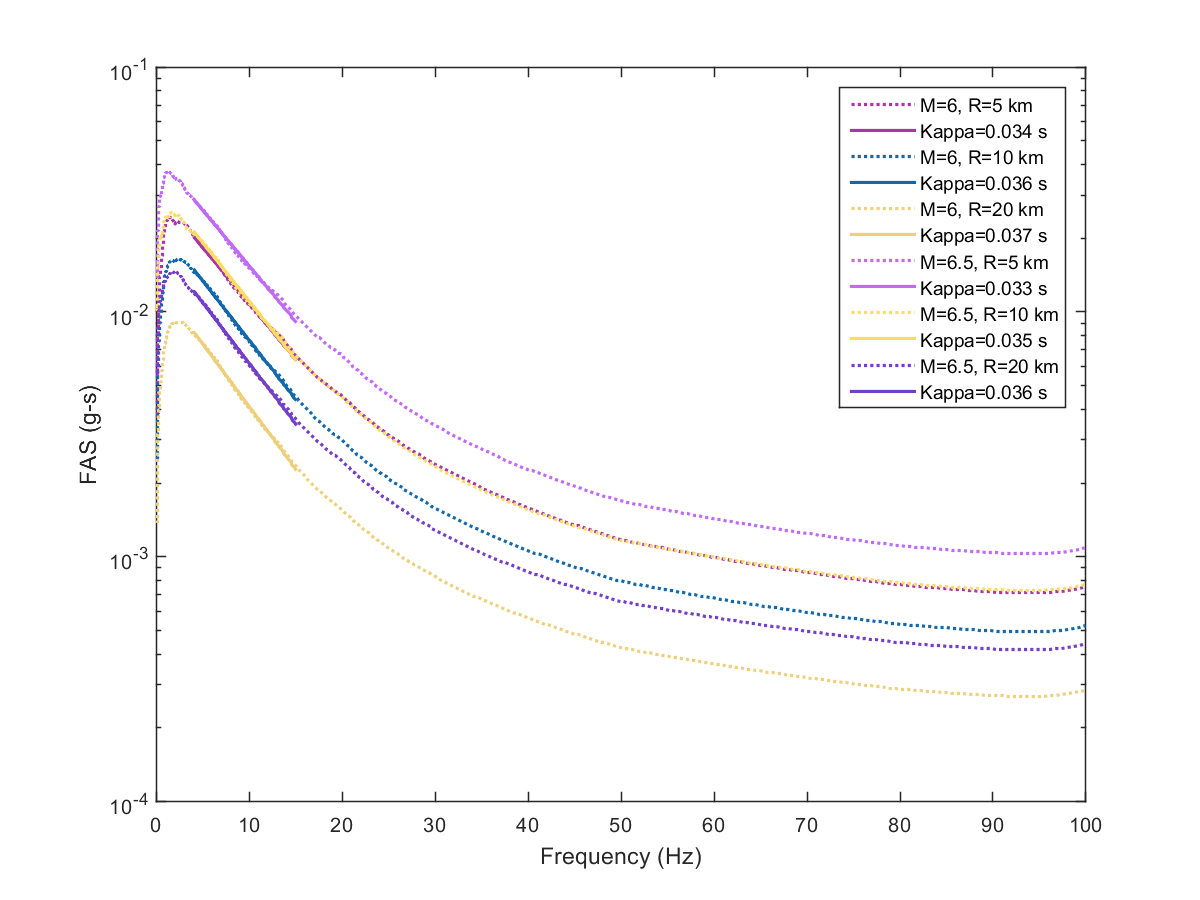

Figure S39. CB14 GMPE and M 6 and 6.5.
Figure S40. CB14 GMPE and M 6.25.

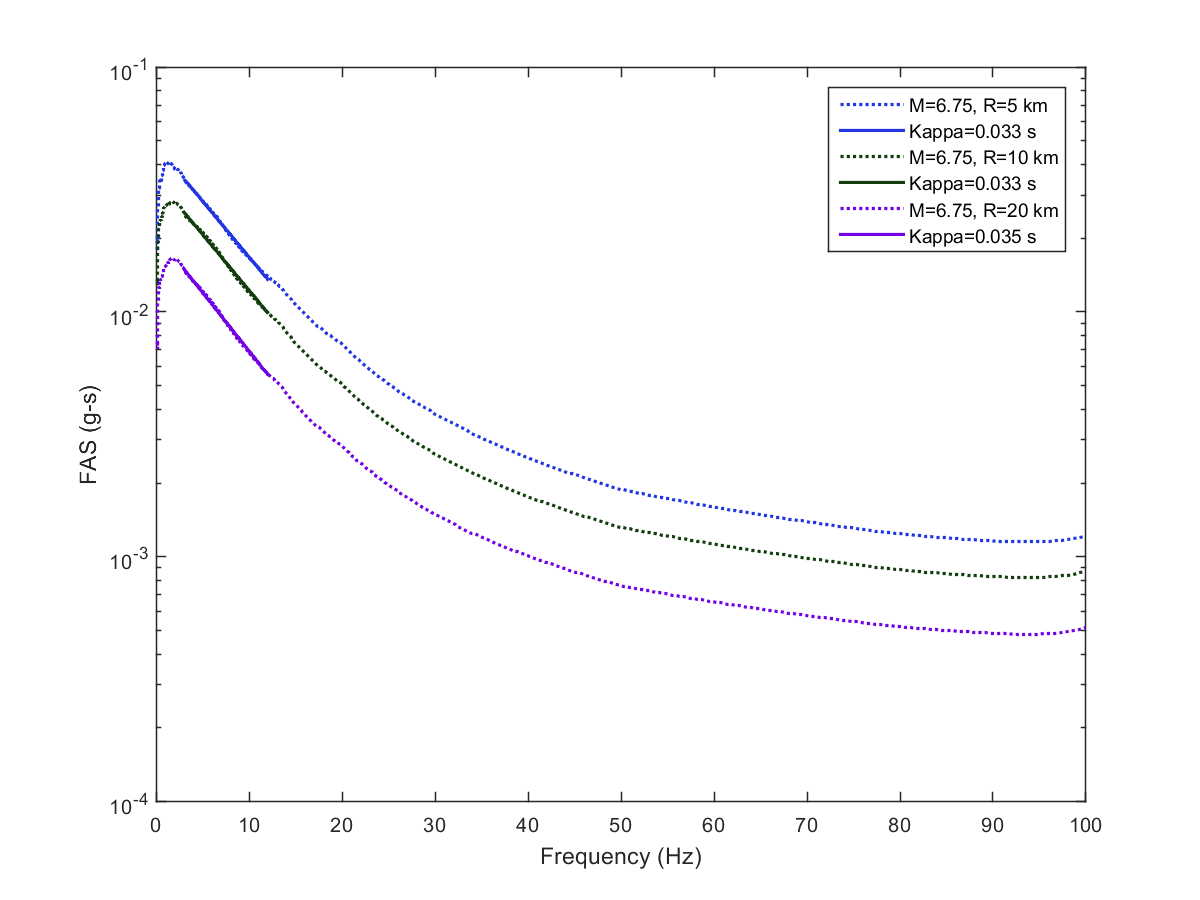

Figure S41. CB14 GMPE and M 6.75.

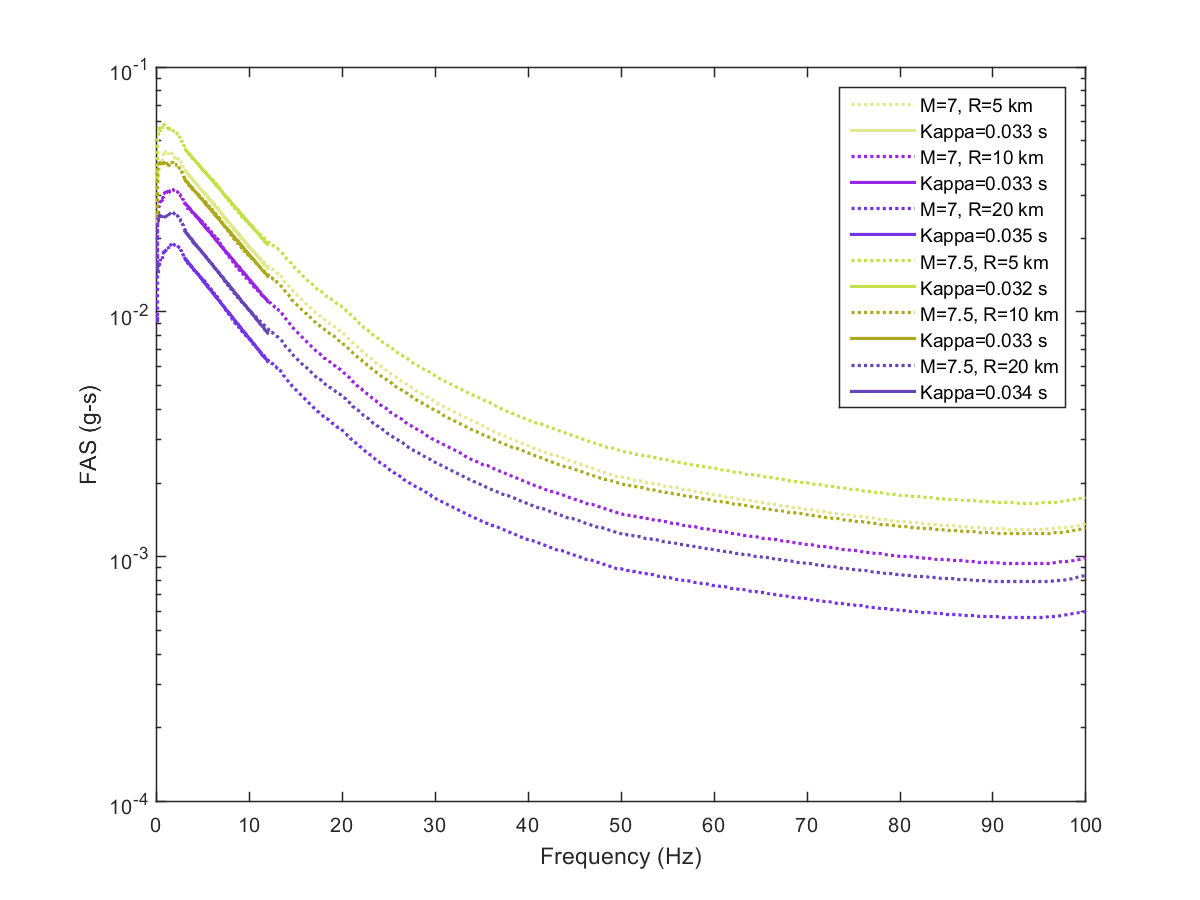

Figure S42. CB14 GMPE and M 7 and 7.5.

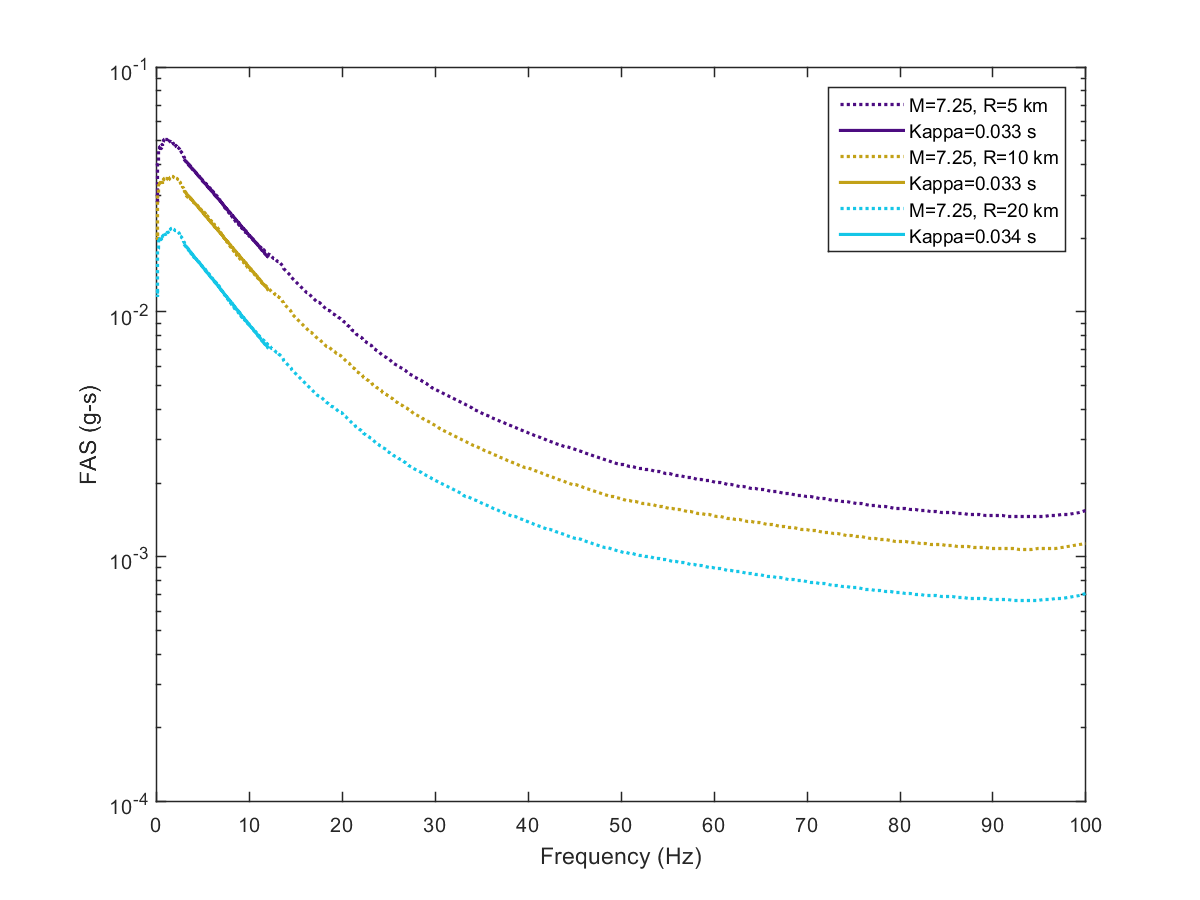

Figure S43. CB14 GMPE and M 7.25.

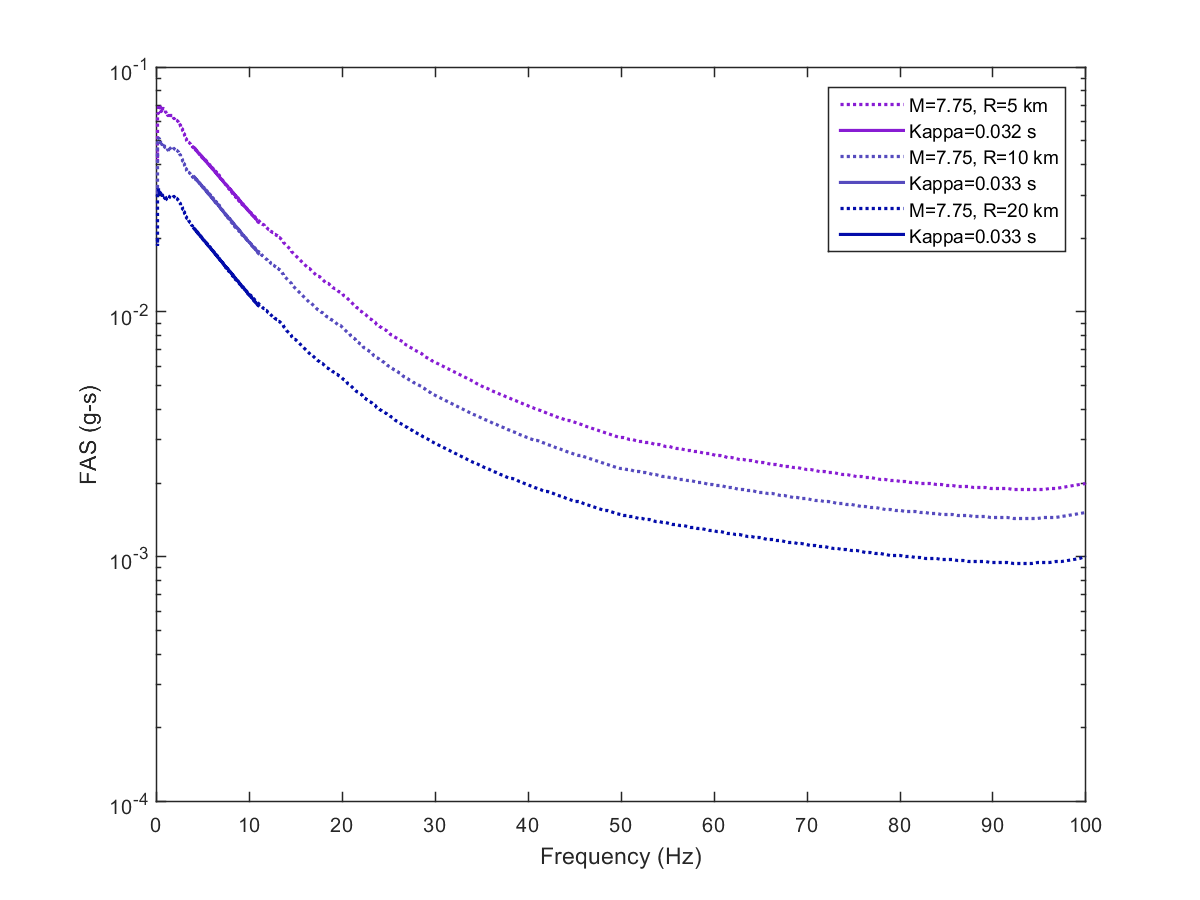

Figure S44. CB14 GMPE and M 7.75.

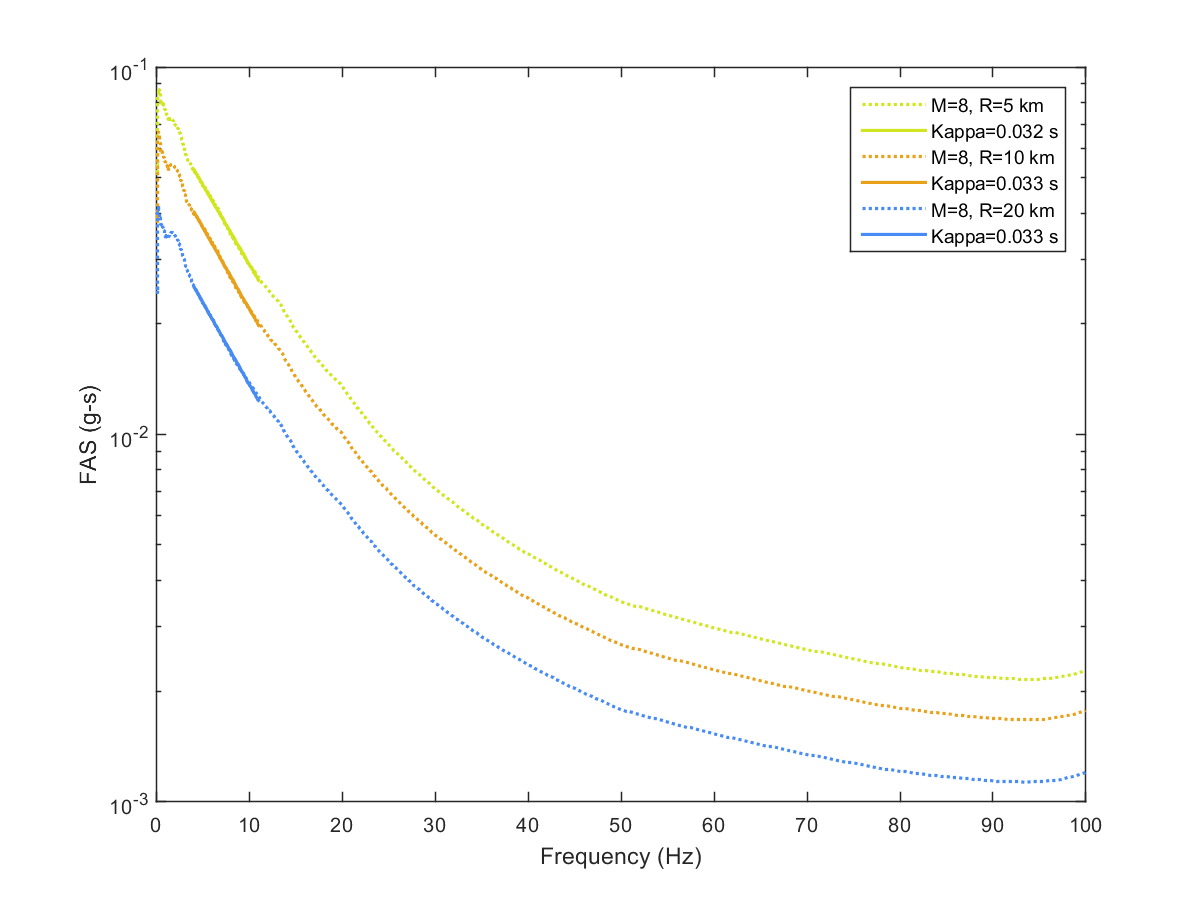

Figure S45. CB14 GMPE and M 8.

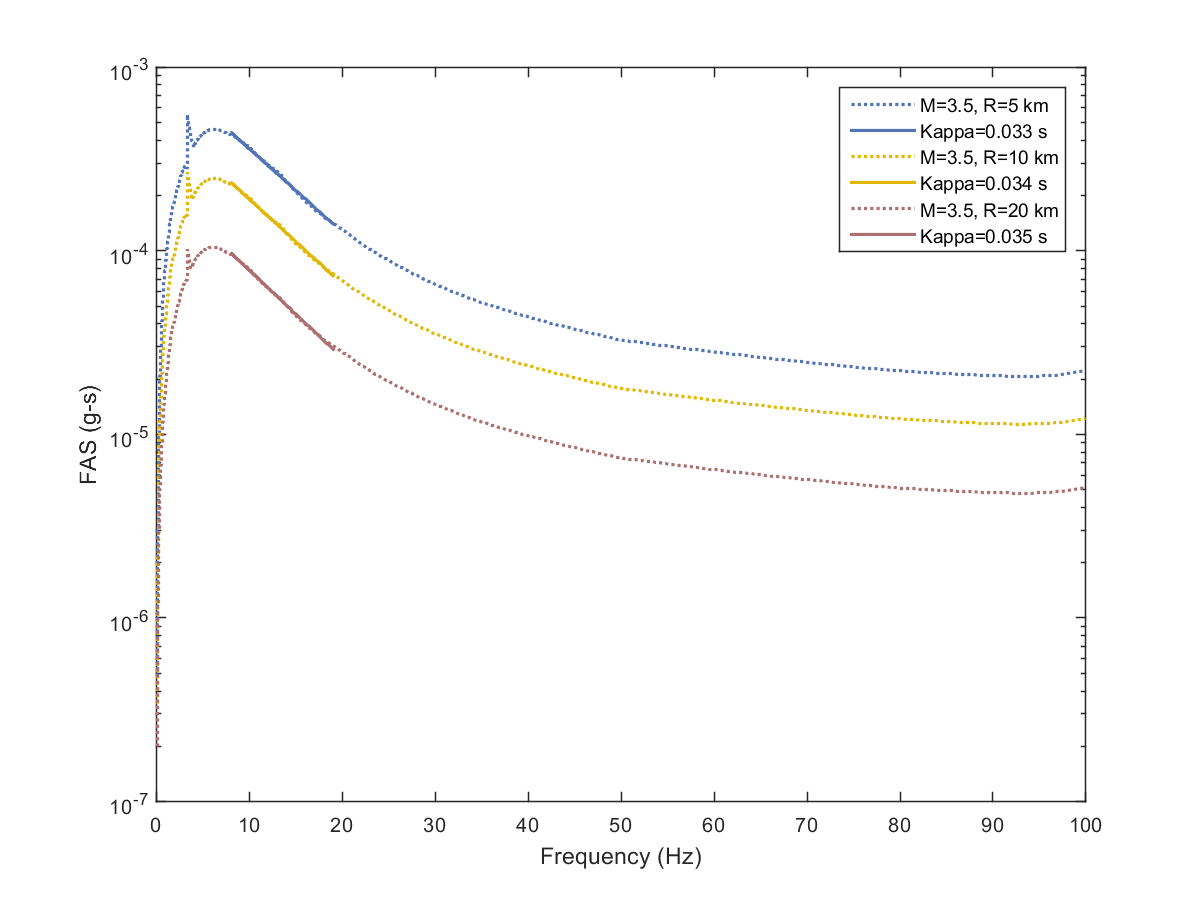

Figure S46. CY14 GMPE and M 3.5.
Figure S47. CY14 GMPE and M 3.75.

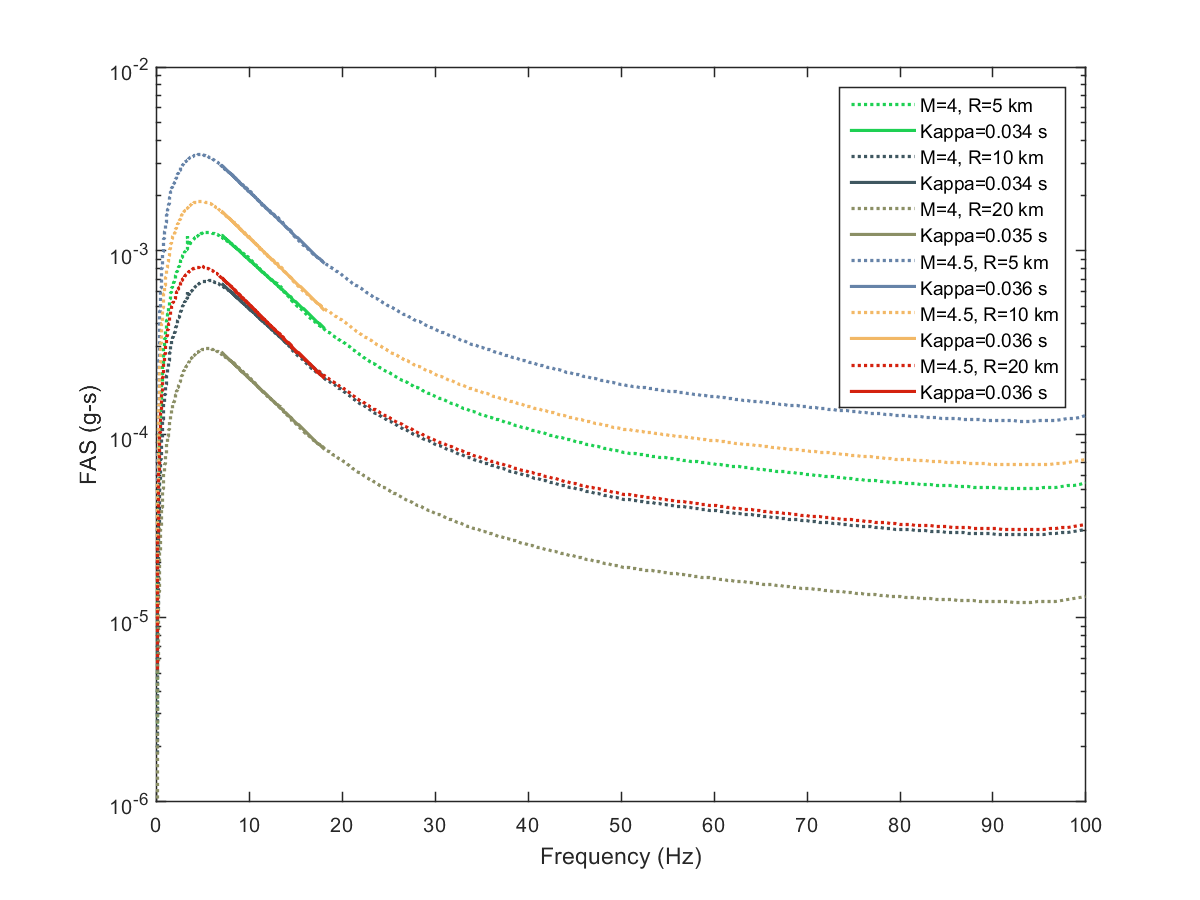

Figure S48. CY14 GMPE and M 4 and 4.5.

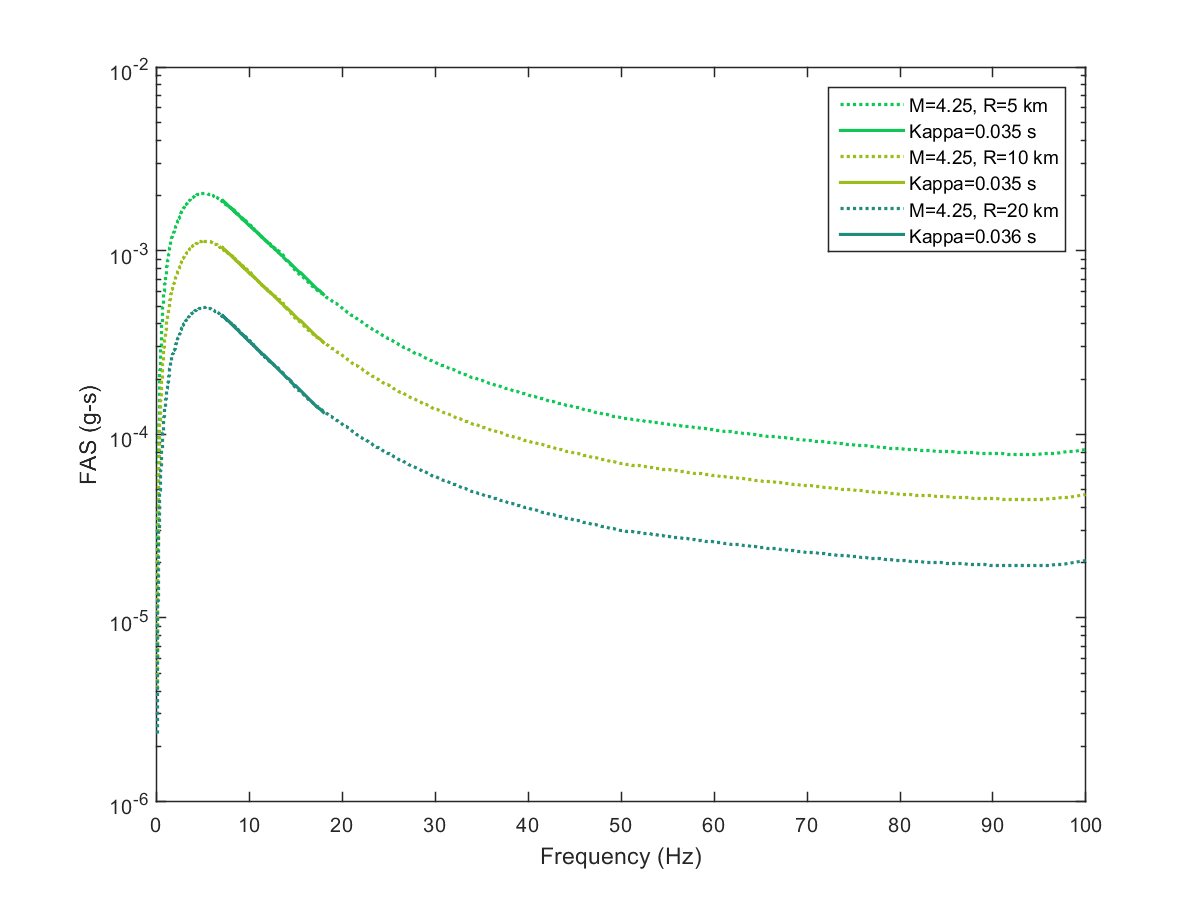

Figure S49. CY14 GMPE and M 4.25.

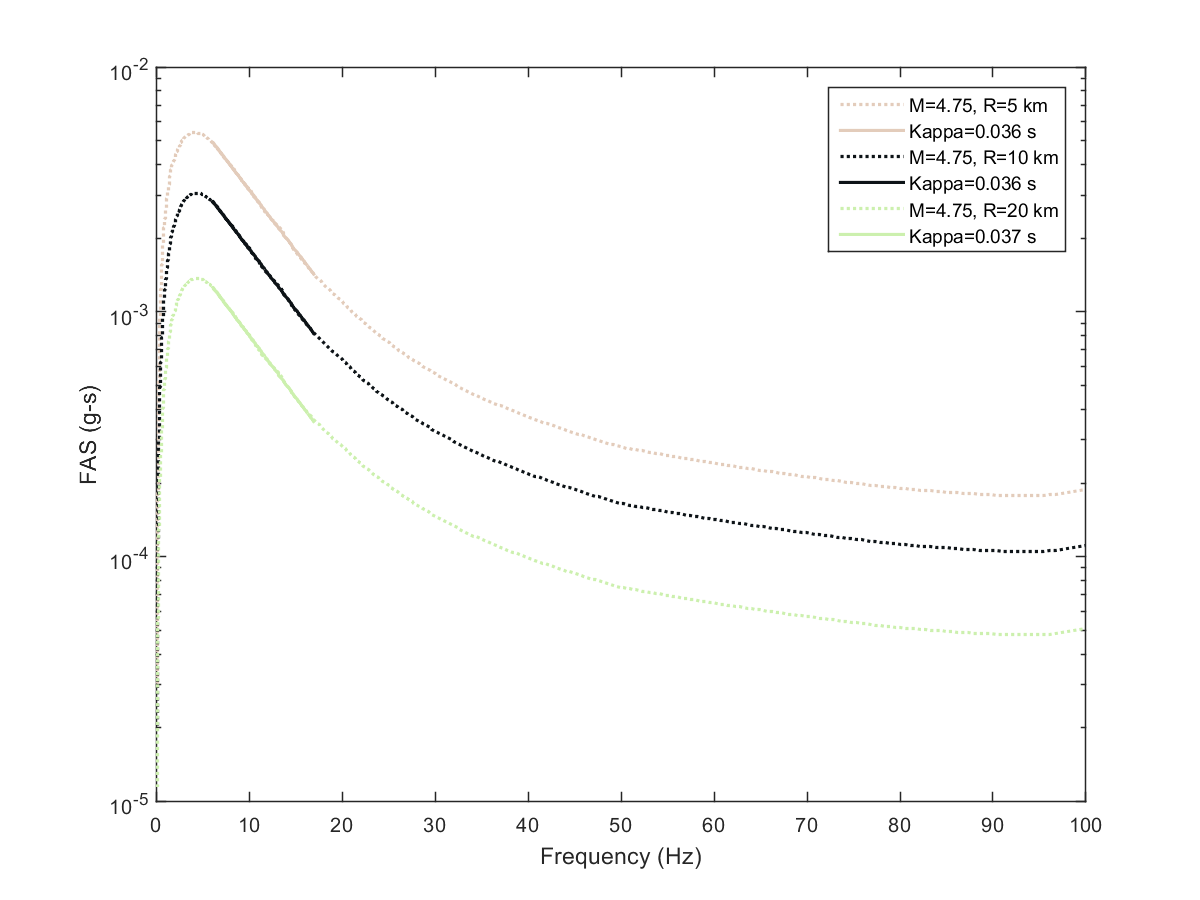

Figure S50. CY14 GMPE and M 4.75.

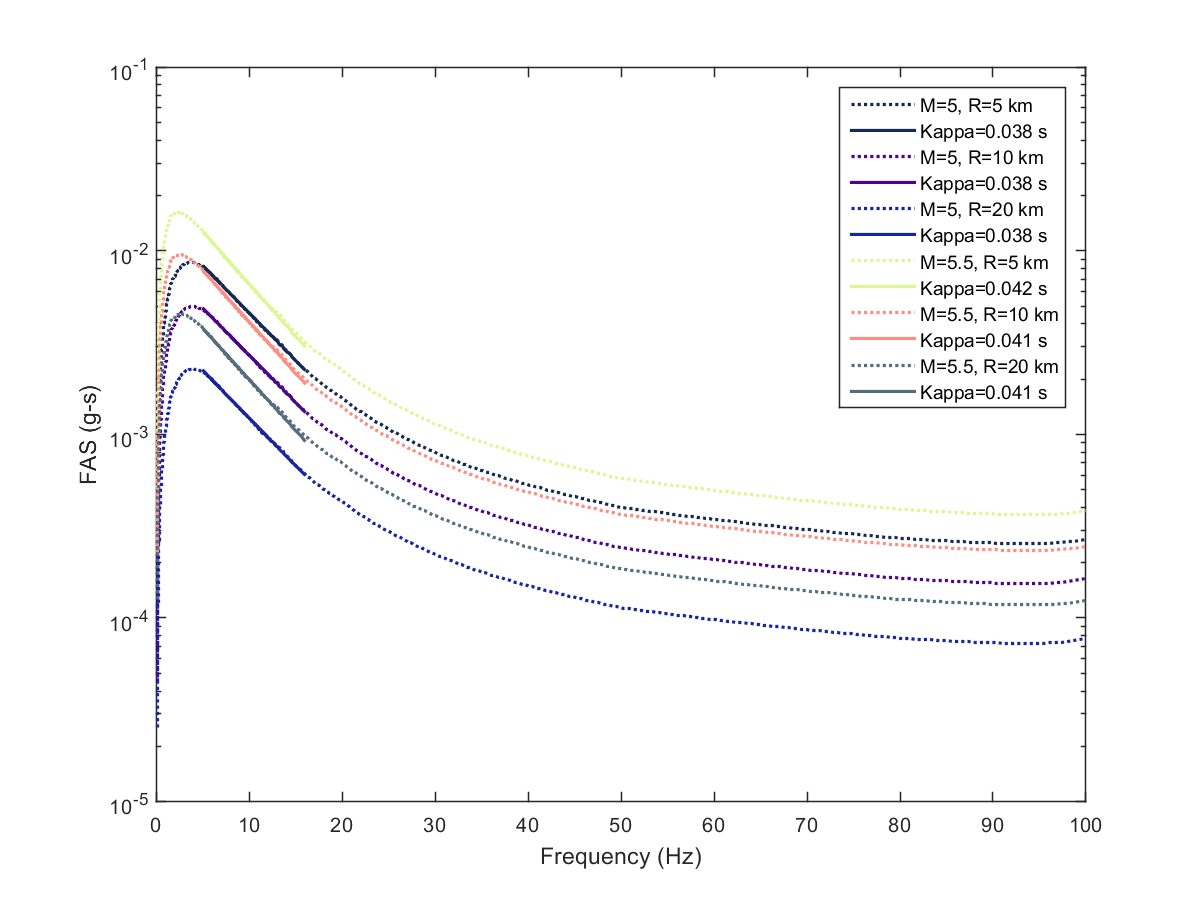

Figure S51. CY14 GMPE and M 5 and 5.5.

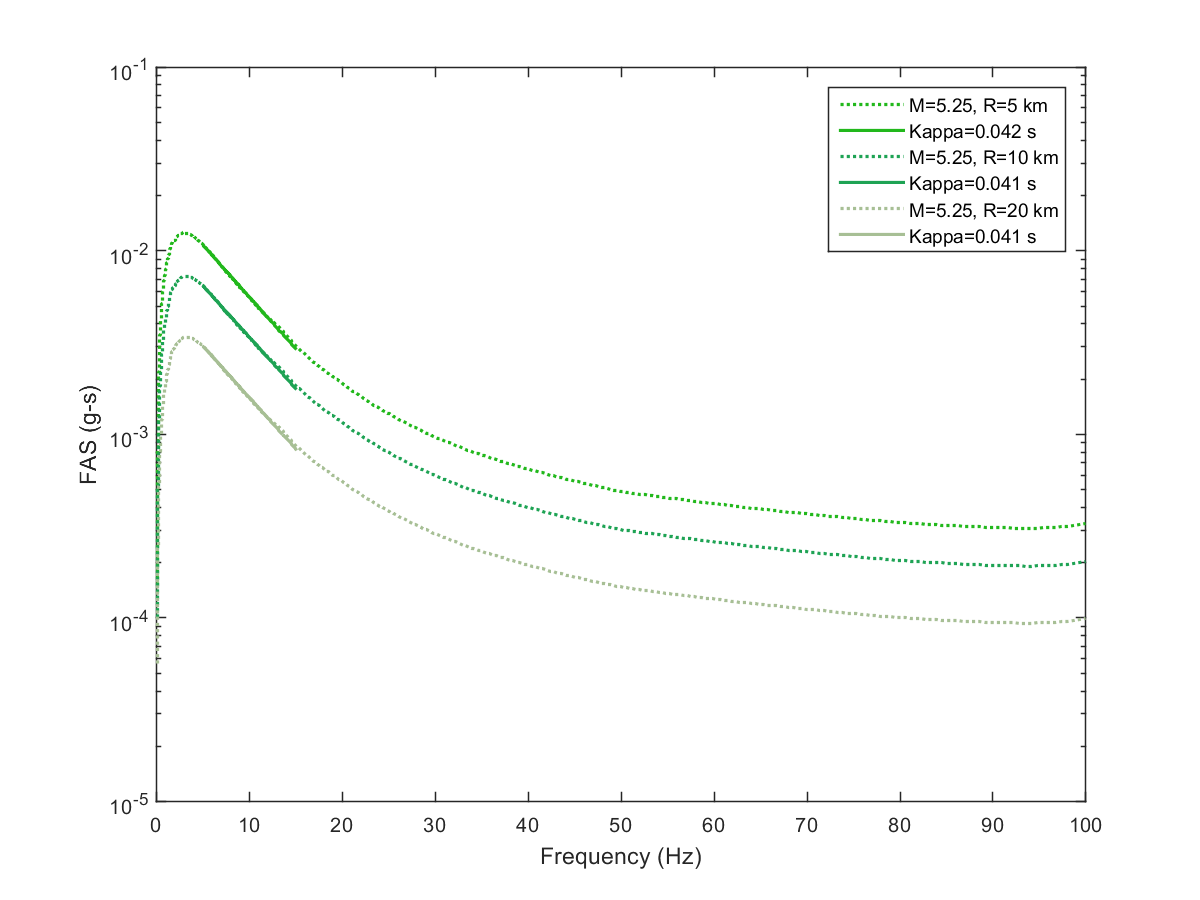

Figure S52. CY14 GMPE and M 5.25.

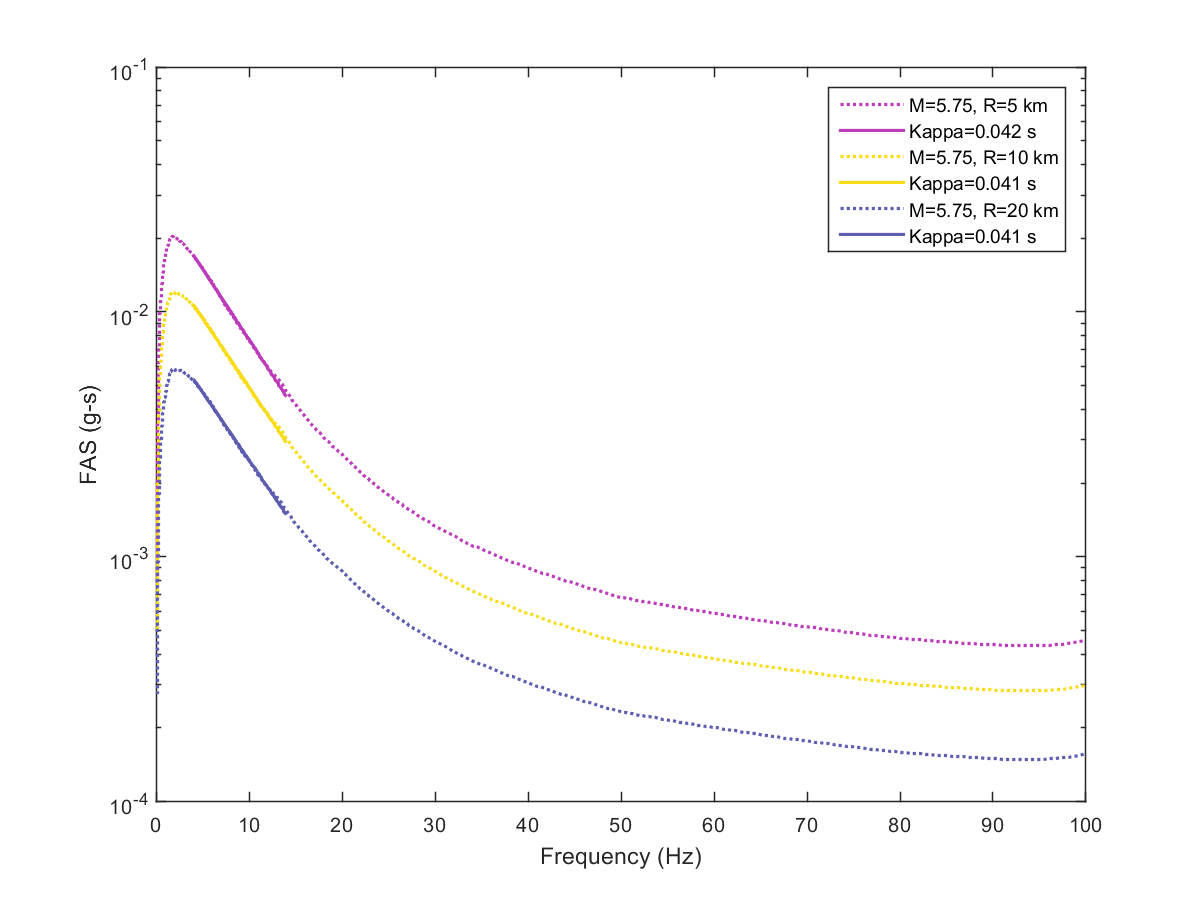

Figure S53. CY14 GMPE and M 5.75.

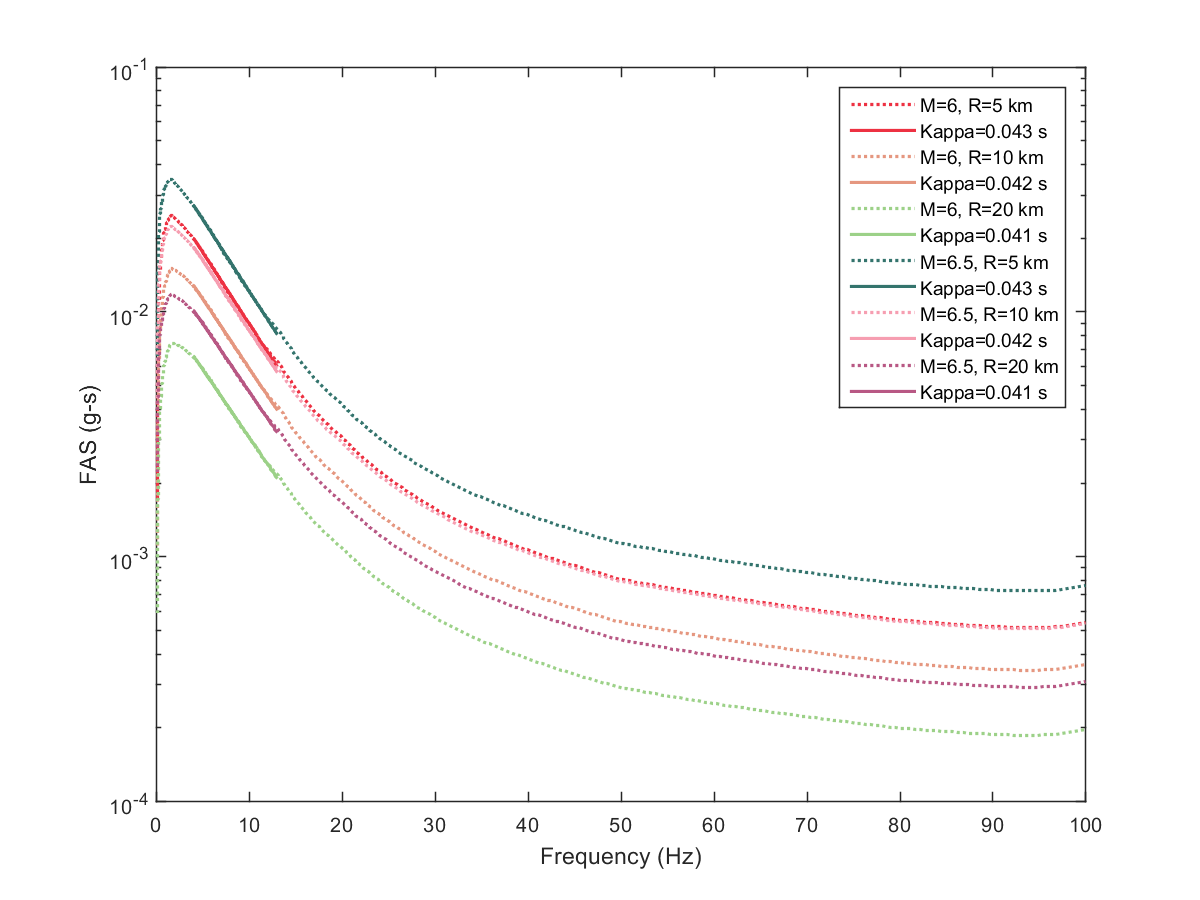

Figure S54. CY14 GMPE and M 6 and 6.5.

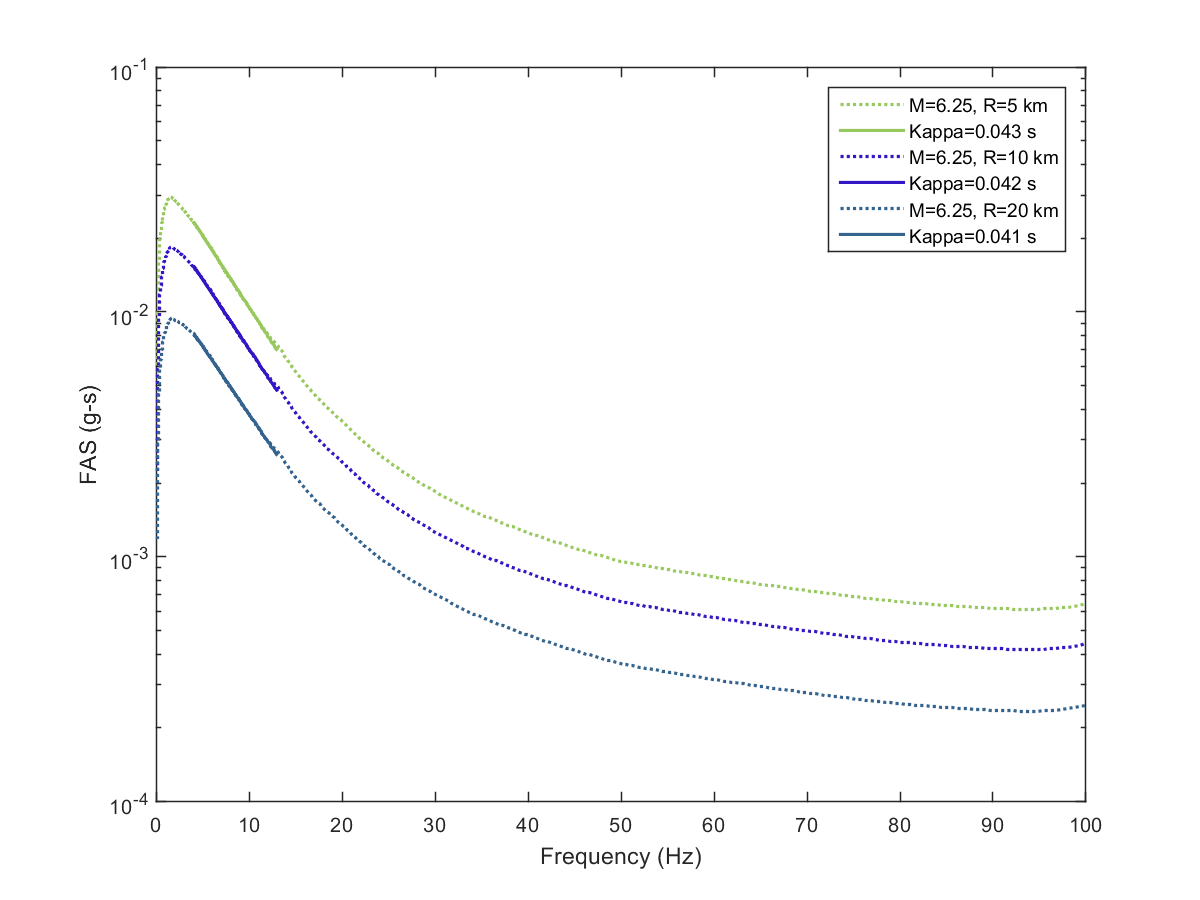

Figure S55. CY14 GMPE and M 6.25.

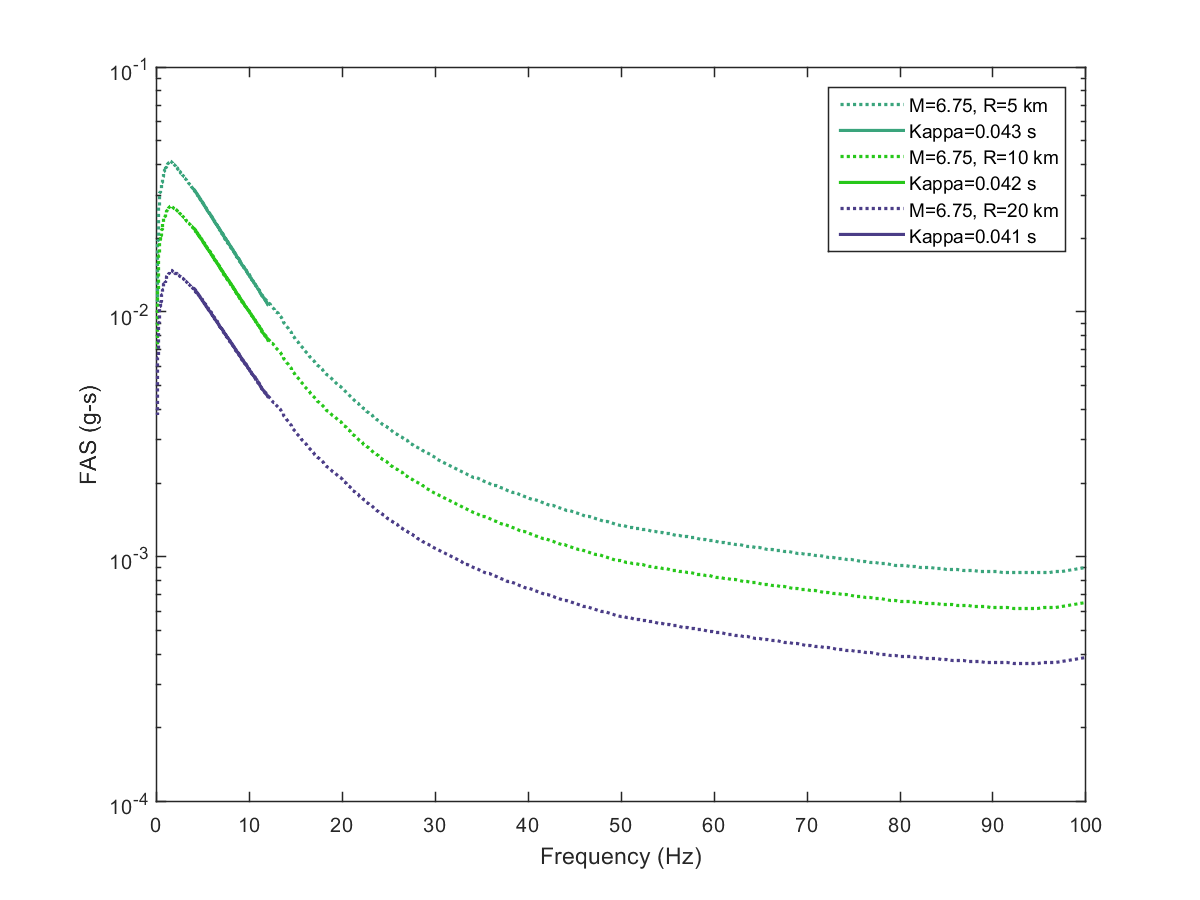

Figure S56. CY14 GMPE and M 6.75.

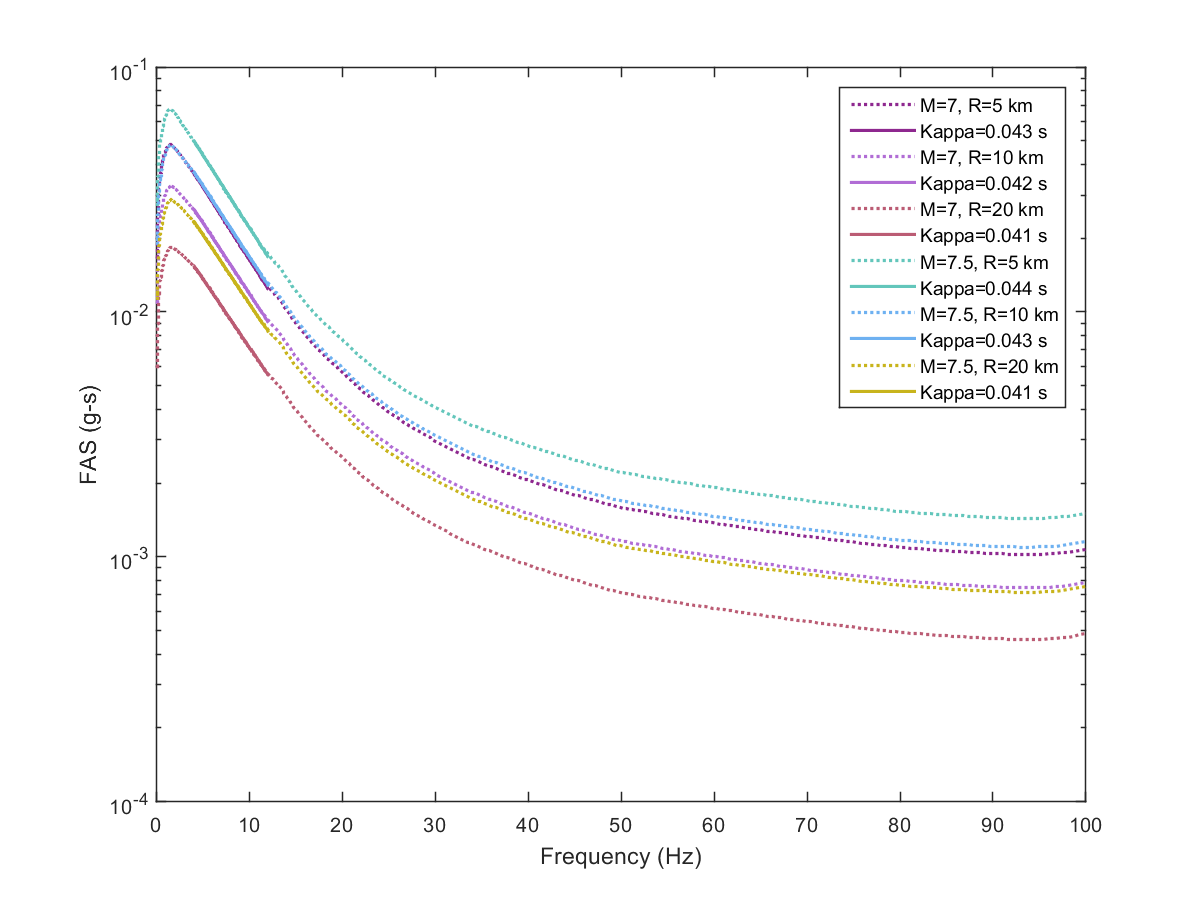

Figure S57. CY14 GMPE and M 7 and 7.5.

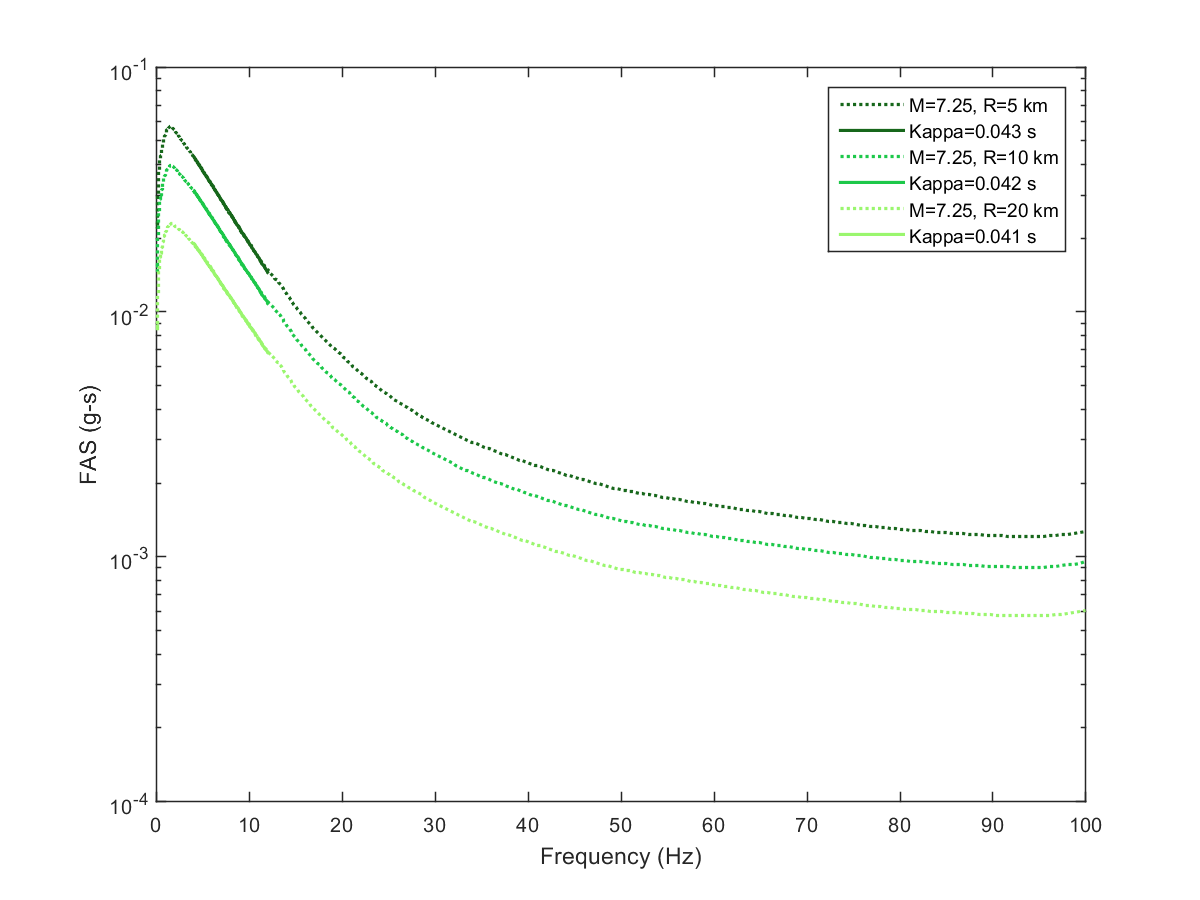

Figure S58. CY14 GMPE and M 7.25.
Figure S59. CY14 GMPE and M 7.75.

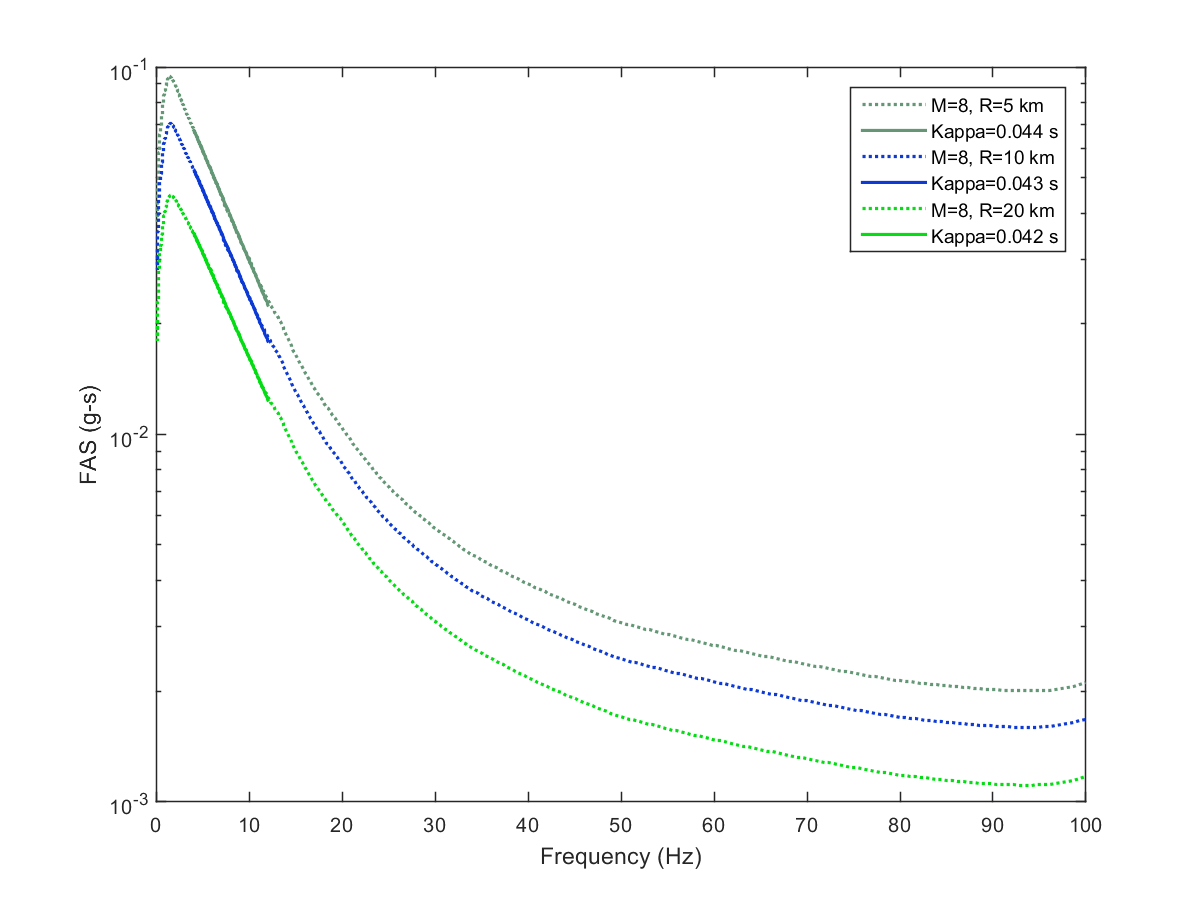

Figure S60. CY14 GMPE and M 8.

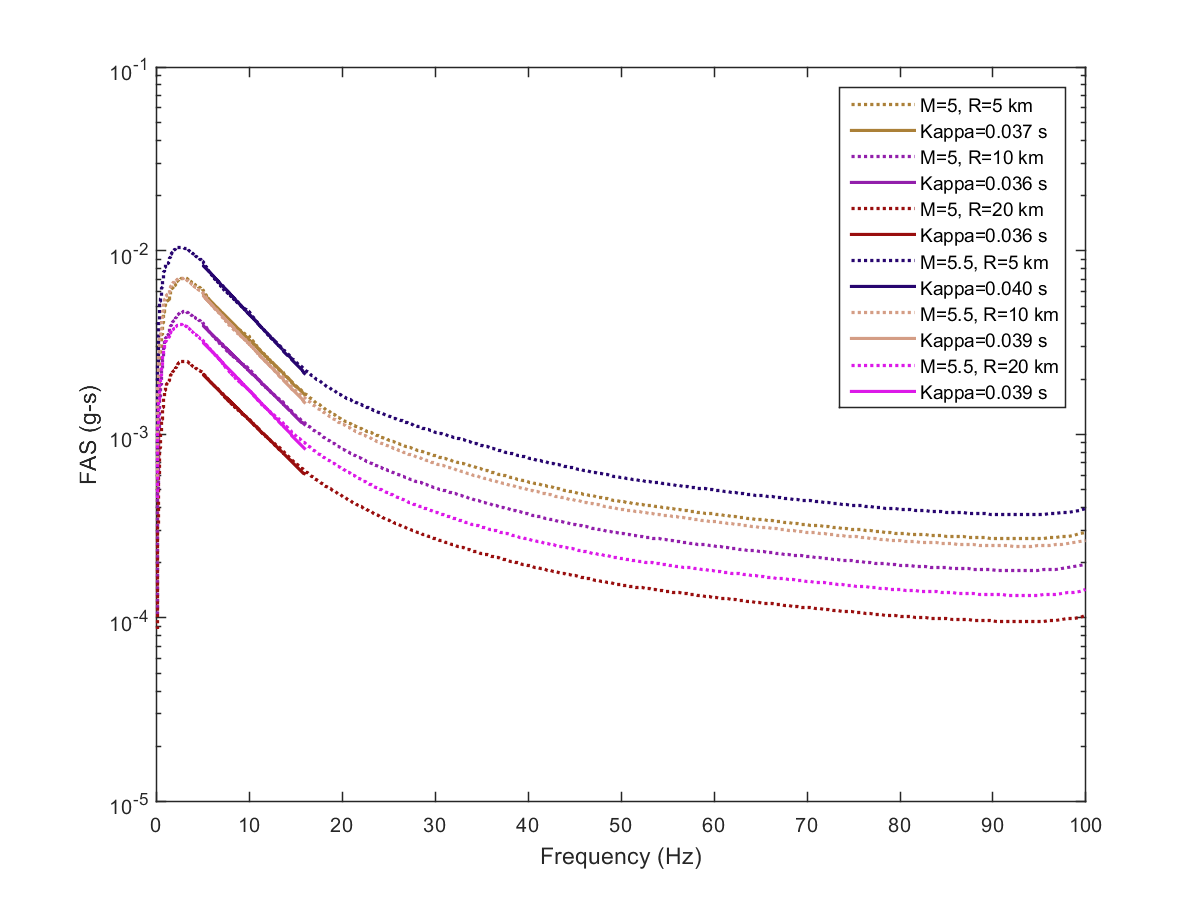

Figure S61. I14 GMPE and M 5 and 5.5.

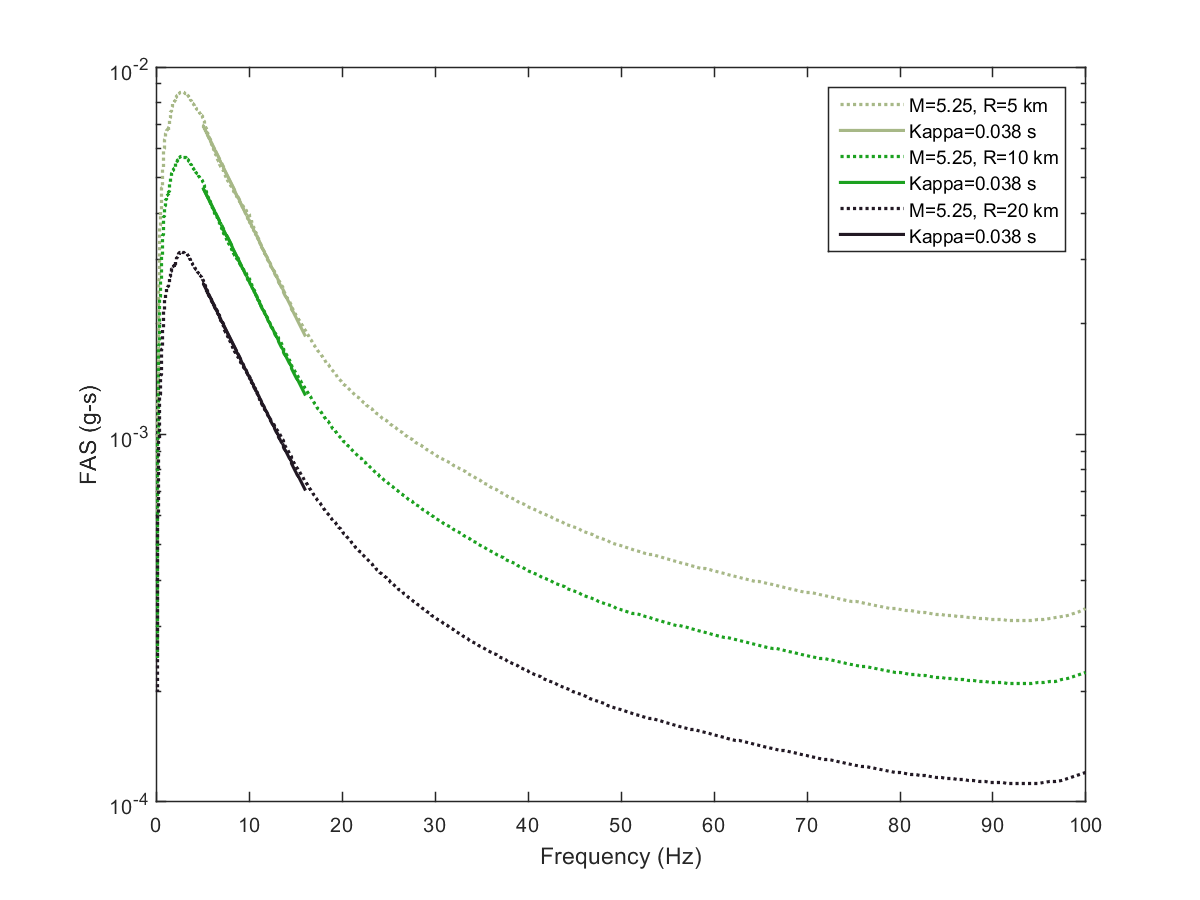

Figure S62. I14 GMPE and M 5.25.

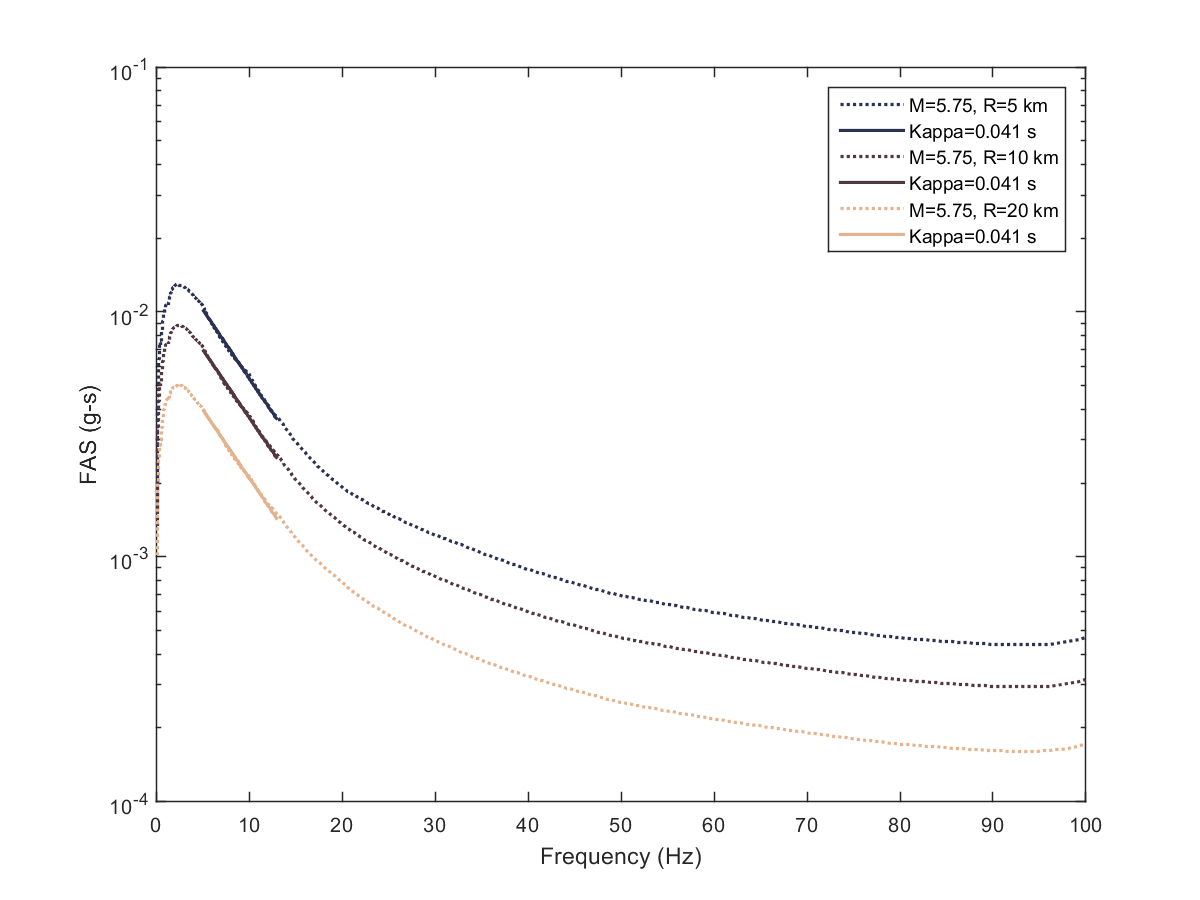

Figure S63. I14 GMPE and M 5.75.
Figure S64. I14 GMPE and M 6 and 6.5.
Figure S65. I14 GMPE and M 6.25.
Figure S66. I14 GMPE and M 6.75.

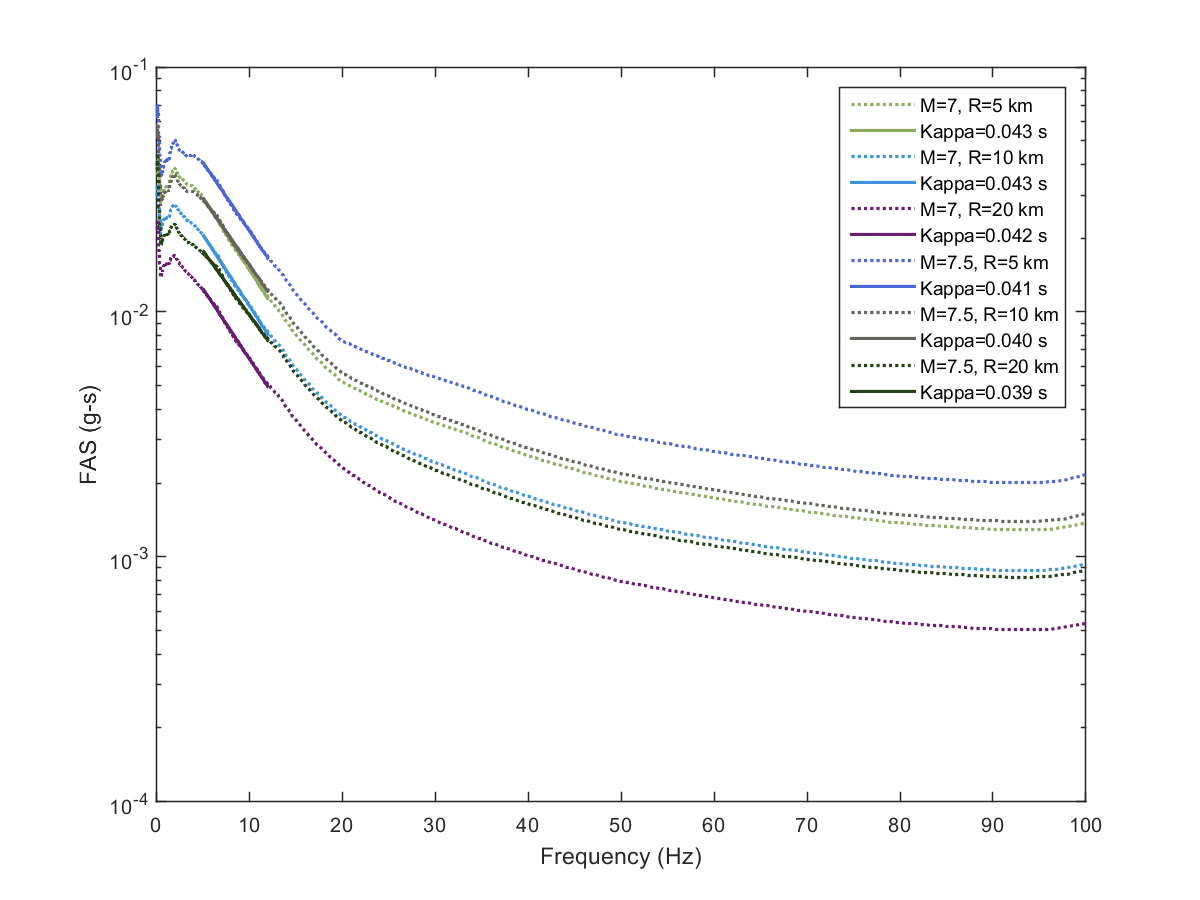

Figure S67. I14 GMPE and M 7 and 7.5.

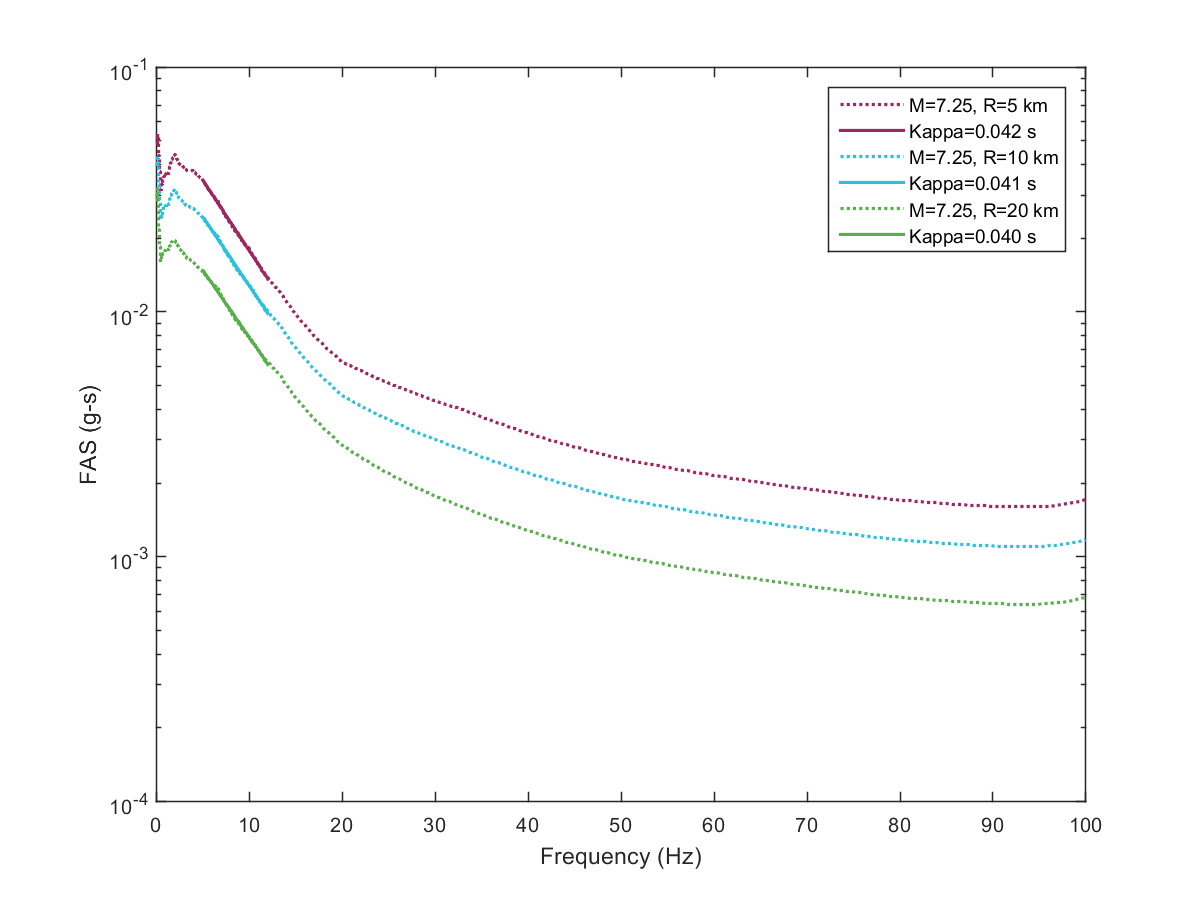

Figure S68. I14 GMPE and M 7.25.

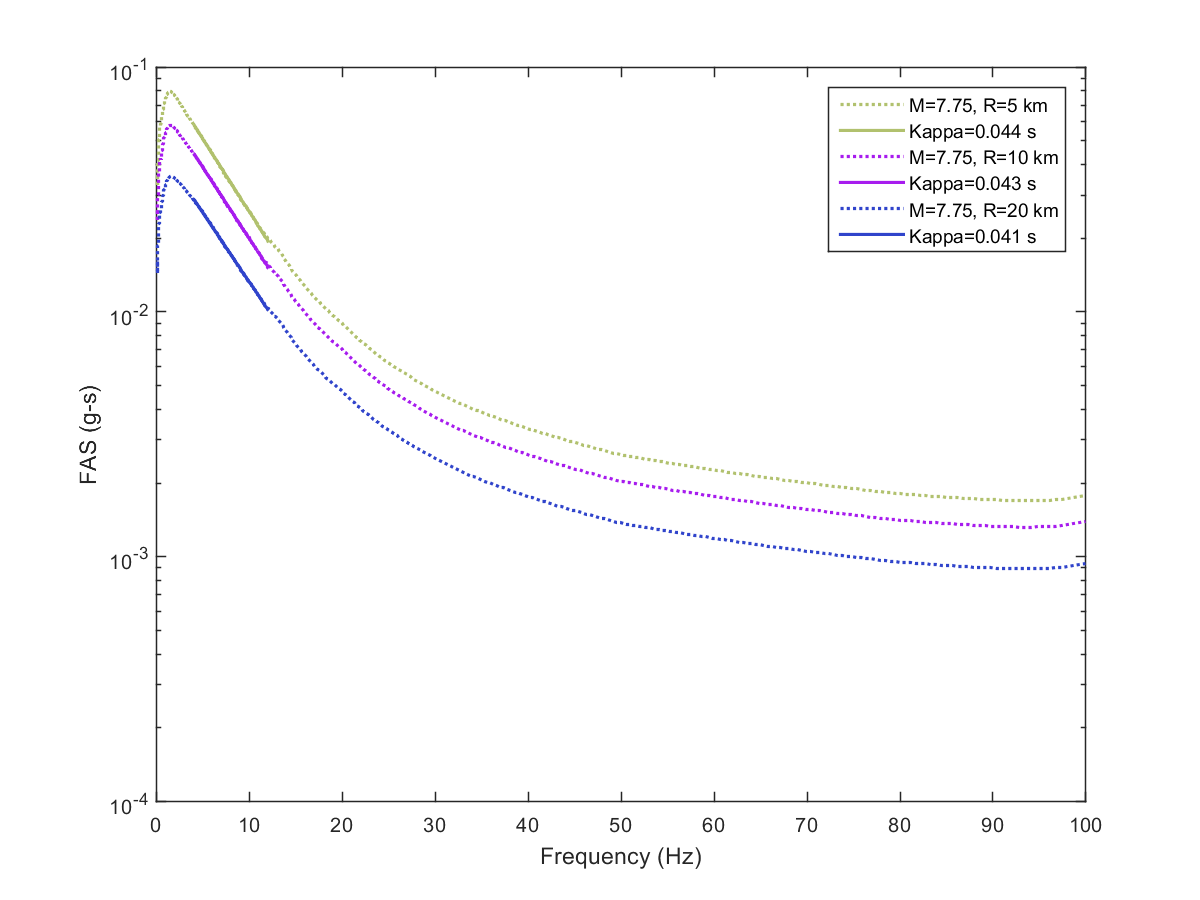

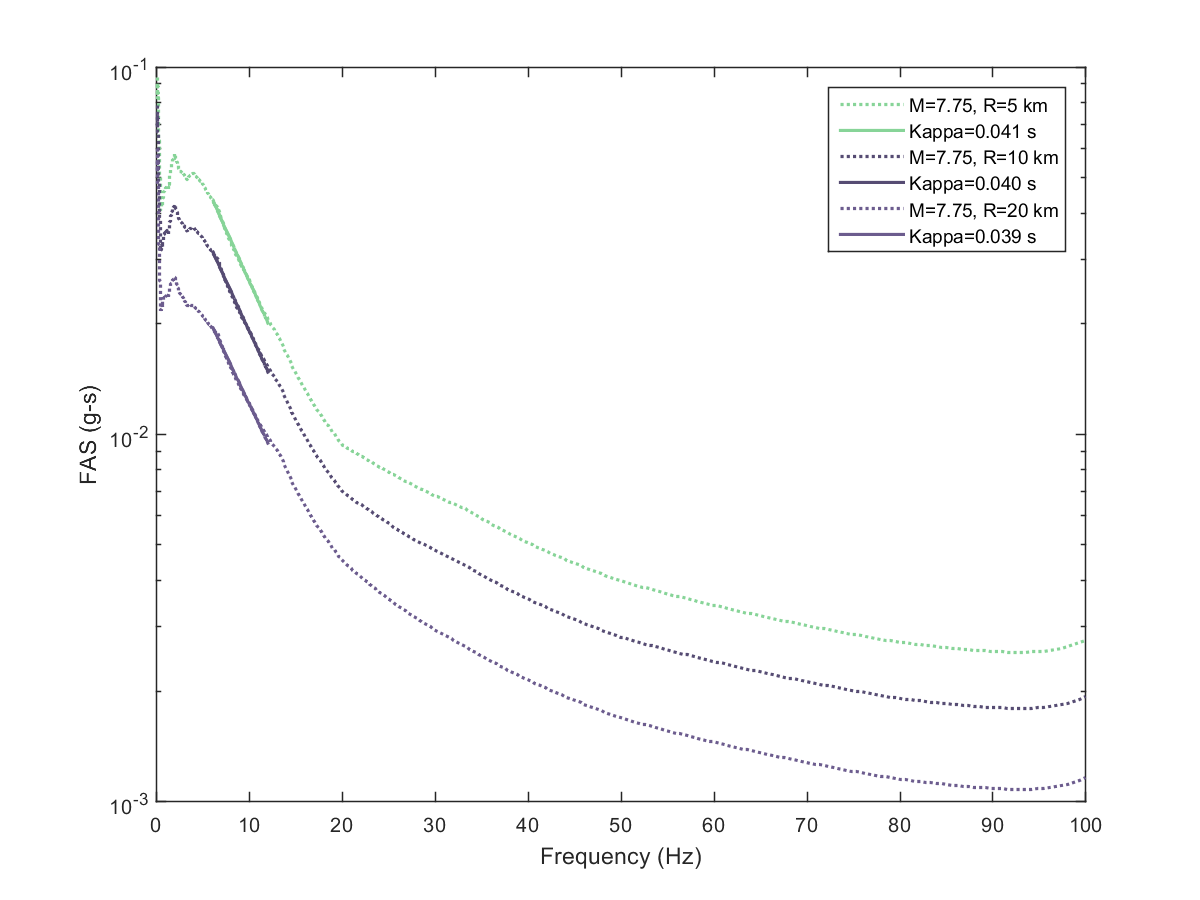

Figure S69. I14 GMPE and M 7.75.

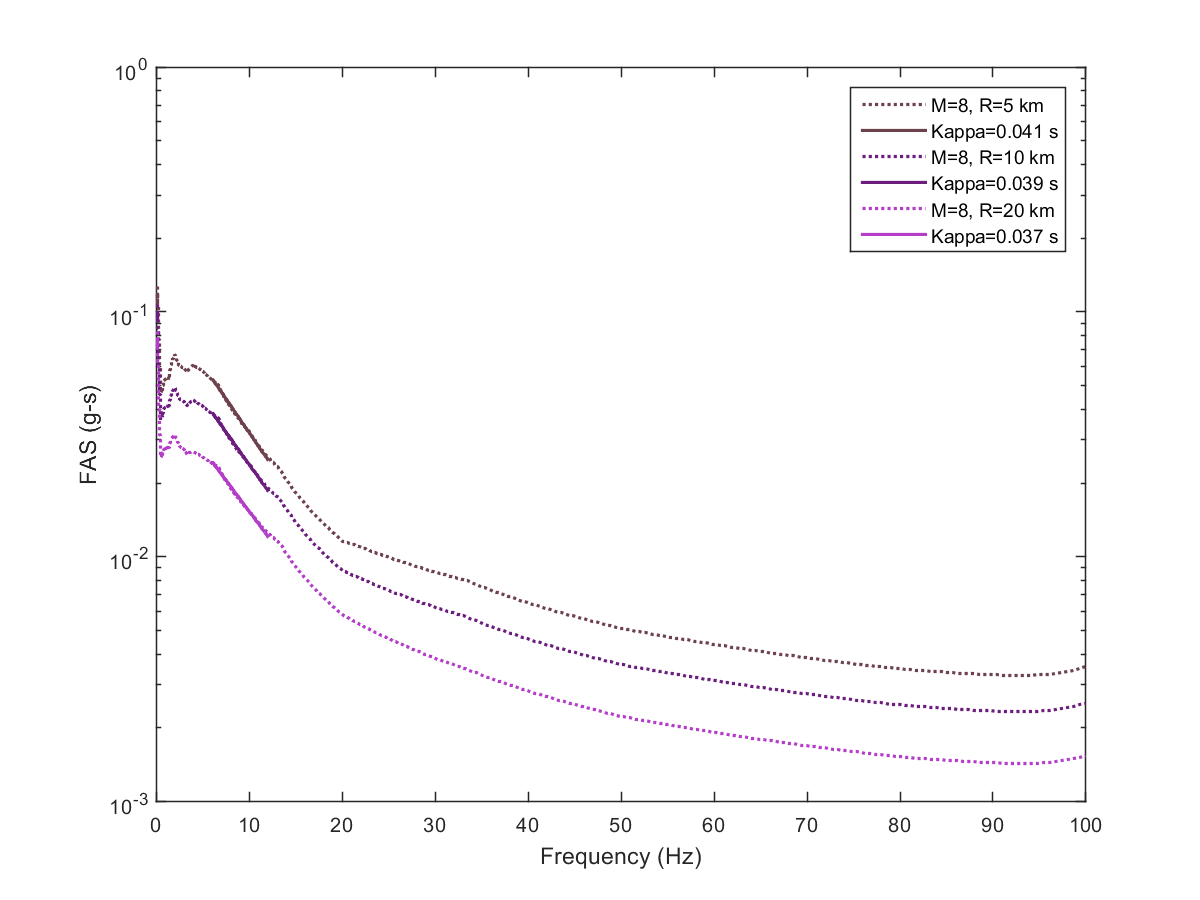

Figure S70. I14 GMPE and M 8.

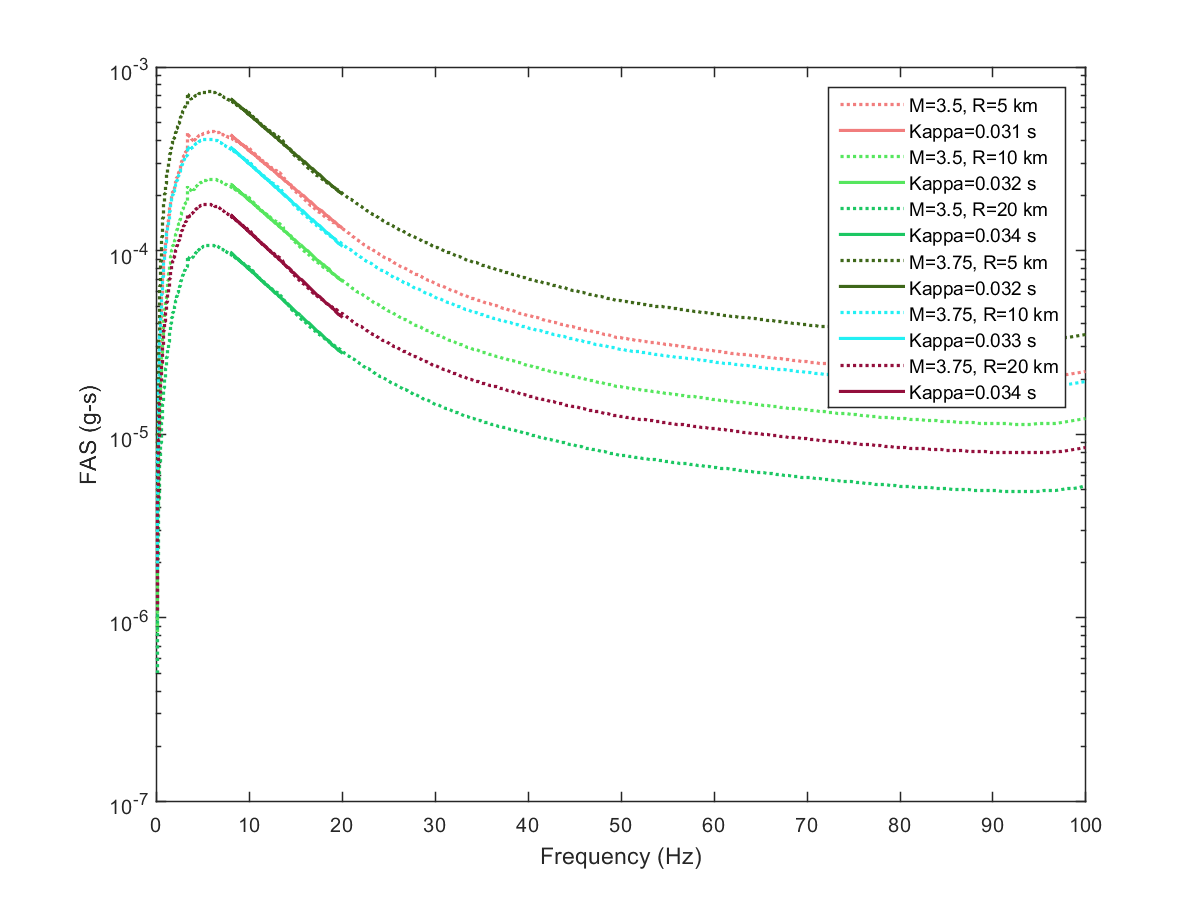

Figure S71. Geometric mean of Next Generation Attenuation-West2 project (NGA-West2) GMPEs (excluding BSSA14) and M 3.5 and 3.75.

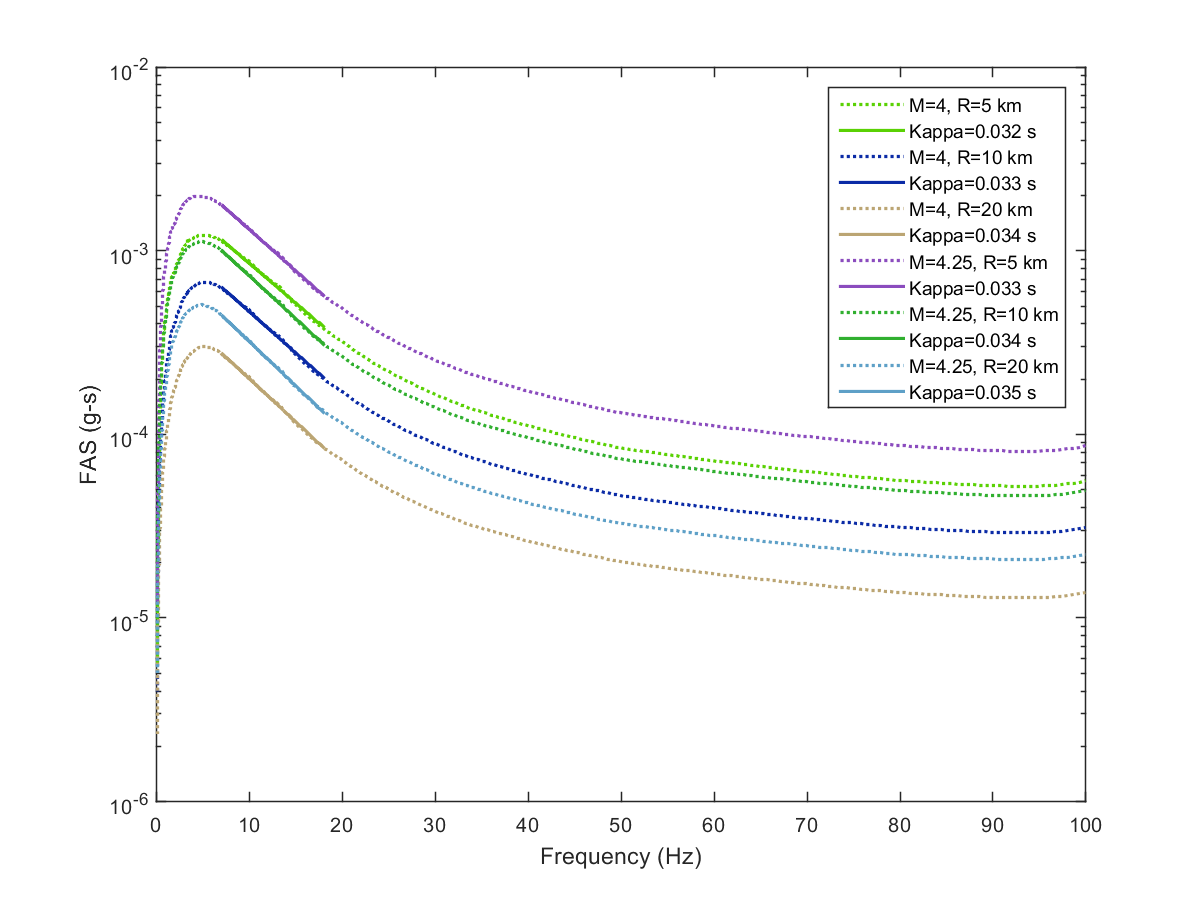

Figure S72. Geometric mean of NGA-West2 GMPEs (excluding BSSA14) and M 4 and 4.25.

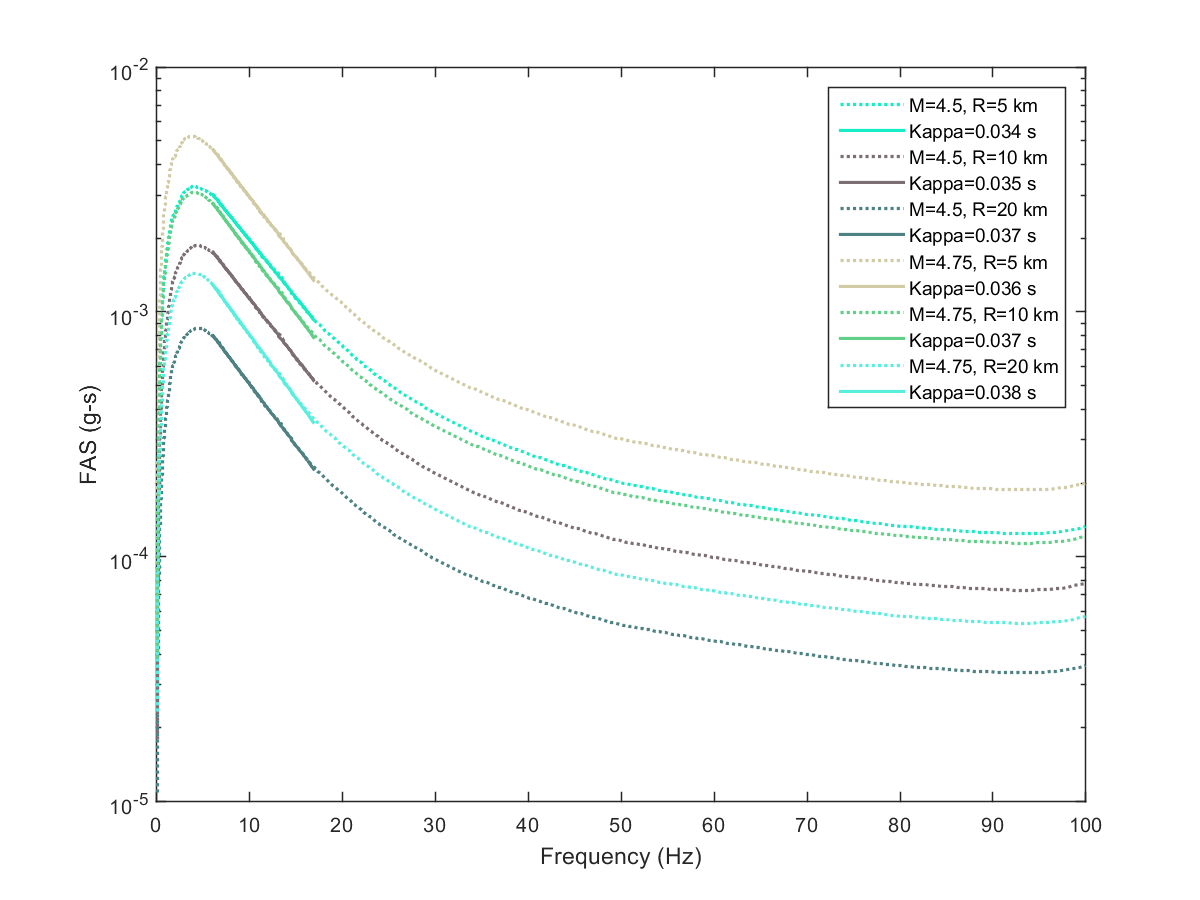

Figure S73. Geometric mean of NGA-West2 GMPEs (excluding BSSA14) and M 4.5 and 4.75.

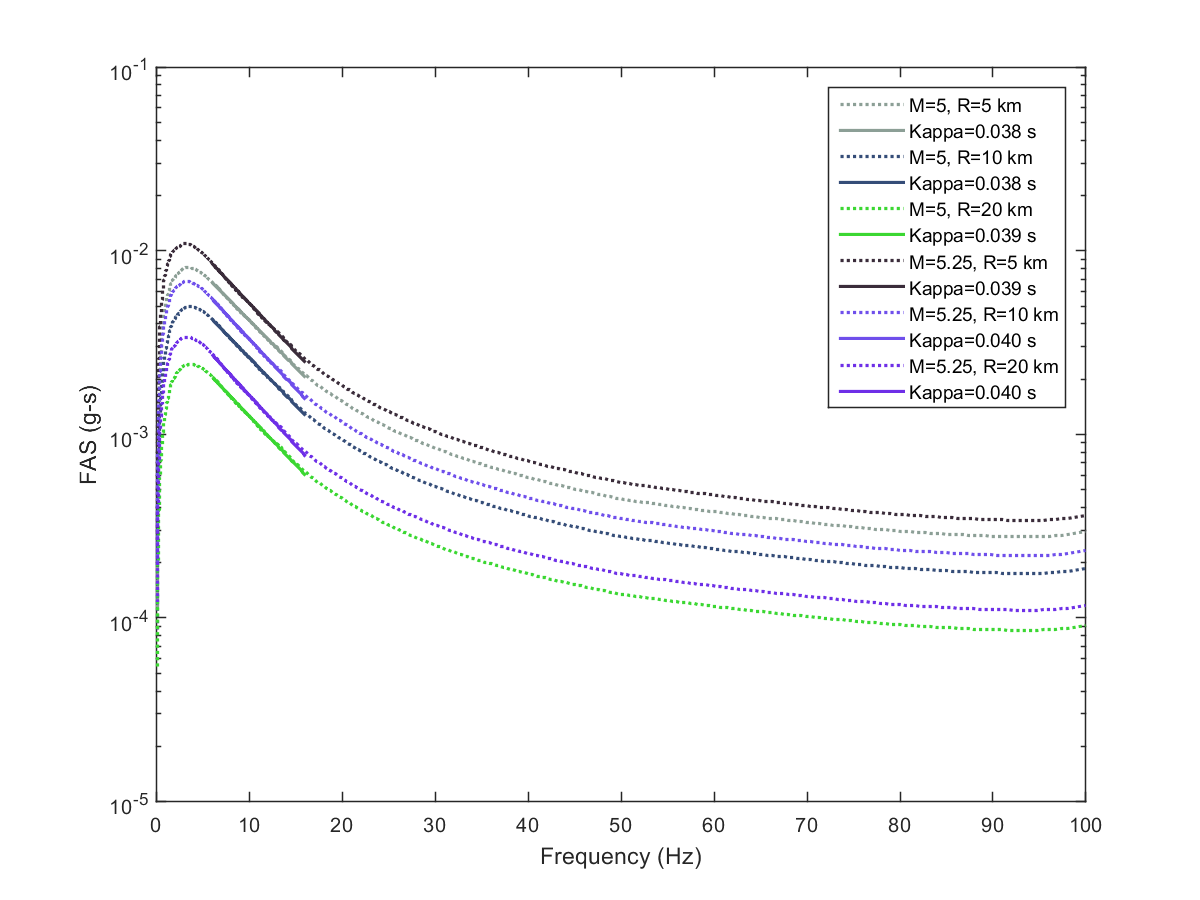

Figure S74. Geometric mean of NGA-West2 GMPEs (excluding BSSA14) and M 5 and 5.25.

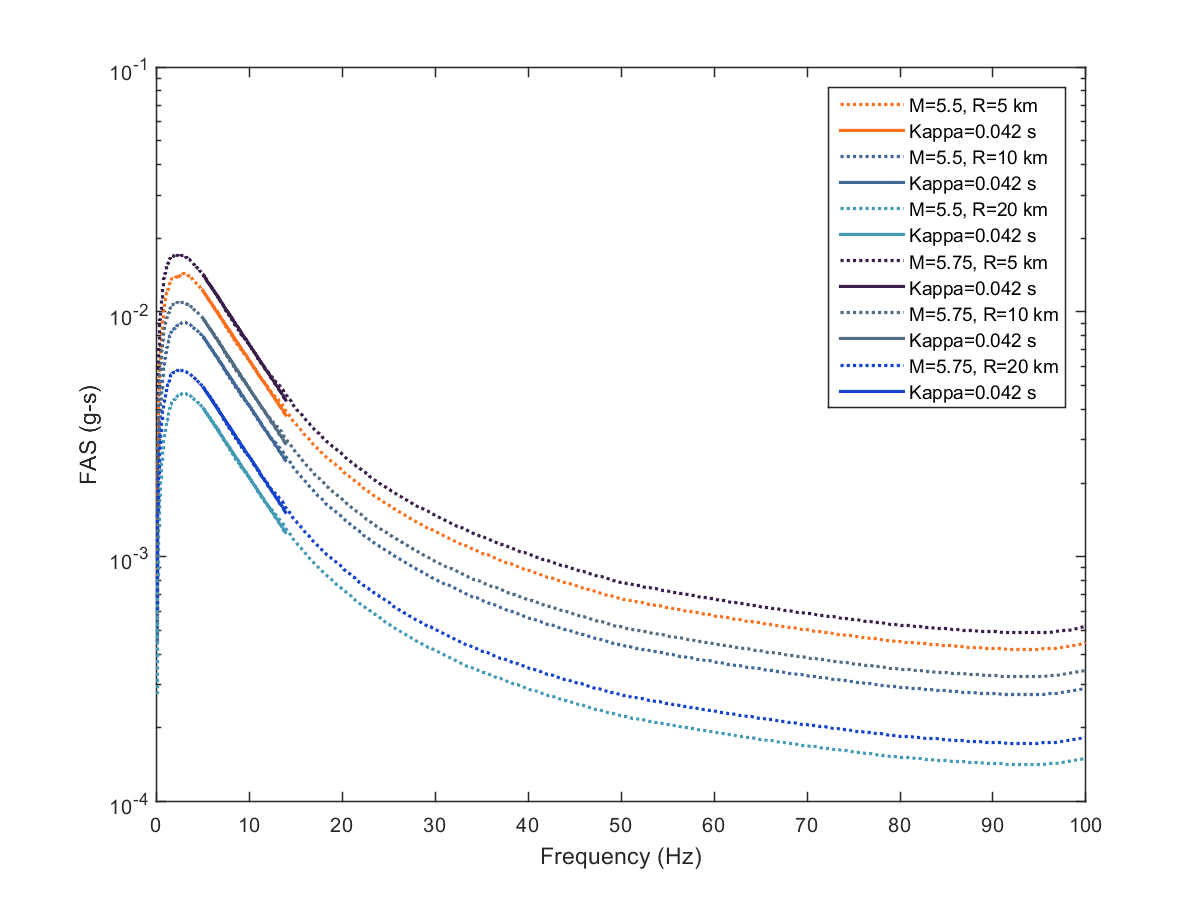

Figure S75. Geometric mean of NGA-West2 GMPEs (excluding BSSA14) and M 5.5 and 5.75.
Figure S76. Geometric mean of NGA-West2 GMPEs (excluding BSSA14) and M 6 and 6.25.

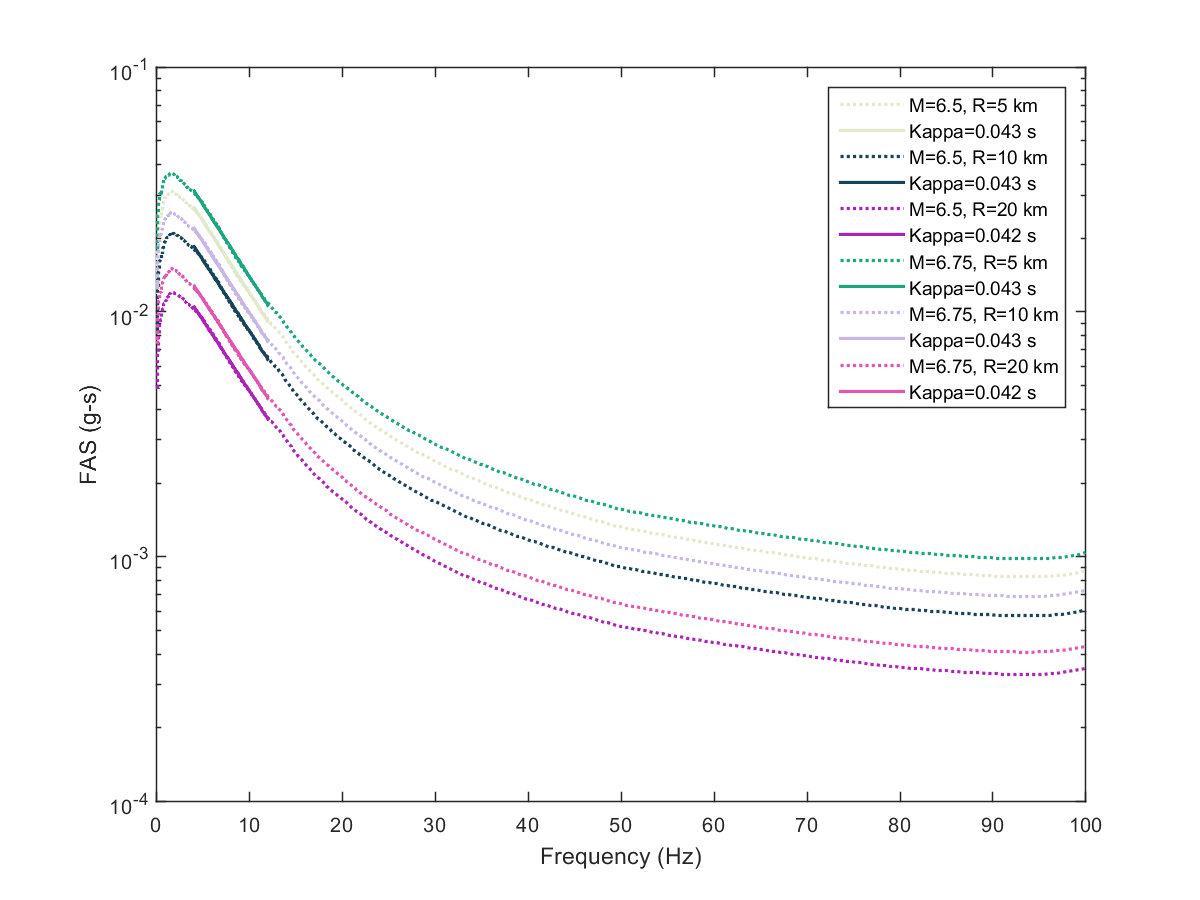

Figure S77. Geometric mean of NGA-West2 GMPEs (excluding BSSA14) and M 6.5 and 6.75.

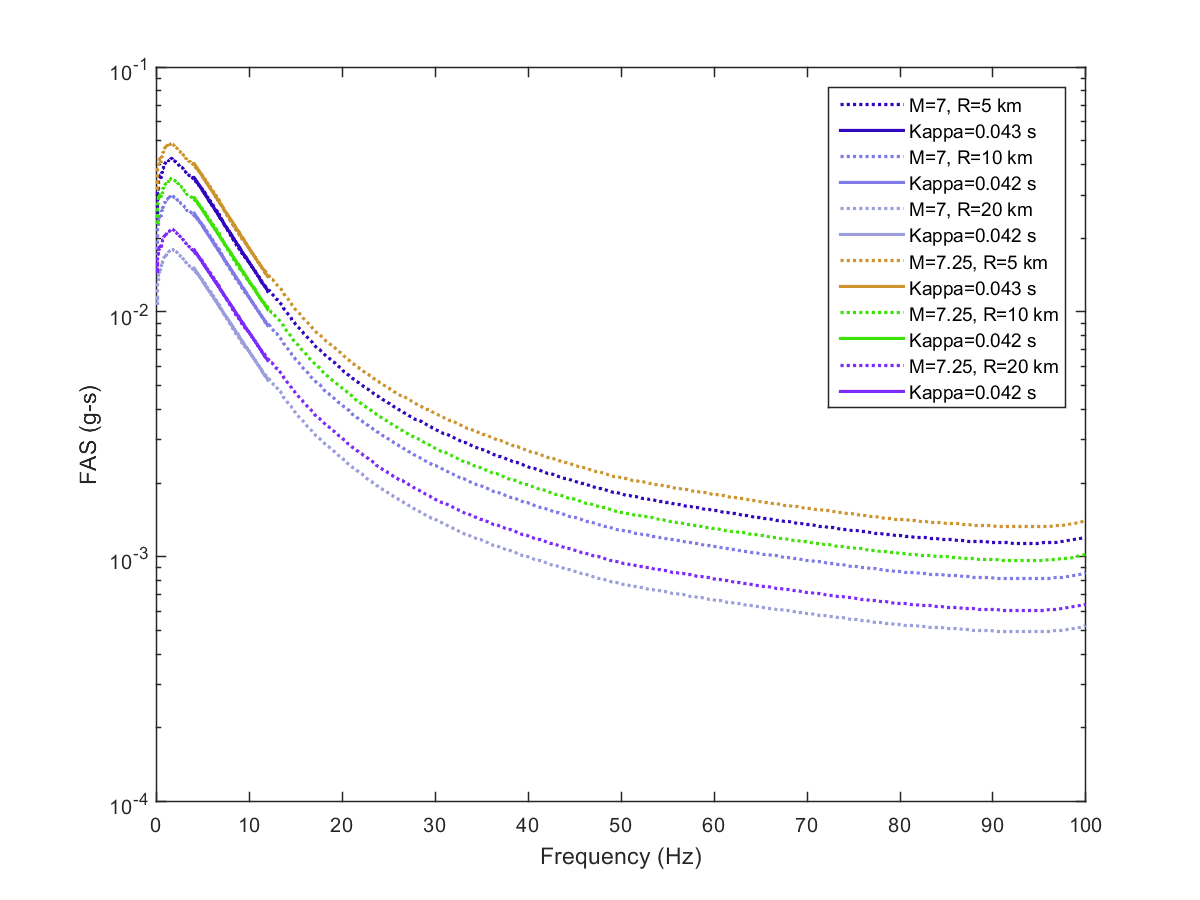

Figure S78. Geometric mean of NGA-West2 GMPEs (excluding BSSA14) and M 7 and 7.25.

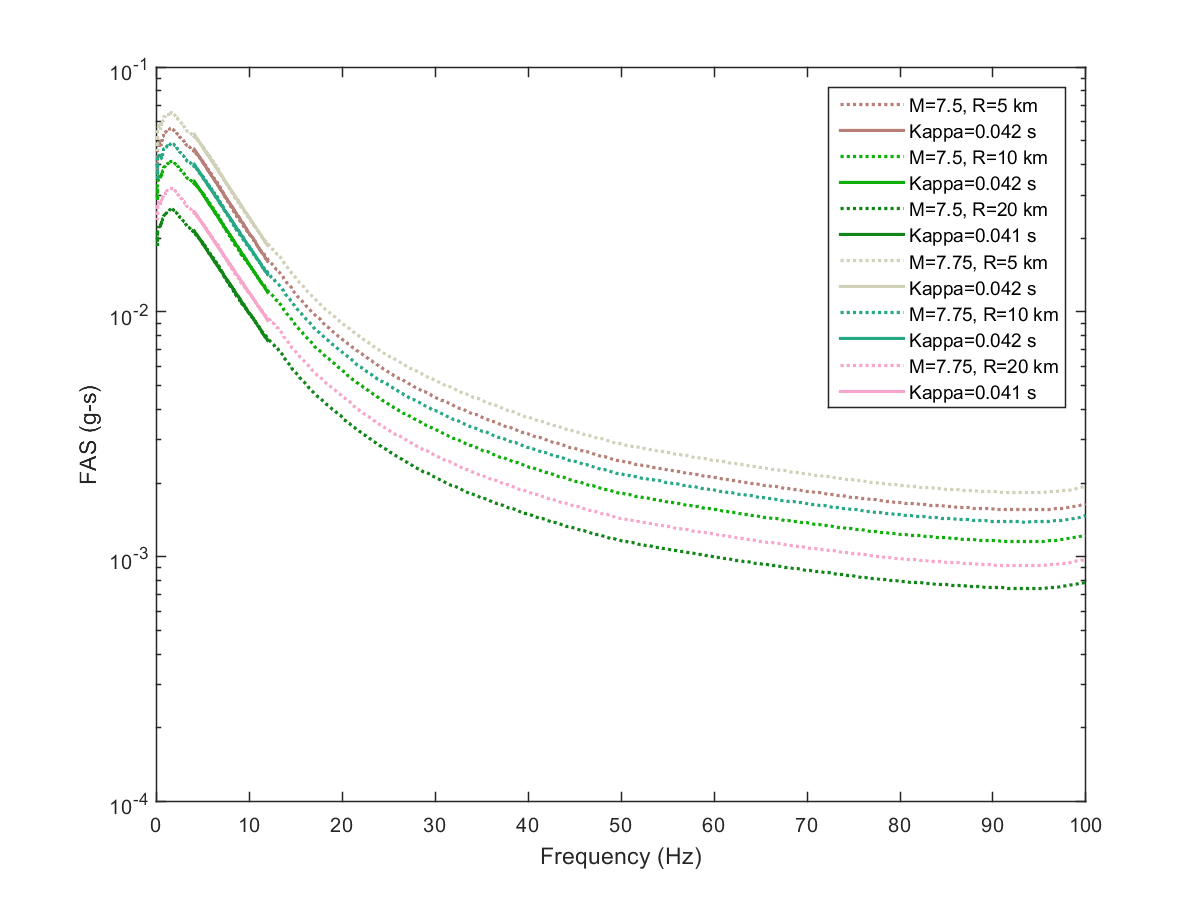

Figure S79. Geometric mean of NGA-West2 GMPEs (excluding BSSA14) and M 7.5 and 7.75.
Figure S80. Geometric mean of NGA-West2 GMPEs (excluding BSSA14) and M 8.

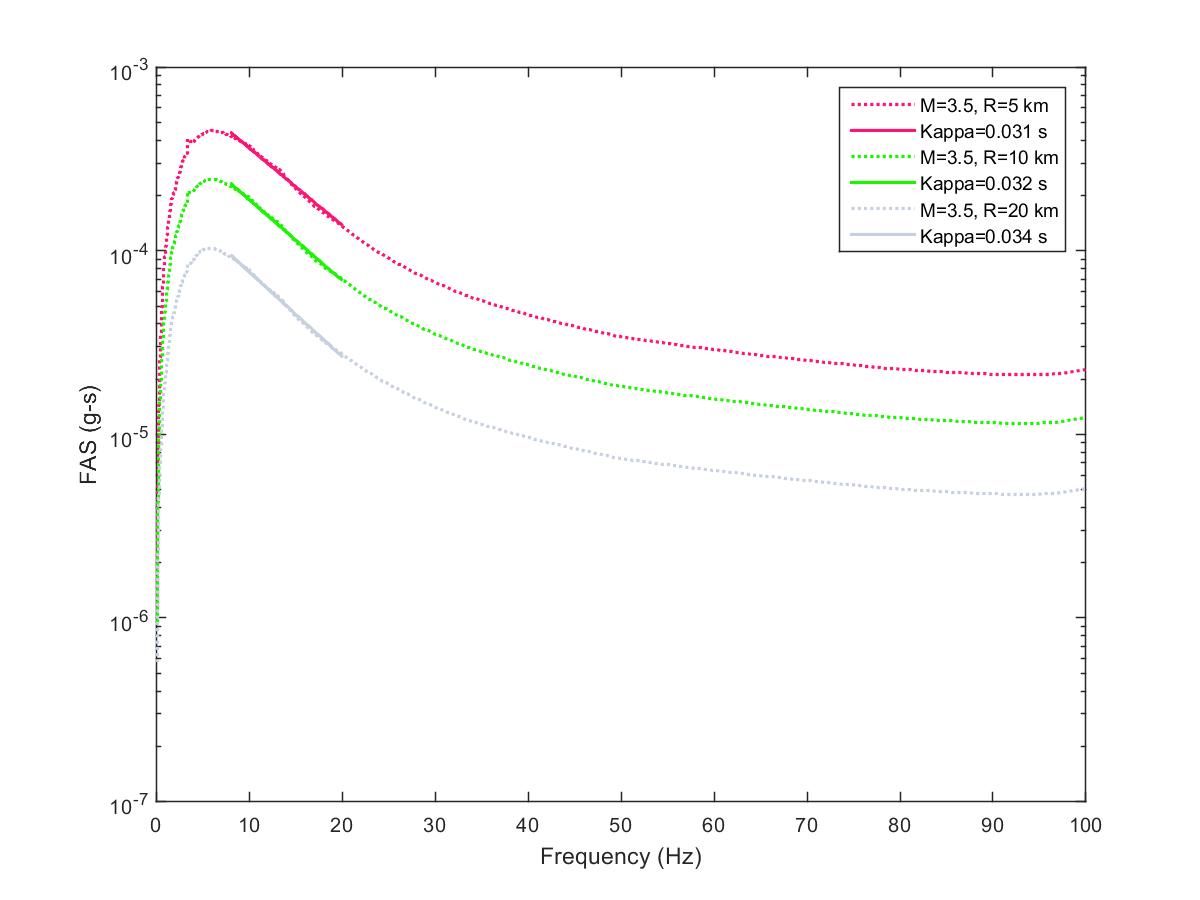

Figure S81. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 3.5.

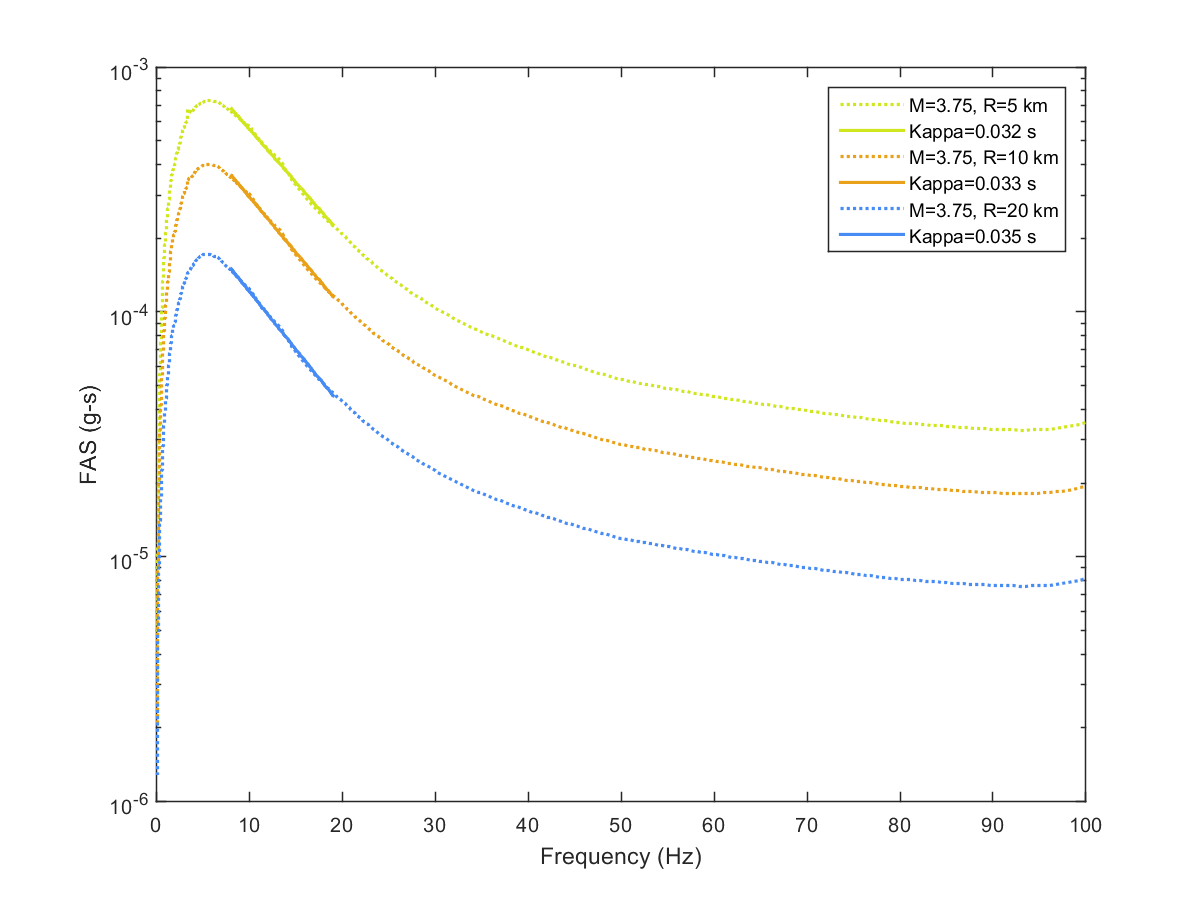

Figure S82. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 3.75.

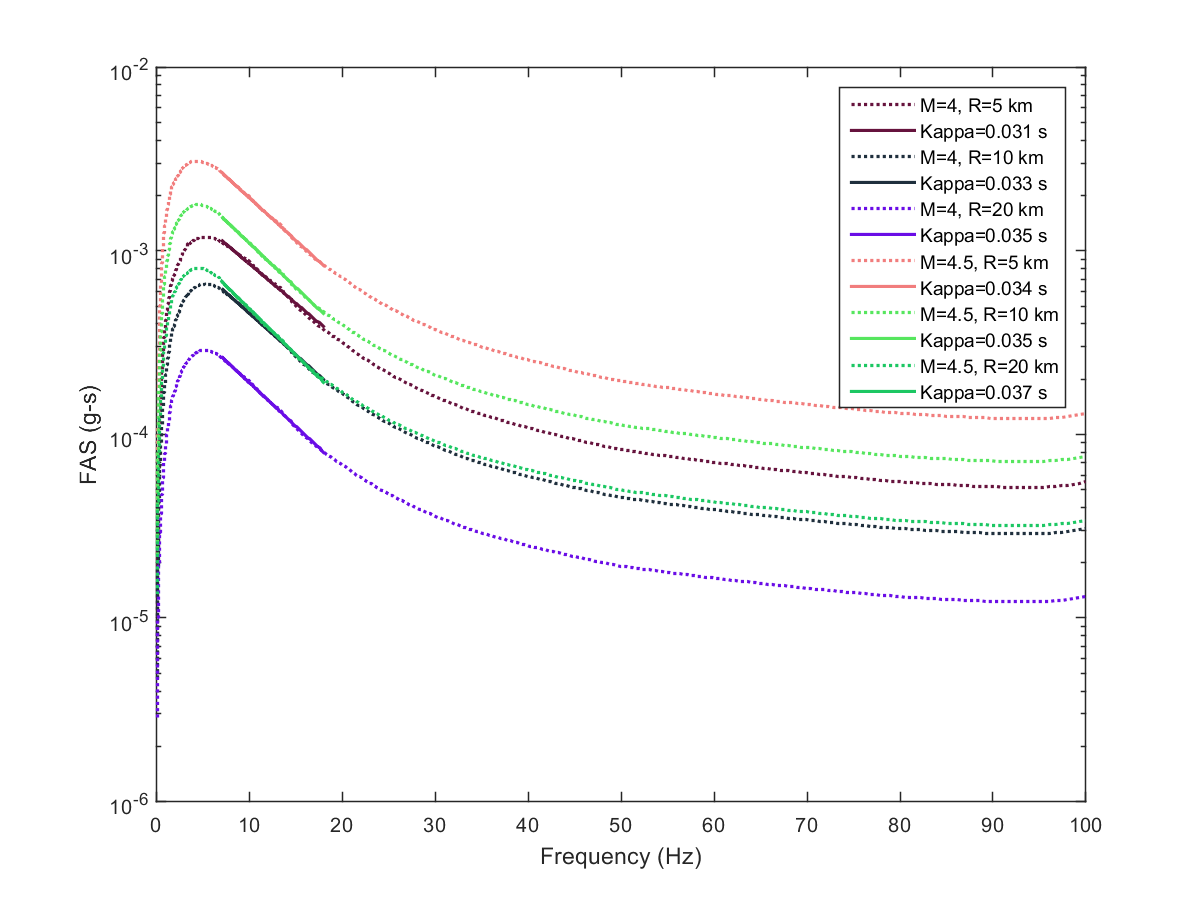

Figure S83. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 4 and 4.5.

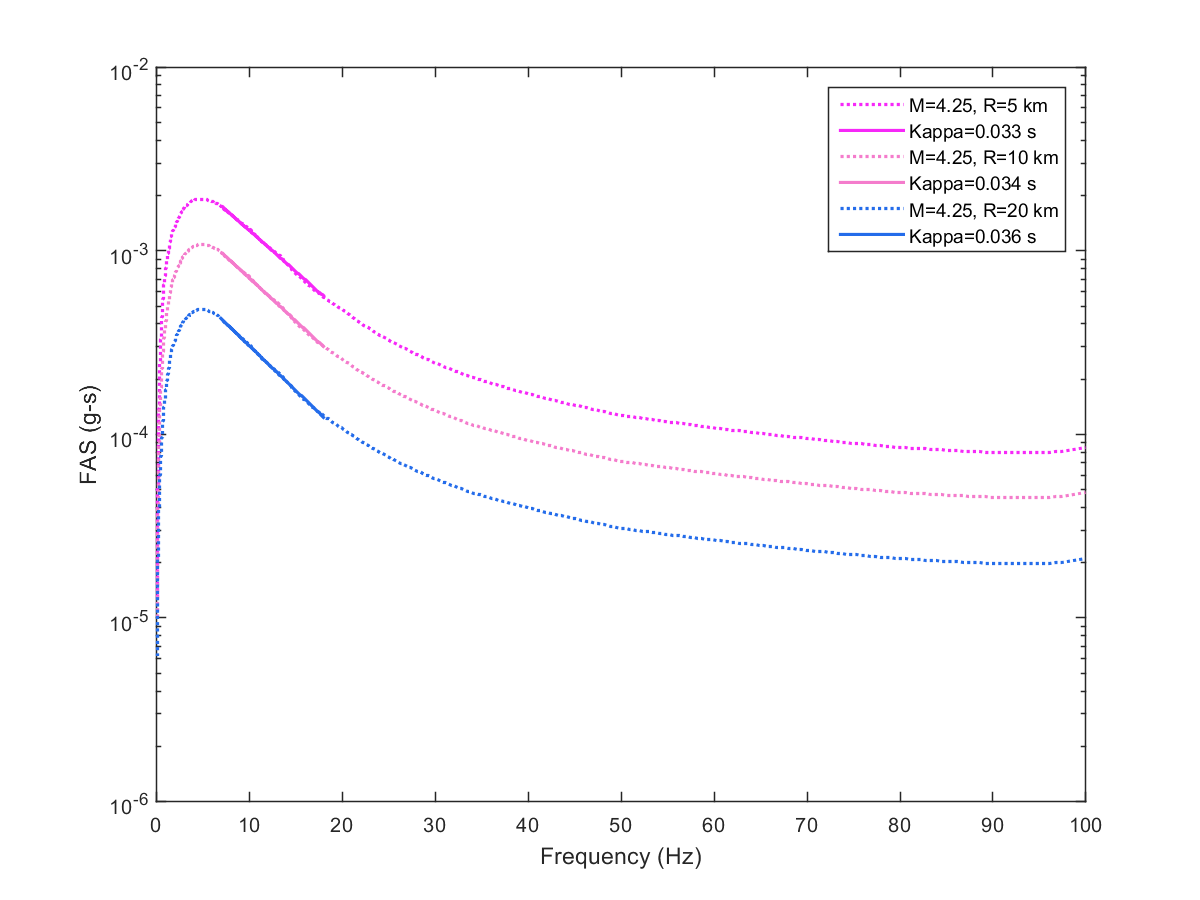

Figure S84. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 4.25.

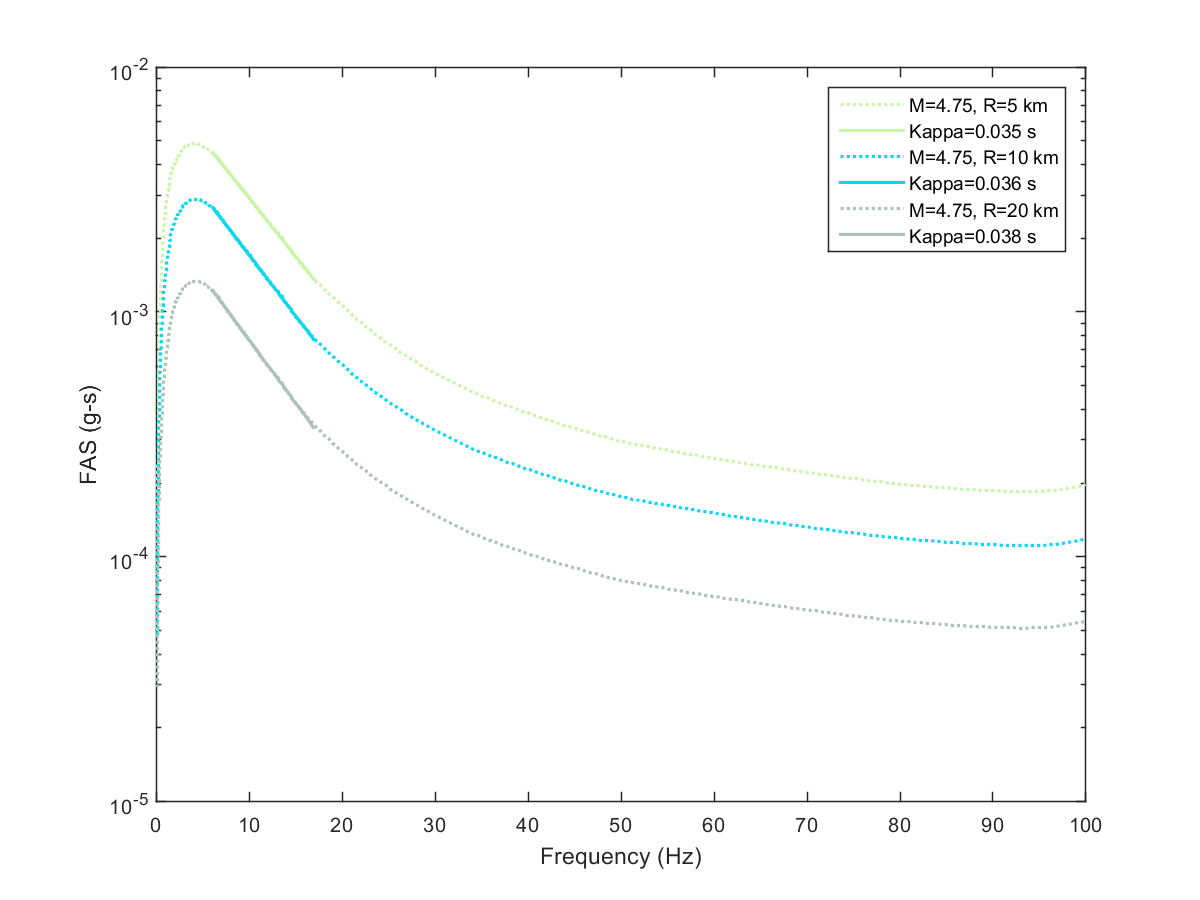

Figure S85. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 4.75.

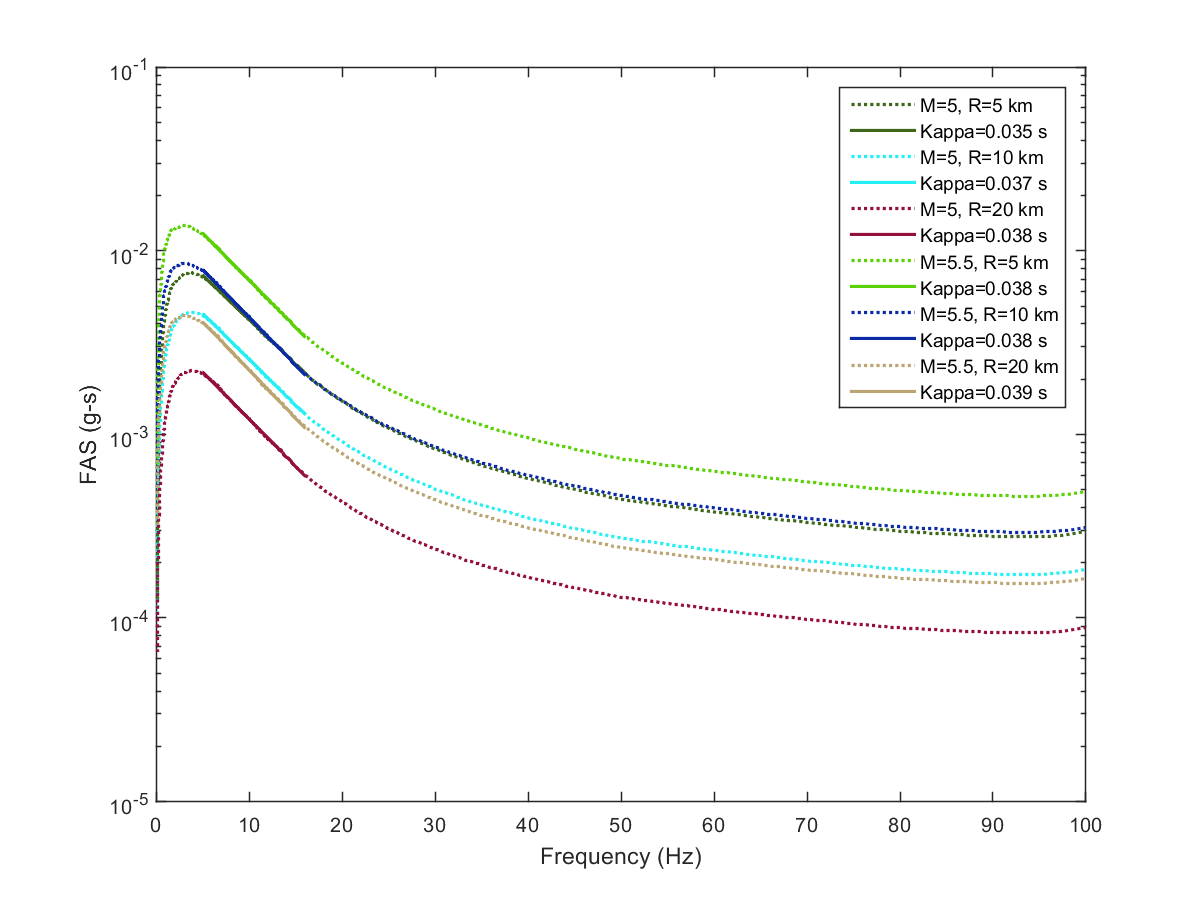

Figure S86. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 5 and 5.5.

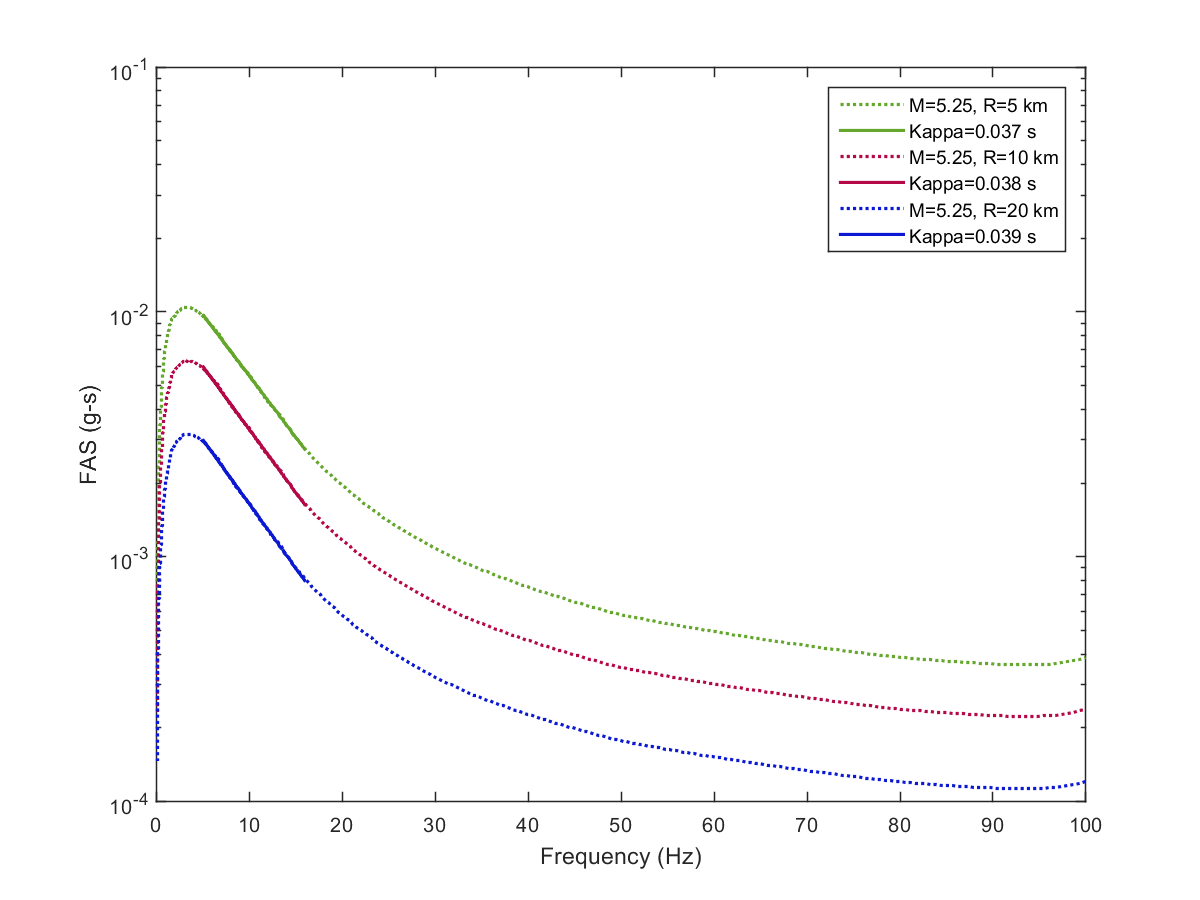

Figure S87. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 5.25.

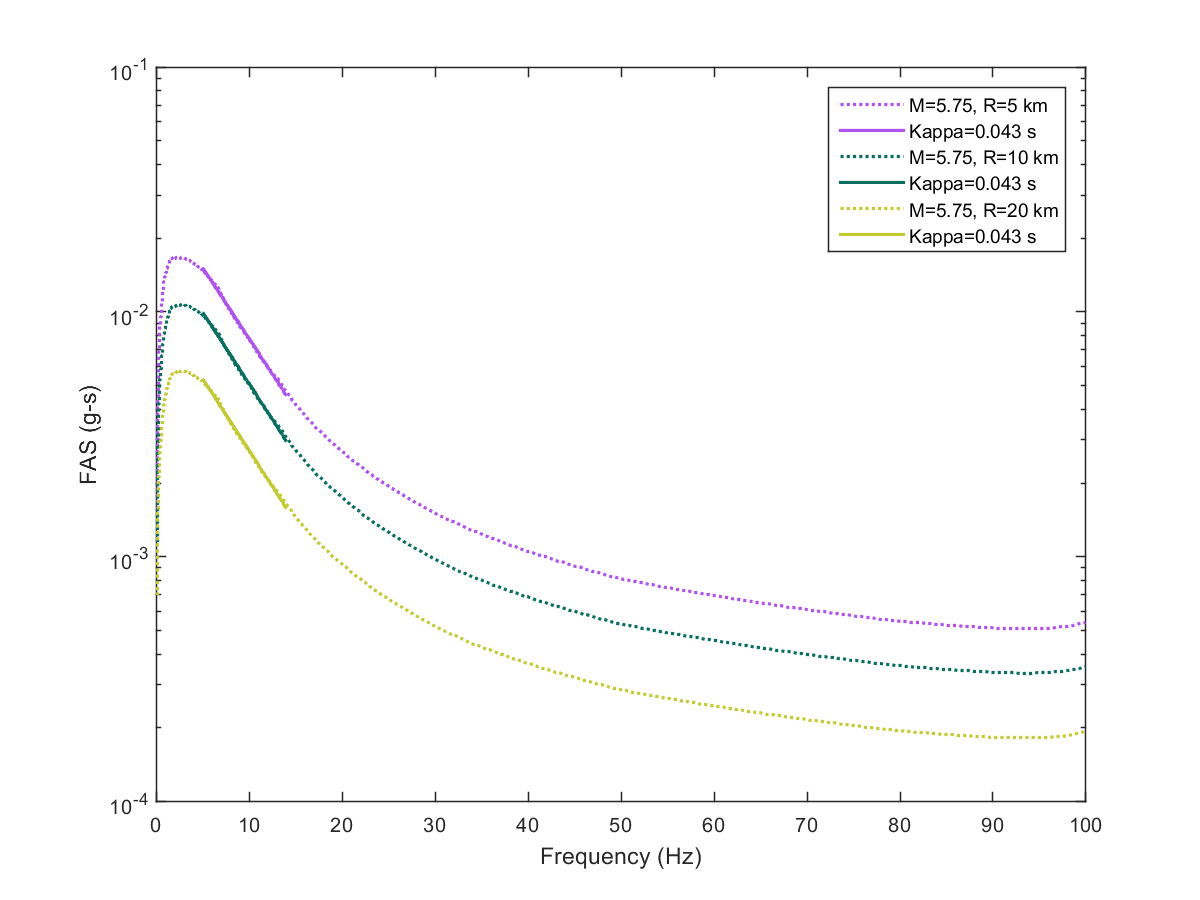

Figure S88. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 5.75.

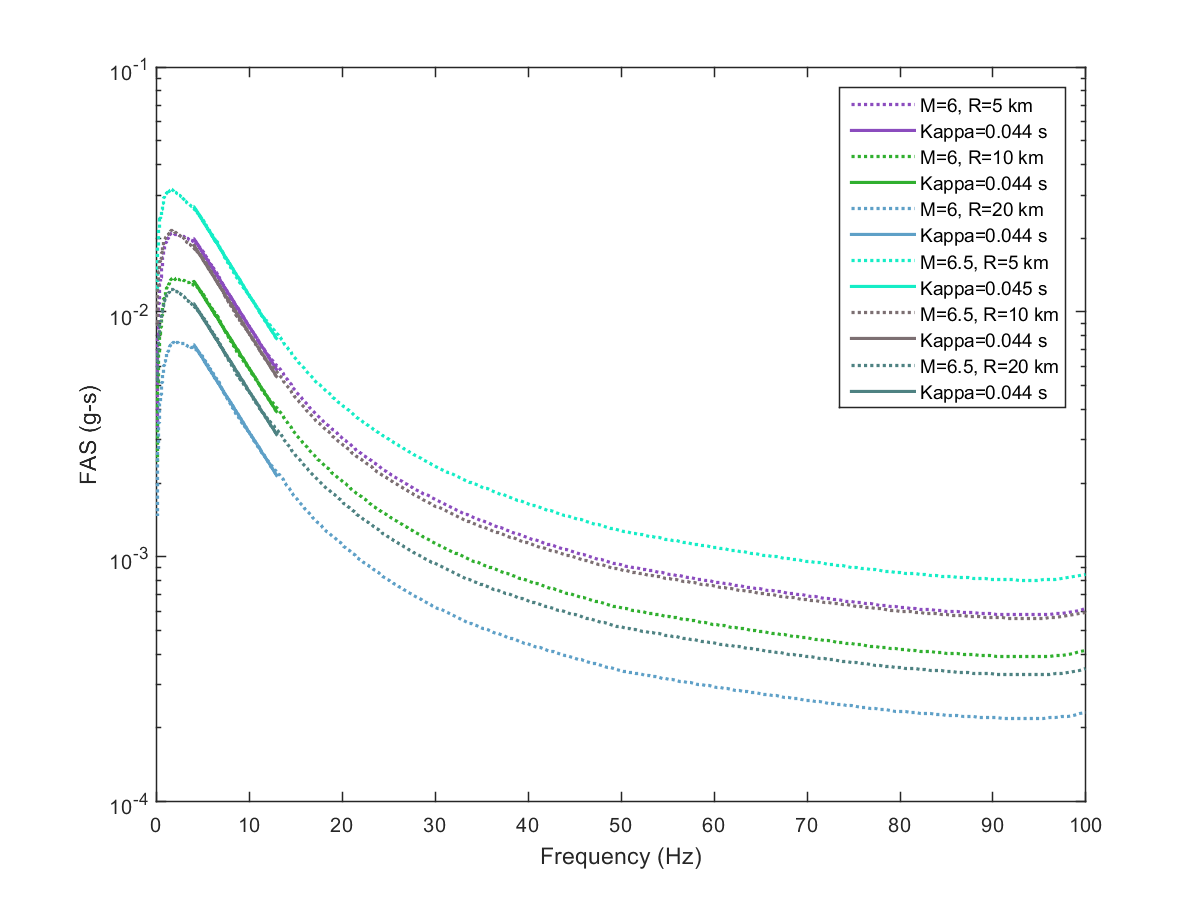

Figure S89. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 6 and 6.5.
Figure S90. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 6.25.
Figure S91. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 6.75.

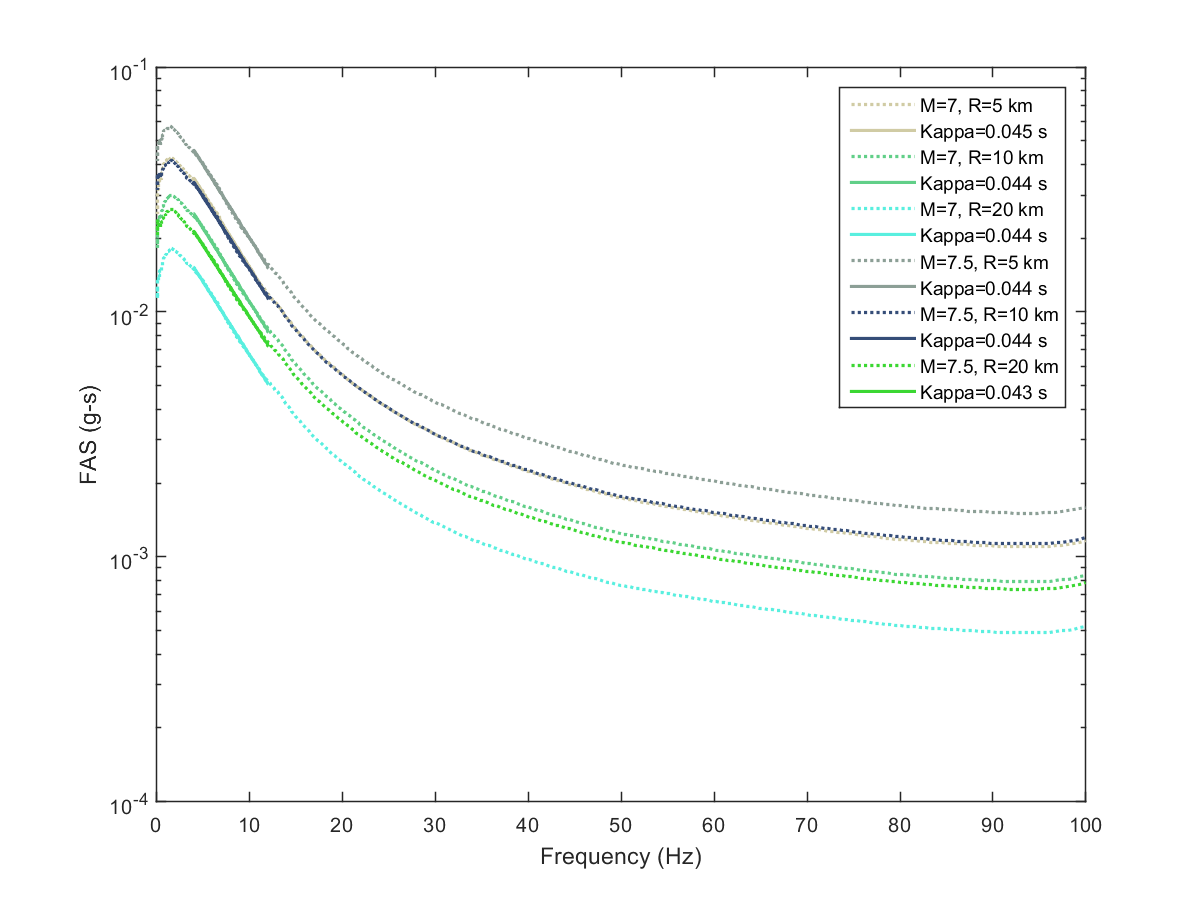

Figure S92. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 7 and 7.5.

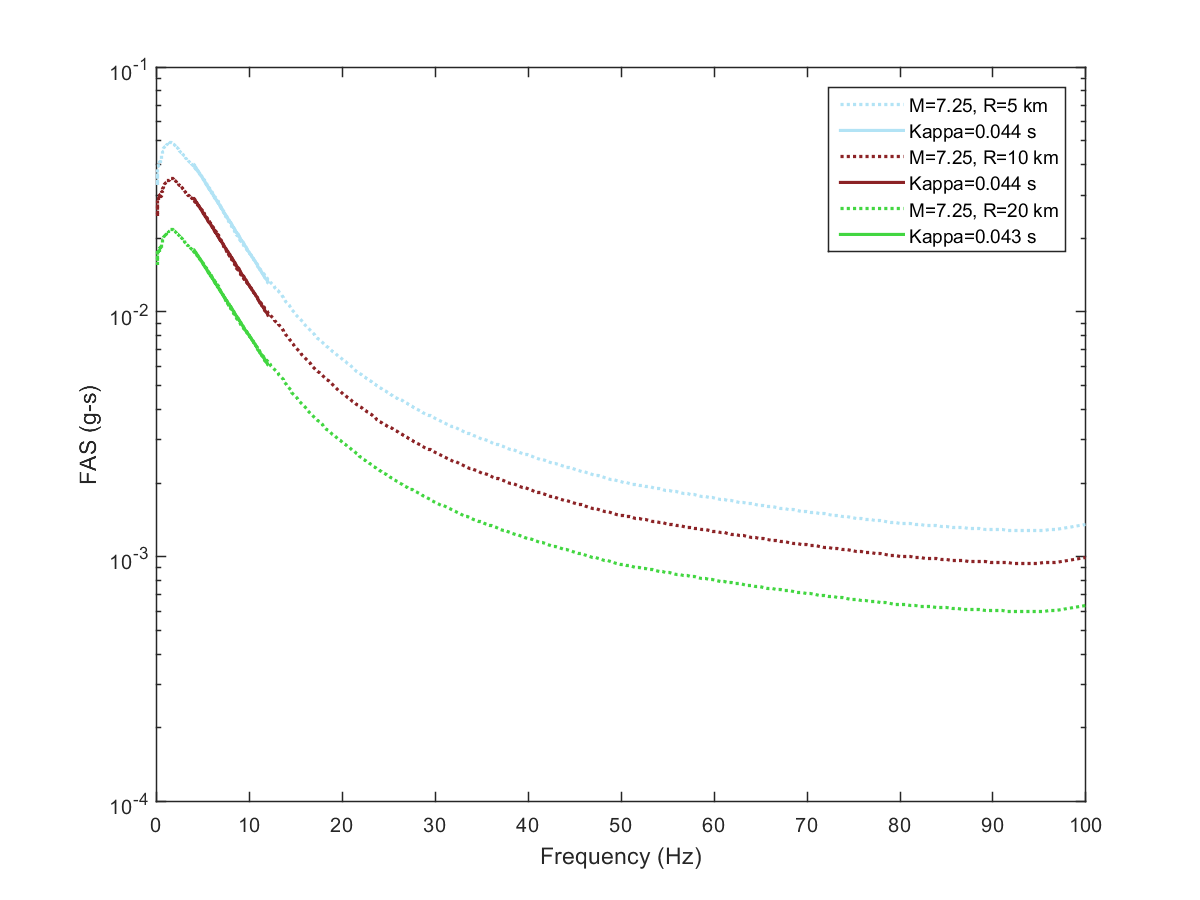

Figure S93. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 7.25.
Figure S94. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 7.75.

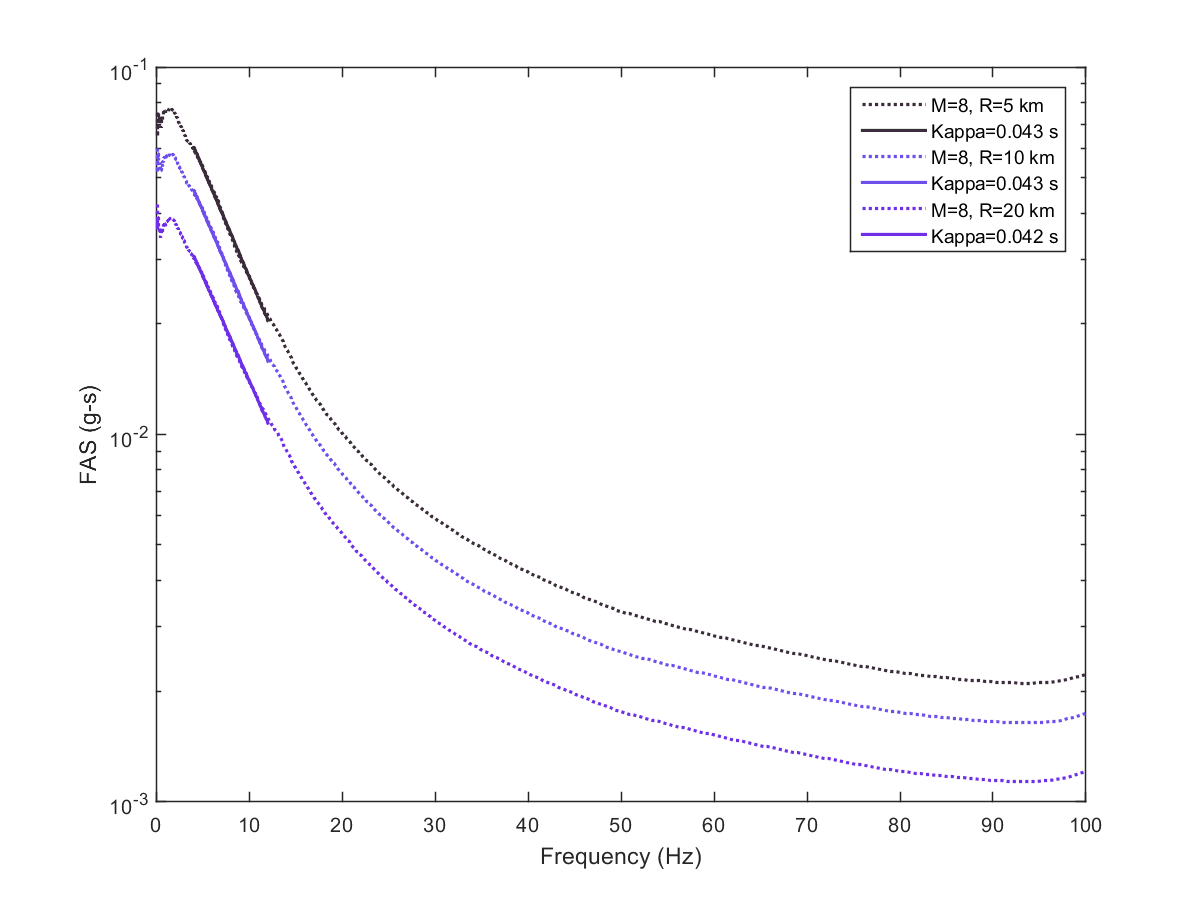

Figure S95. Geometric mean of NGA-West2 GMPEs (including BSSA14) and M 8.
Table S1. Random effects for model 1.
Table S2. Random effects for model 2.
Table S3. Random effects for model 3.
Table S4. Random effects for model 4.
Table S5. κ0 calculated from the weighted geometric mean PSA of the Next Generation Attenuation-West2 project (NGA-West2) GMPEs.
Table S6. κ0 calculated from the weighted geometric mean PSA of the four NGA-West2 GMPEs (excluding BSSA14).
