1992 Cape Mendocino, Bunker Hill FAA

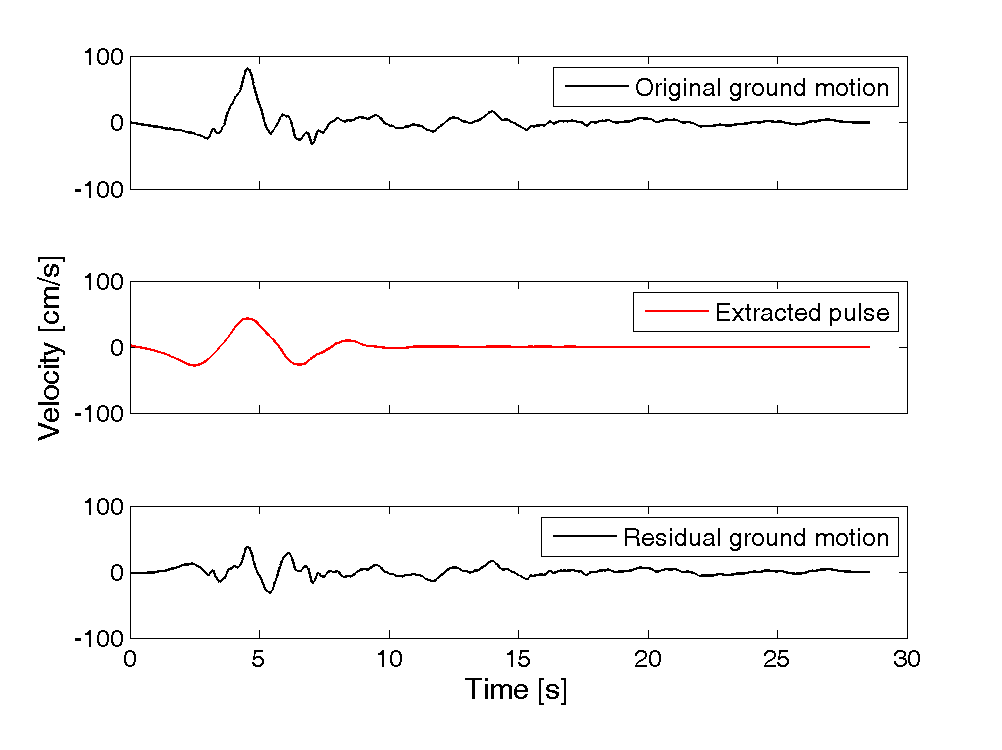

Plots of original ground motion, extracted pulse, and residual ground motion:

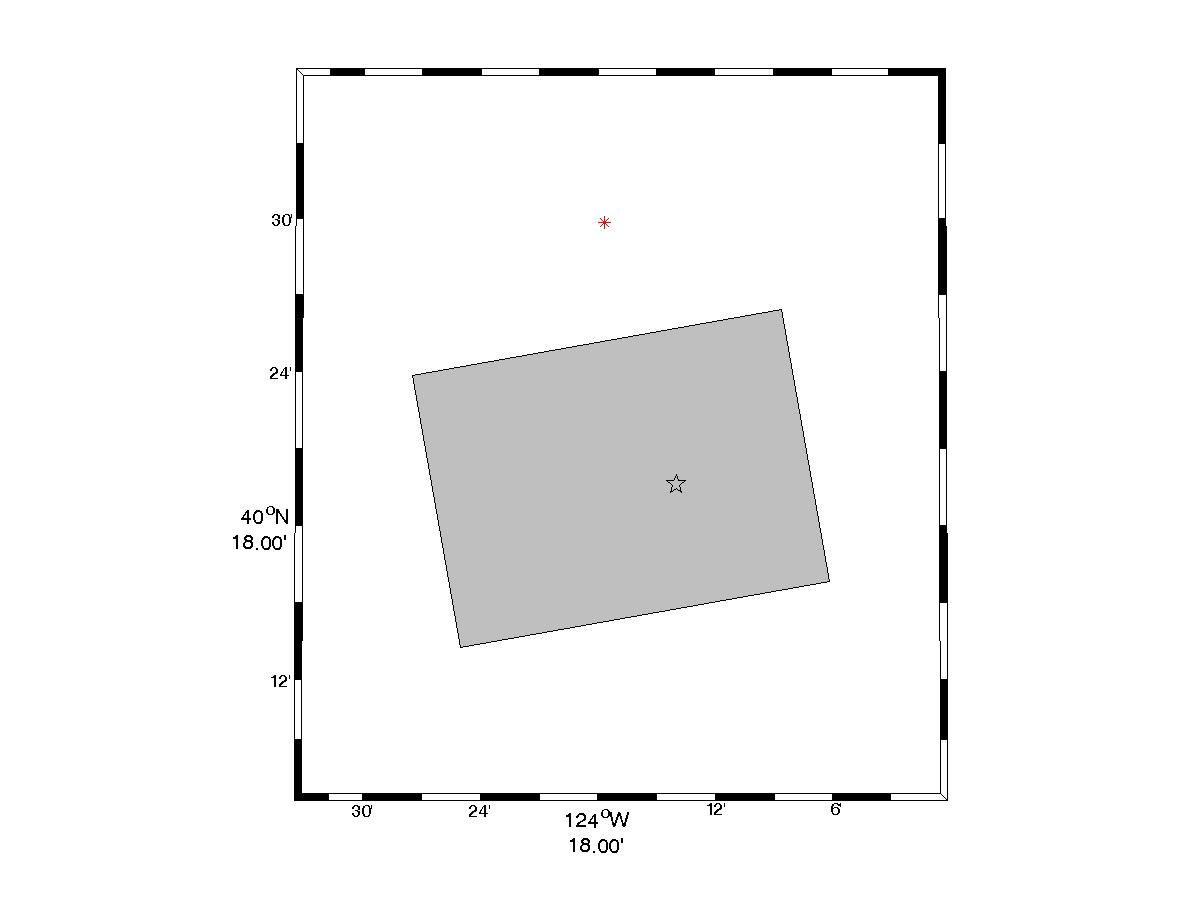

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 3744

Magnitude = 7
Closest Distance = 12.2 km
Hypocentral Distance = 21.86 km
Vs30 = 515 m/s
Mechanism = Reverse-oblique

Tp = 5.36 s
PGV = 80.6 cm/s

Orientation of strongest pulse, relative to north = 245 degrees
Orientation of strongest pulse, relative to fault parallel = 75 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.56
s = 11.12 km
θ = 5.3

Y = 0.15
d = 4.07 km
φ = 65.1

IDP = 1.05
Rowshandel parameter = -0.1


Notes:
