1992 Cape Mendocino, Centerville Beach, Naval Fac

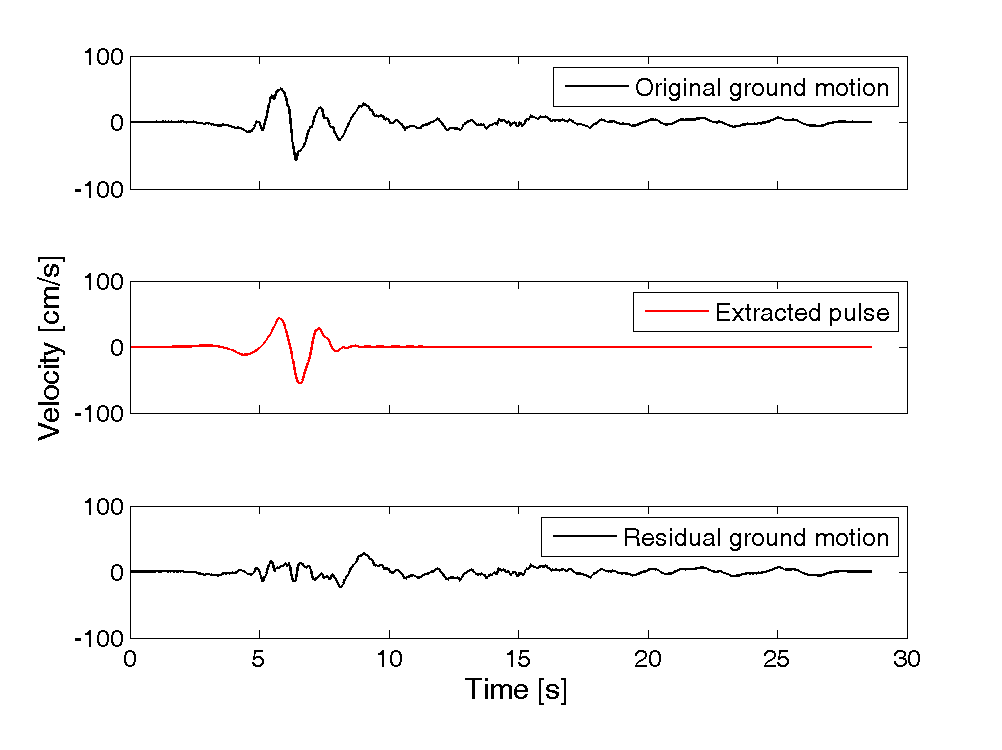

Plots of original ground motion, extracted pulse, and residual ground motion:

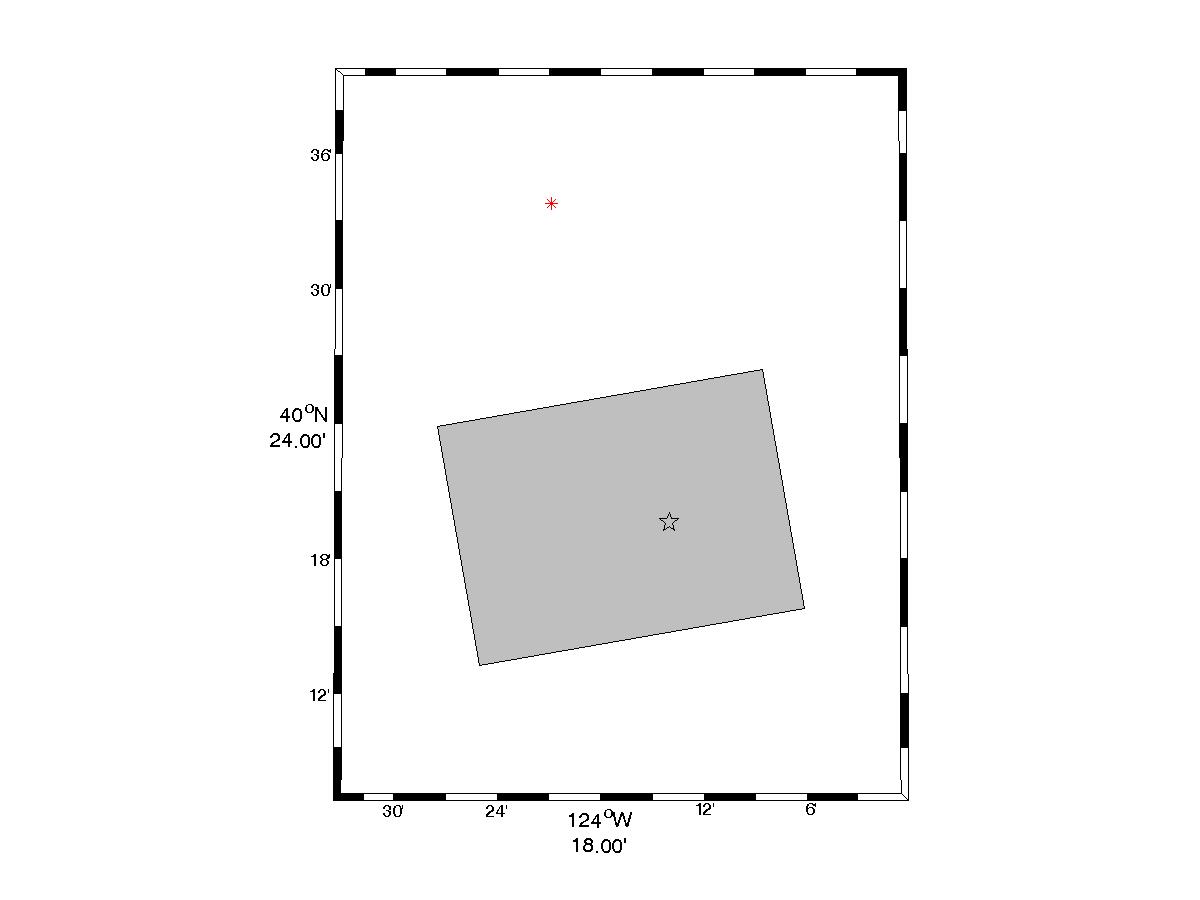

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 3746

Magnitude = 7
Closest Distance = 18.3 km
Hypocentral Distance = 29.58 km
Vs30 = 387 m/s
Mechanism = Reverse-oblique

Tp = 1.97 s
PGV = 57.5 cm/s

Orientation of strongest pulse, relative to north = 225 degrees
Orientation of strongest pulse, relative to fault parallel = 55 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.56
s = 11.12 km
θ = 10.3

Y = 0.26
d = 7.16 km
φ = 48.2

IDP = 0.78
Rowshandel parameter = 0.01


Notes:
